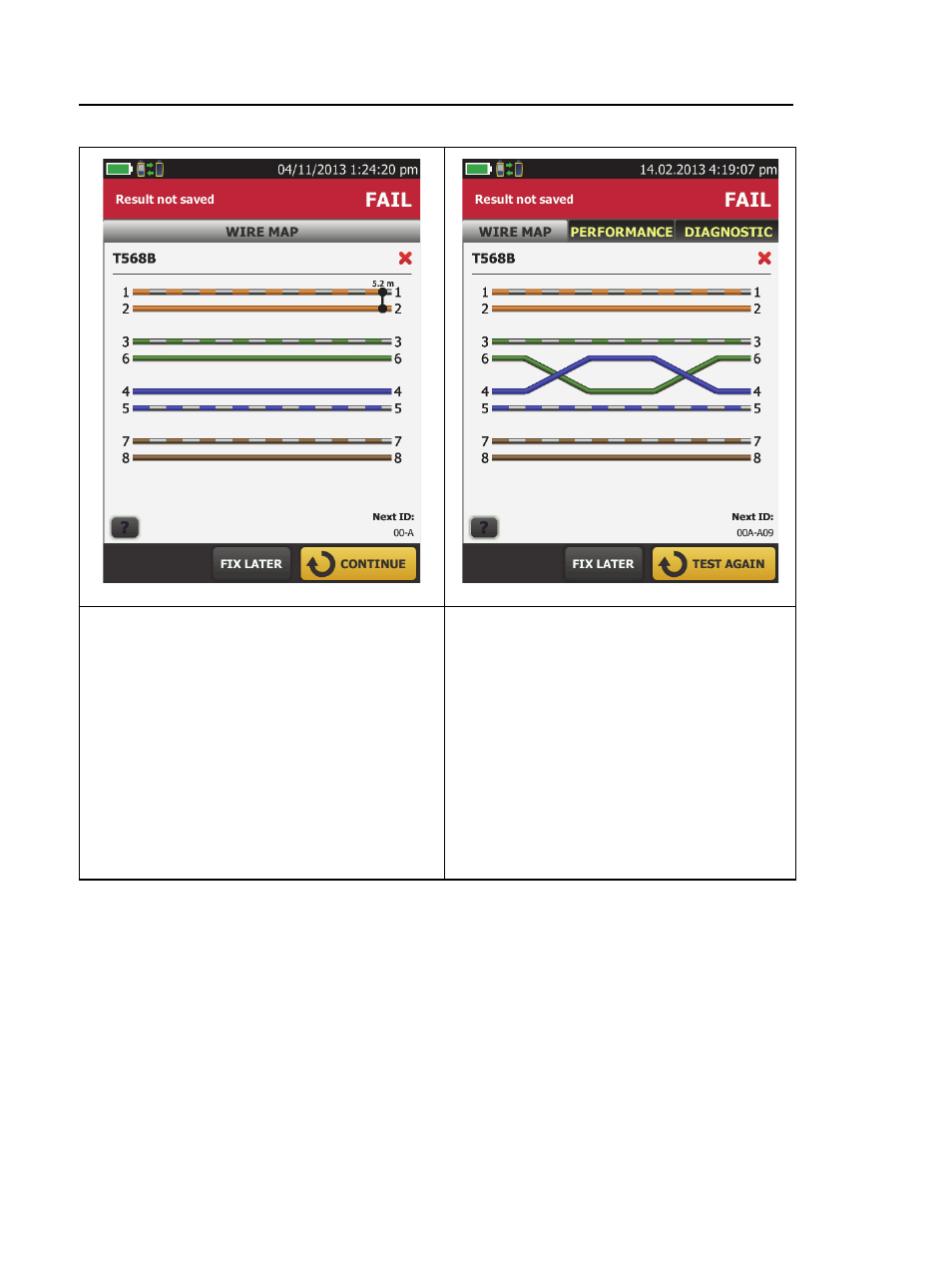

Figure 33. Wire Map Examples: Short and Split Pair
Short
Wires 1 and 2 are shorted 5.2 m from
the remote.
Note
Shorts not in a wire pair, for
example between wires 2
and 3, always show at the
near end (left side) of the
wire map screen and do not
show the length to the short.
Split pair
A wire in the 3,6 pair is crossed with
a wire in the 4,5 pair. To see the
location of the split pair, continue
the test, then look at the HDTDX
analyzer plot. The highest peak on
the plot is typically where the split
pair starts.
