Outlet configurations – Fluke Networks CertiFiber Pro Users Manual User Manual
Page 96
Versiv Cabling Certification Product Family
Technical Reference Handbook
74
GPU85.EPS

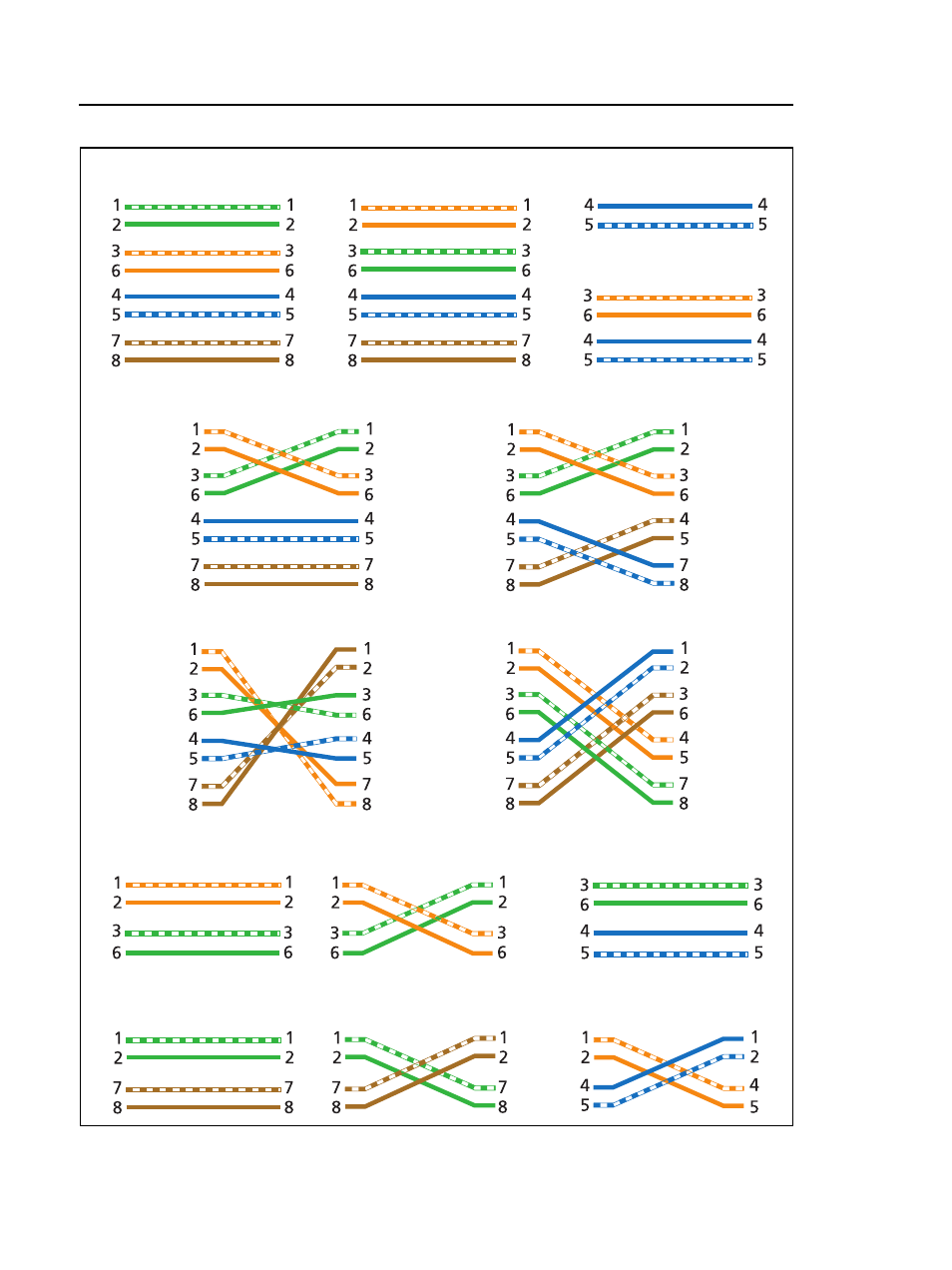

Figure 26. Outlet Configurations
T568A
Rollover
CSU/DSU
ATM/TP-PMD
Straight
ATM/TP-PMD
Crossed
Ethernet and M12
Two-Pair Crossed
Ethernet and M12
Two-Pair
Token Ring
T568B
USOC Single-Pair
USOC Two-Pair
Crossover
1000BASE-T Crossover
2 x Two-Pair Crossed
