Chapter 1: Get Acquainted
AC Adapter and Battery
15
GPU102.EPS

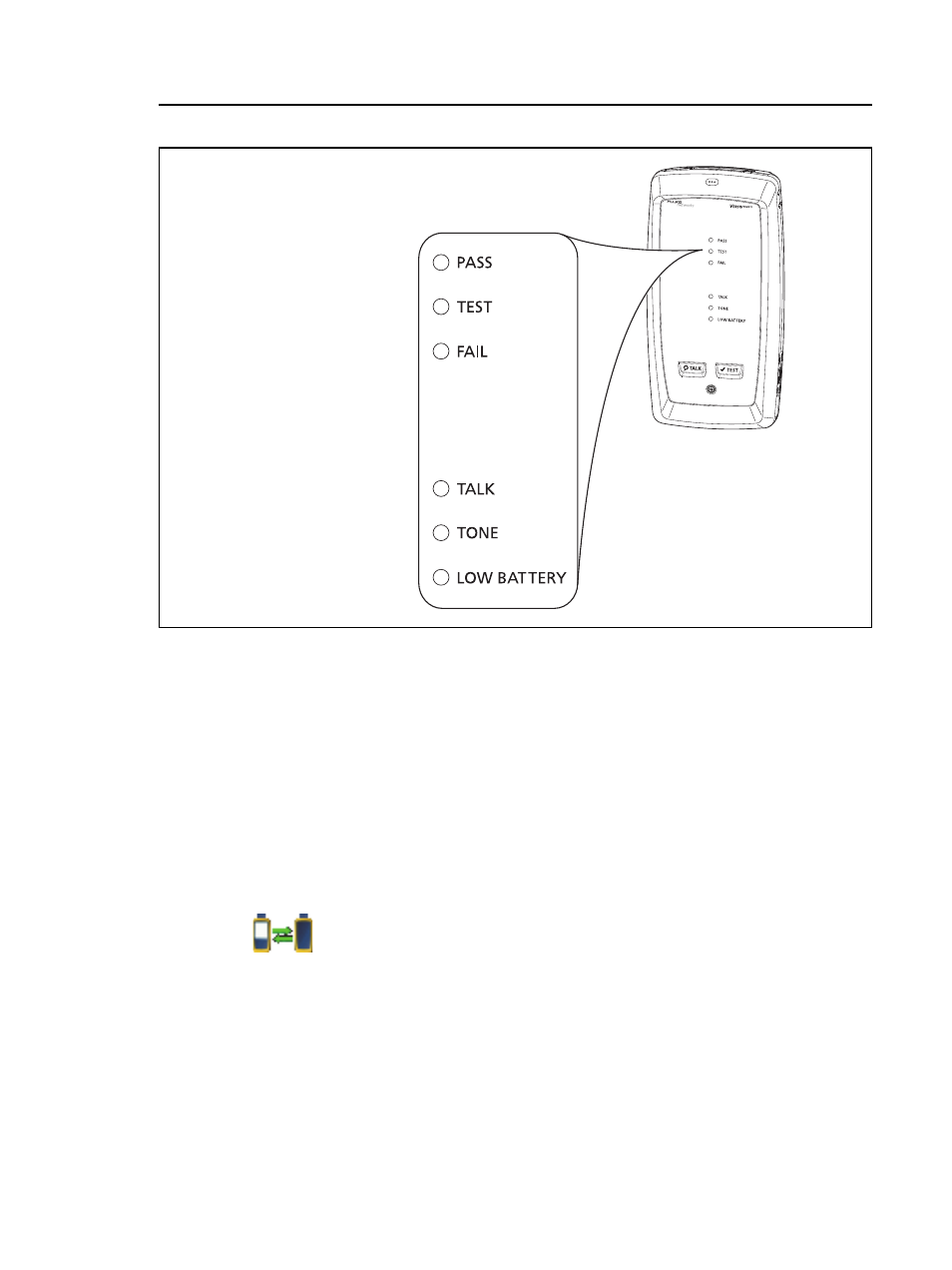

Figure 3. LEDs Show the Remote’s Battery Status
To see more information about the battery status
1 If you have main and remote testers with DSX CableAnalyzer
or CertiFiber Pro modules, make the connections shown in
Figure 4 and turn on both testers.
2 For OLTS modules, select a fiber loss/length test type.
3 Make sure the connection icon shows at the top of the screen
(
).
4 Tap TOOLS, then tap Battery Status.
When the ac adapter is not connected, the screen shows the Time
Remaining, which is the approximate battery life at the present
rate of use.
84 % - 100 %
67 % - 83 %
51 % - 66 %
34 % - 50 %
18 % - 33 %
0 % - 17 %
