Chapter 14: Projects
Tutorial: How to Use a Project for Tests with OptiFiber Pro and CertiFiber Pro
327

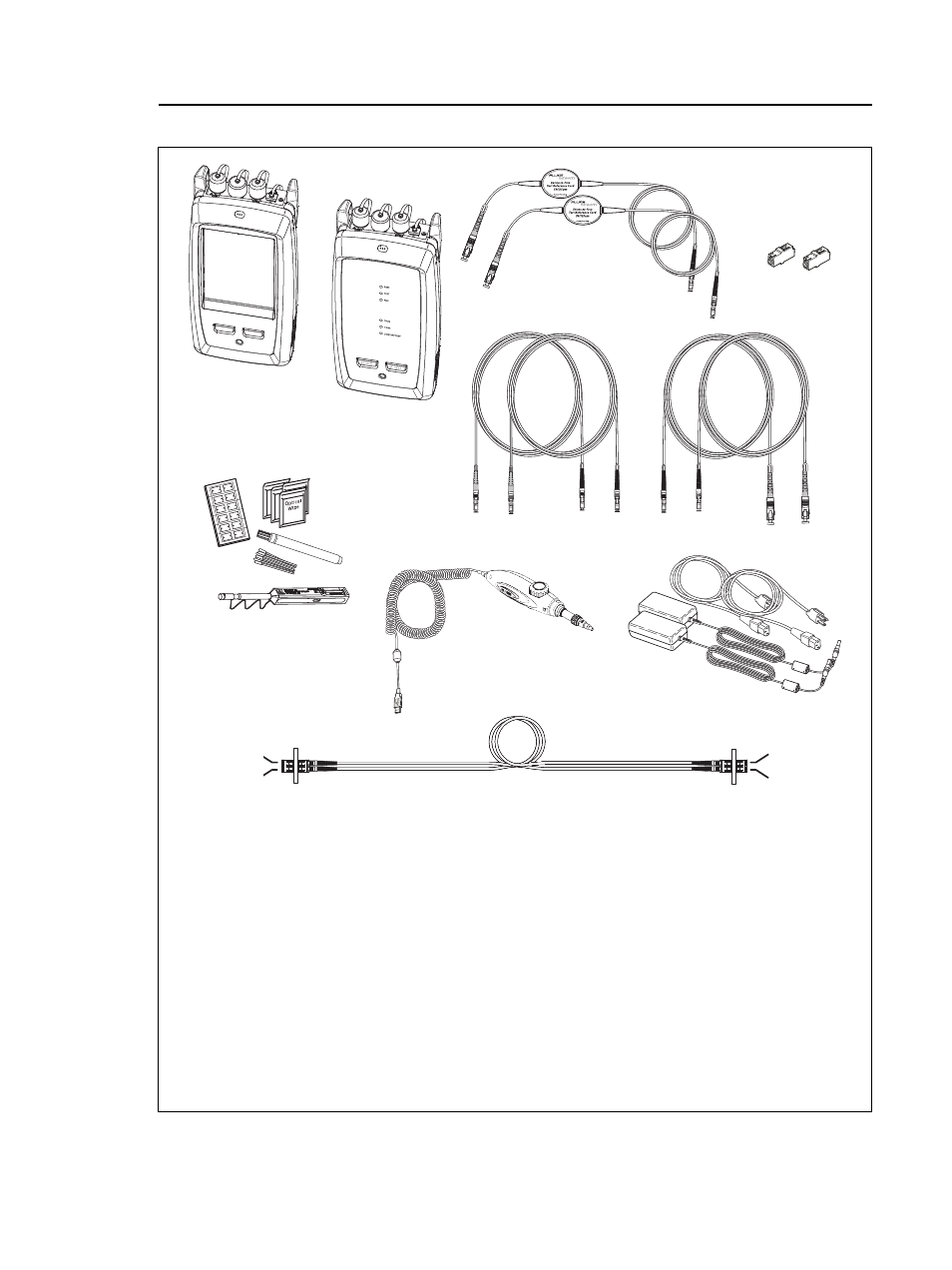

Figure 129. Equipment for the Loss/Length Project Tutorial
GPU160.EPS
Main and remote Versiv units
with CertiFiber Pro modules
installed
For multimode fiber: two EF-TRC
test reference cords
Two singlemode adapters
For multimode fiber: two test
reference cords. For singlemode
fiber: four test reference cords.
Fiber cleaning supplies
Video probe with USB connector
(DI-1000 shown)
AC adapters with line cords
(optional)
Duplex fiber link or segment
A
B
D
C
E
F
G
H
Fiber 1A
Fiber 1B
End 1
End 2
Fiber 1A
Fiber 1B
