Versiv Cabling Certification Product Family
Technical Reference Handbook
238
How to Do an OTDR Test
Figure 103 shows the equipment for OTDR tests.
To do an OTDR test
1 Make sure that the home screen shows the correct settings for
the job. If it is not necessary to use specific settings, set the
test type to Auto OTDR to make sure the results show all of
the events on the fiber.
2 Clean and inspect the connectors on the launch and tail cords
and the fiber to be tested.
3 Connect the tester to the link as shown in Figure 104, 105, or
106.
4 Tap TEST or press .
Note
The tester shows a warning if there is an optical
signal on the fiber.

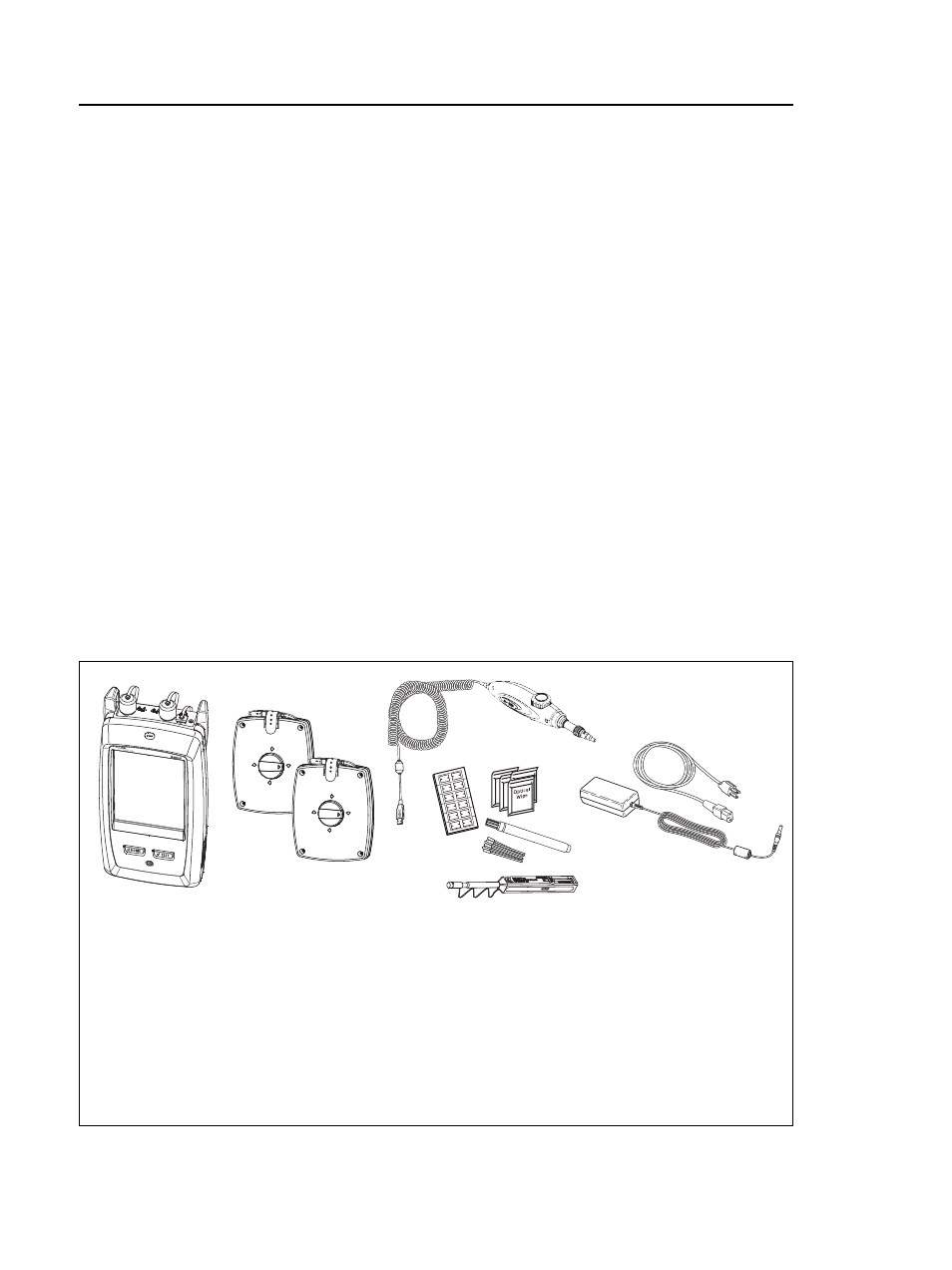

Figure 103. Equipment for OTDR Tests
GPU31.EPS
 Main Versiv unit with OptiFiber
Pro module installed
 Launch and tail cords (match the
fiber to be tested)
 Video probe with USB connector
(DI-1000 shown)
 Fiber cleaning supplies
 AC adapter with line cord
(optional)
A
B
C
E
D
