Chapter 3: How to Certify Twisted Pair Cabling
How to Do an Autotest
75
How to Do an Autotest
When you tap TEST on the main tester or press on the main
or remote tester, the testers do an Autotest. The Autotest
includes all the tests necessary to certify that the cabling meets or
exceeds the performance requirements specified in the selected
test limit.
Figure 27 shows the equipment for Autotests on twisted pair
cable.

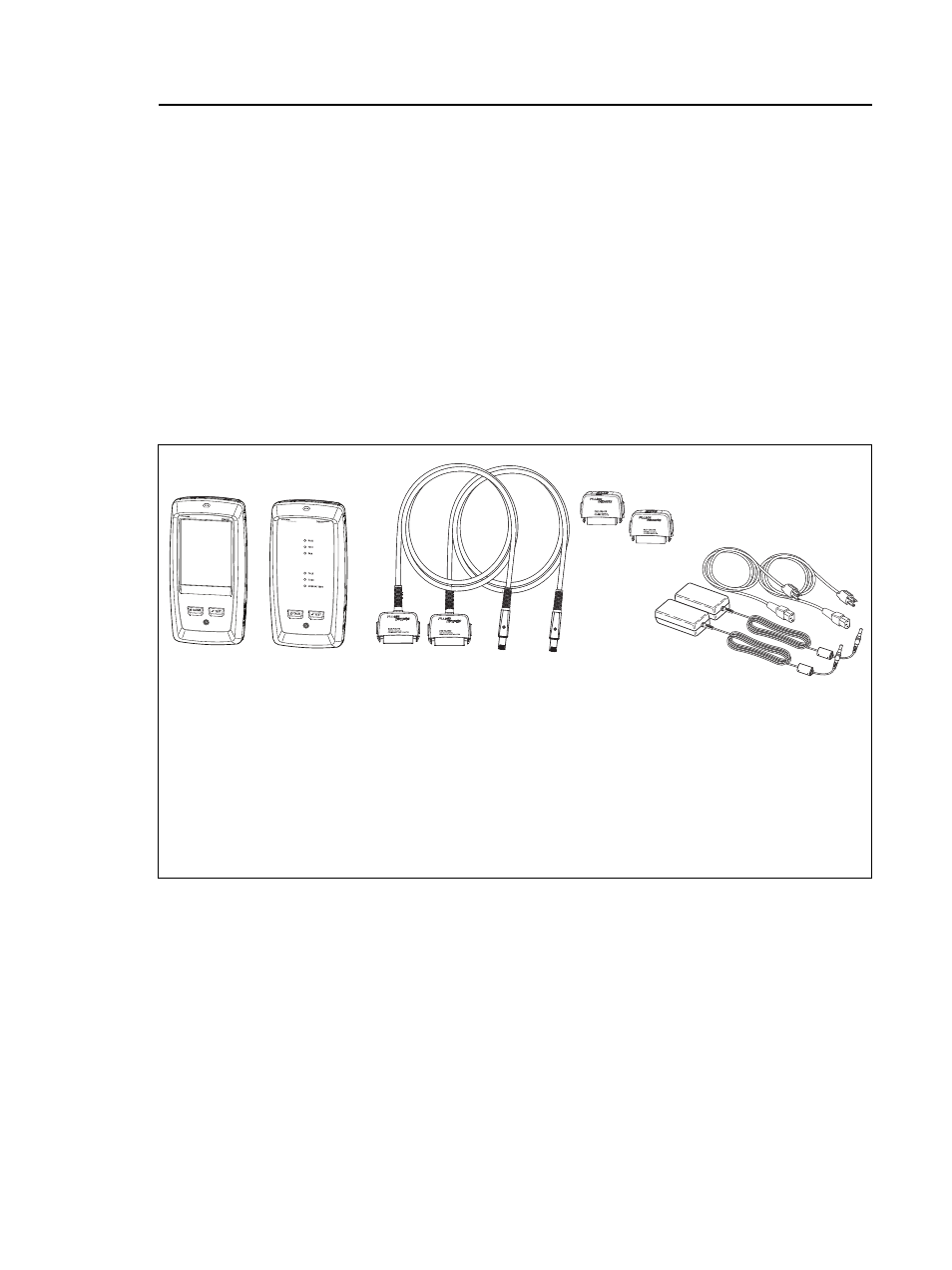

Figure 27. Equipment for Autotests on Twisted Pair Cable
GPU111.EPS
Main and remote Versiv units
with DSX CableAnalyzer
modules installed
For tests on permanent links:
two permanent link adapters
For tests on channels: two
channel adapters
AC adapters with line cords
(optional)
A
C
B
D
