Versiv Cabling Certification Product Family
Technical Reference Handbook
186
GPU146.EPS

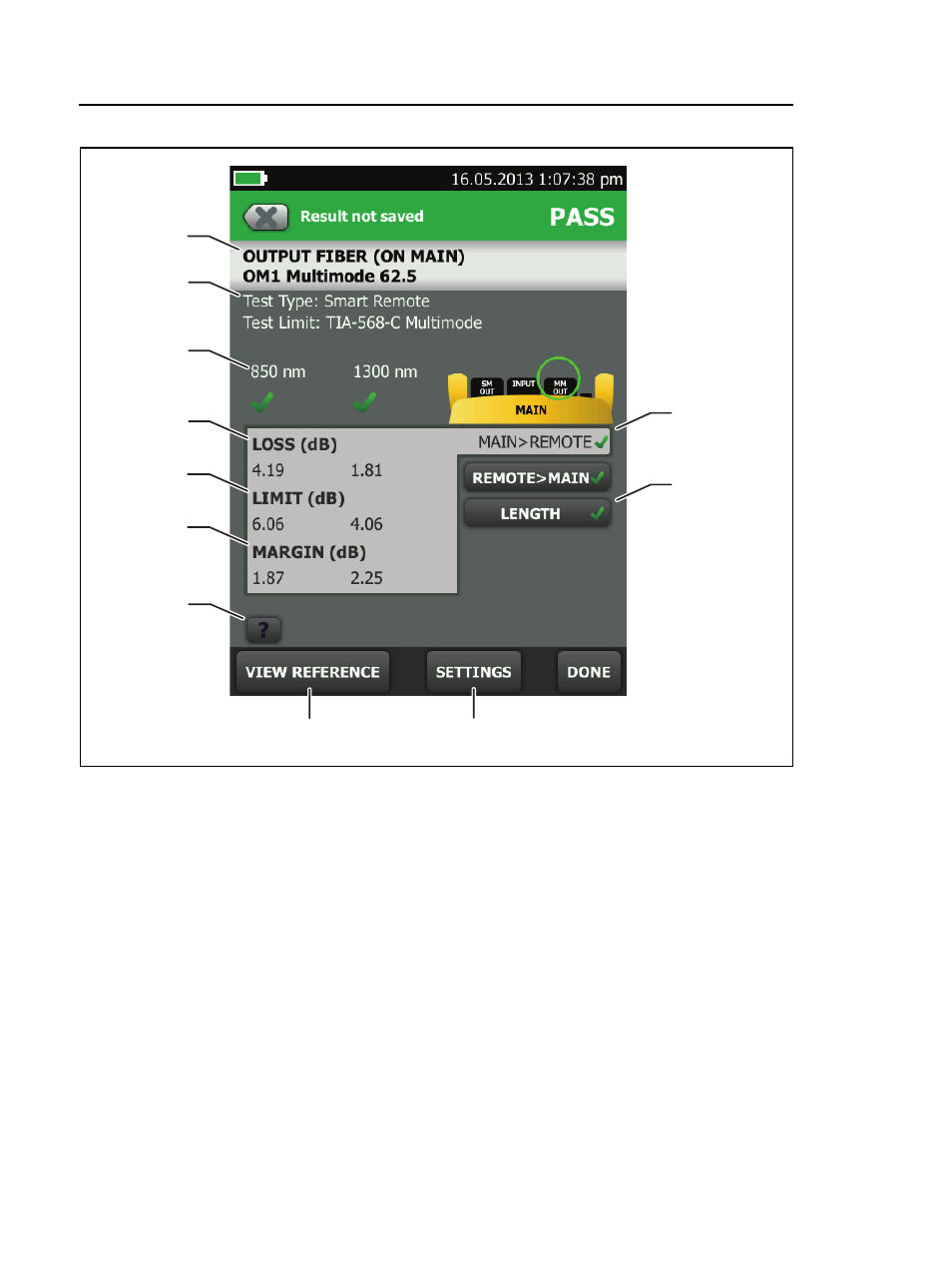

Figure 83. Detailed Result for Smart Remote Mode
(Unsaved Bi-Directional Results Shown)
 The fiber that gave the results. INPUT and OUTPUT refer to the
connector on the main tester where the fiber was connected at
the end of the test.
 The Test Type and Test Limit used for the test.
 The wavelengths the tester used for the test.
 LOSS: Measurements of loss for each wavelength the tester
used. The measurement is red if it exceeds the limit.
A
C
D
E
J
B
K
H I
F
G
