Chapter 3: How to Certify Twisted Pair Cabling
Twisted Pair Autotest Results
91
GPU104.EPS

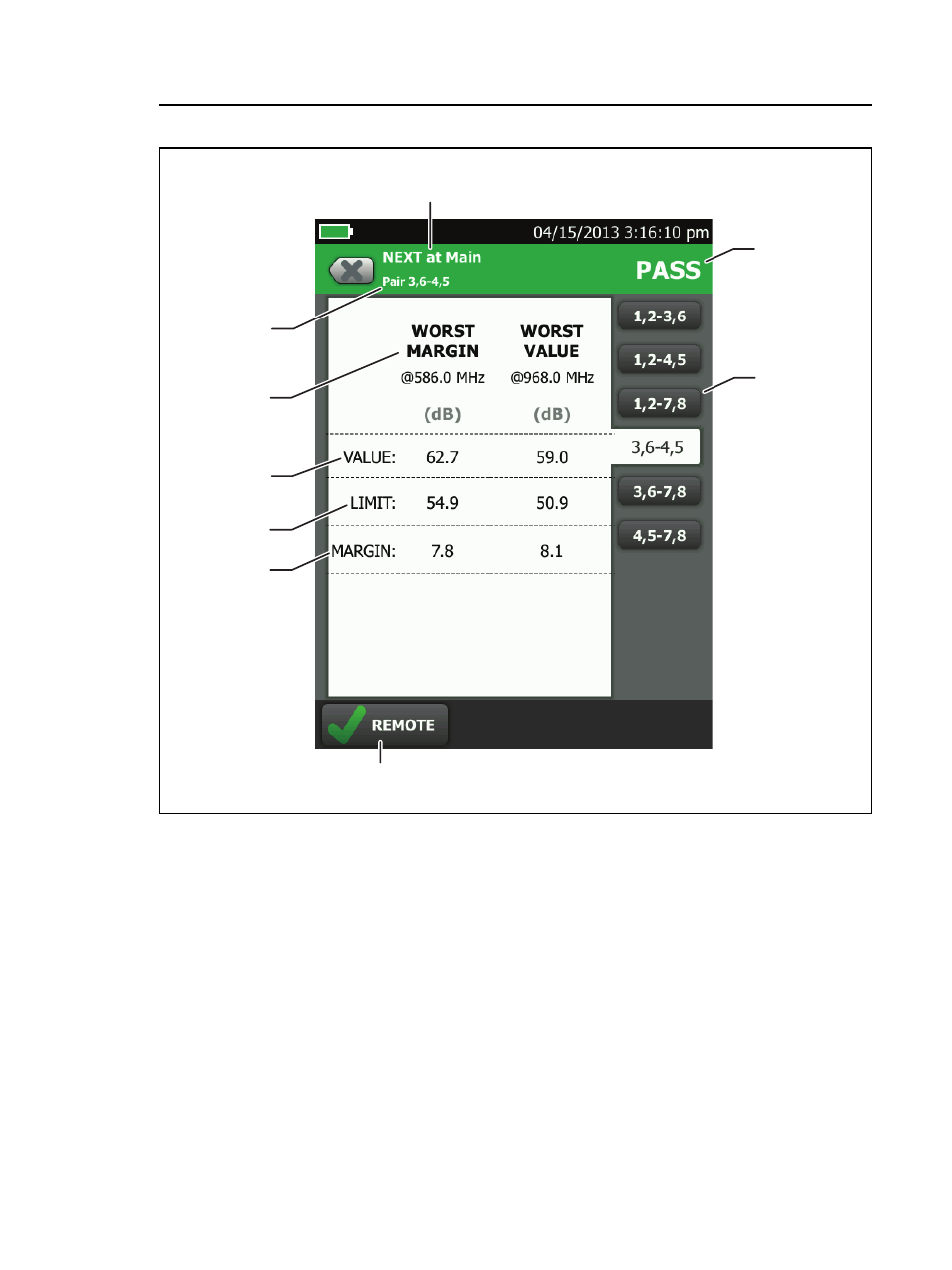

Figure 38. Tabular Results Screen for a Frequency-Domain Test
MARGIN is the difference between the measured value and the
limit. The value is negative and is in a red box if the
measurement exceeds the limit.
To switch between results for the main unit and the remote,
tap REMOTE or MAIN.
To see the results for a different pair or pairs, tap a tab.
The result for the pair. If the result shows an asterisk, see “PASS*/
FAIL* Results” on page 79.
