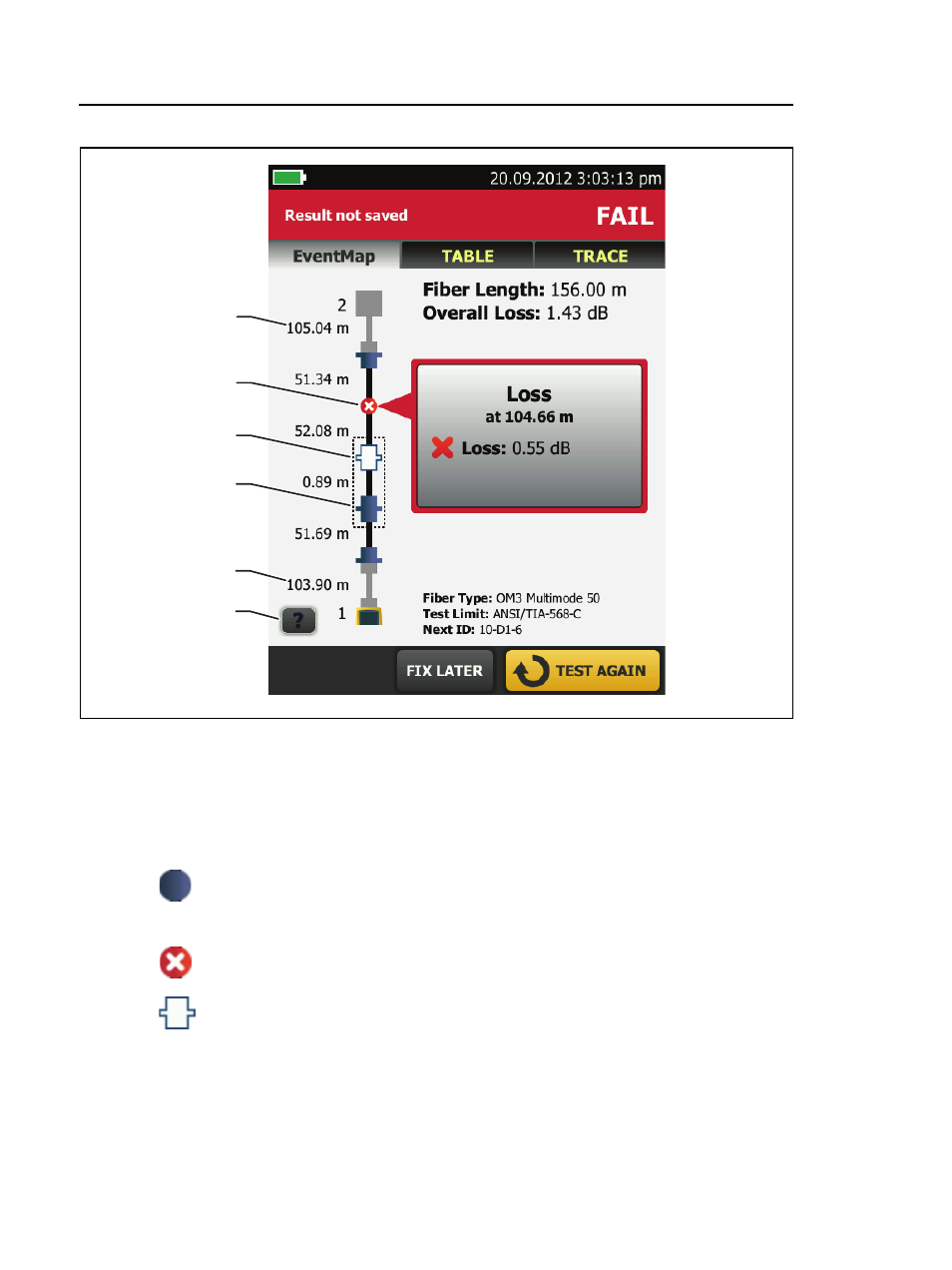

Figure 108. EventMap Example 2
 Length of the tail cord (top) and launch cord (bottom).
 A loss event, such as a splice or bend:
: Measurements for the event are all within the test limits. If
the event has negative loss, it is a Gainer. See page 253.
: One or more measurements for the event exceeds the limit.
 : The event is hidden by a previous event.
The map shows a dotted line around hidden events and the
event that causes them to be hidden. The tester combines the
loss of all the events that are in the dotted line. To see the
combined loss, tap the event that causes the hidden event (
 ).
A
C
A
B
D
E
