AT-FS970M Switch Command Line User’s Guide
925
Figure 172 provides an example of how GVRP works.

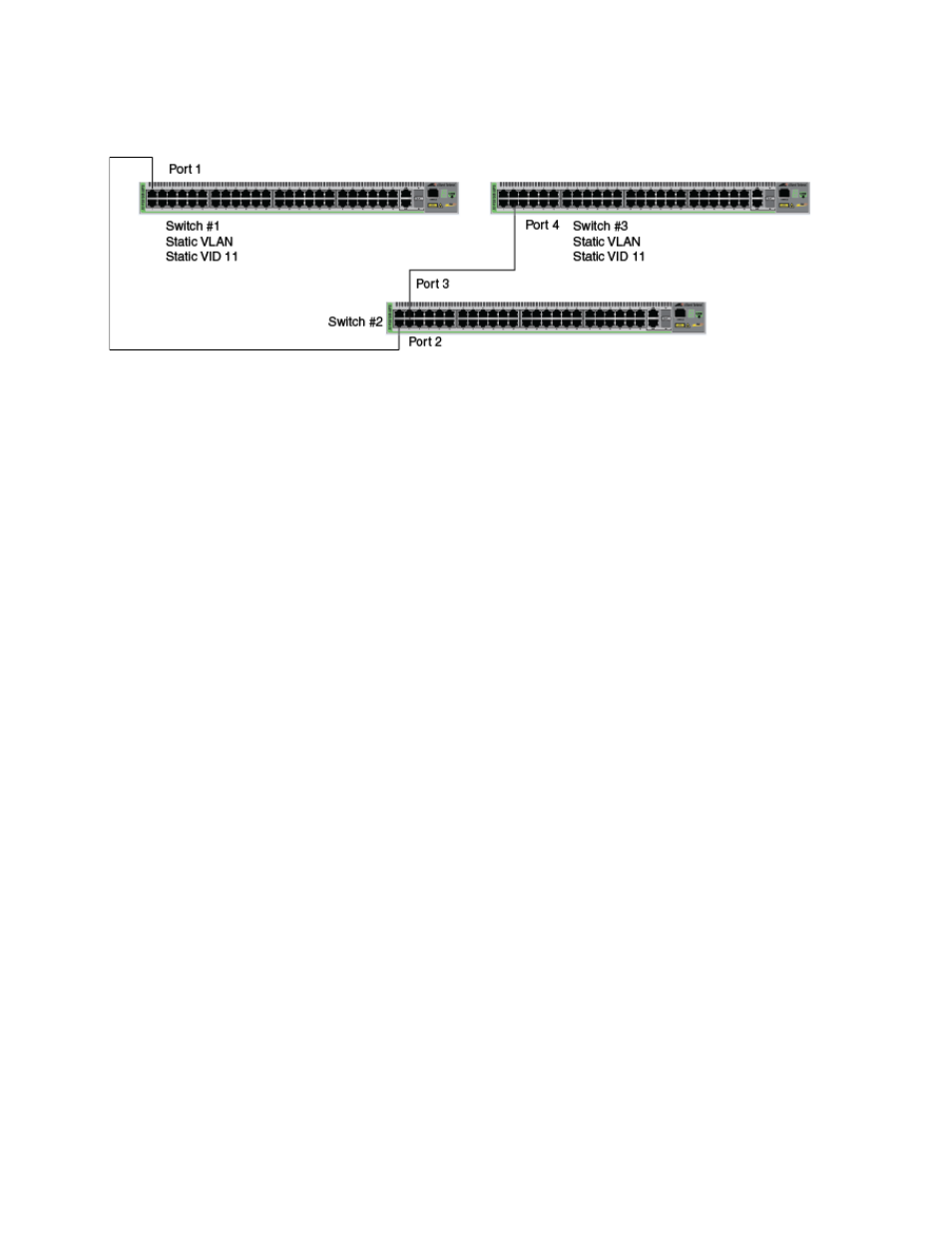

Figure 172. GVRP Example
The example consists of three switches. Switches #1 and #3 have the
Sales VLAN, but switch #2 does not. Consequently, the end nodes of the
two parts of the Sales VLANs cannot communicate with each other.
