Port-based example 2, Figure 168. port-based vlan - example 2 – Allied Telesis AT-FS970M Series User Manual
Page 886
Chapter 58: Port-based and Tagged VLANs
886
Port-based
Example 2

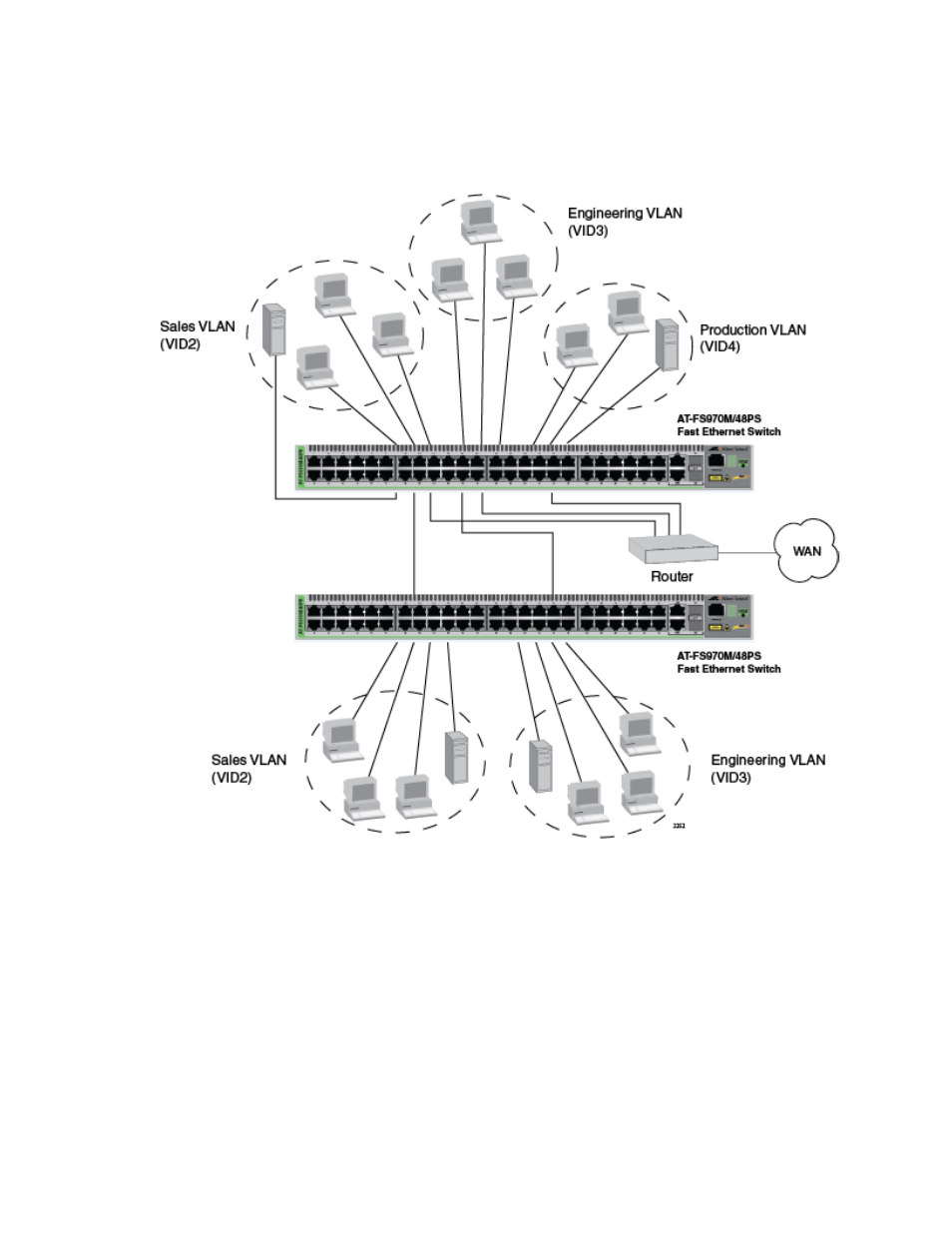

Figure 168 on page 886 illustrates more port-based VLANs. In this
example, two VLANs, Sales and Engineering, span two switches.
Figure 168. Port-based VLAN - Example 2
