Tagged vlan example, Figure 169. example of a tagged vlan – Allied Telesis AT-FS970M Series User Manual
Page 890
Chapter 58: Port-based and Tagged VLANs
890
Tagged VLAN
Example
Figure 169 illustrates how tagged ports can be used to interconnect IEEE
802.1q based products.

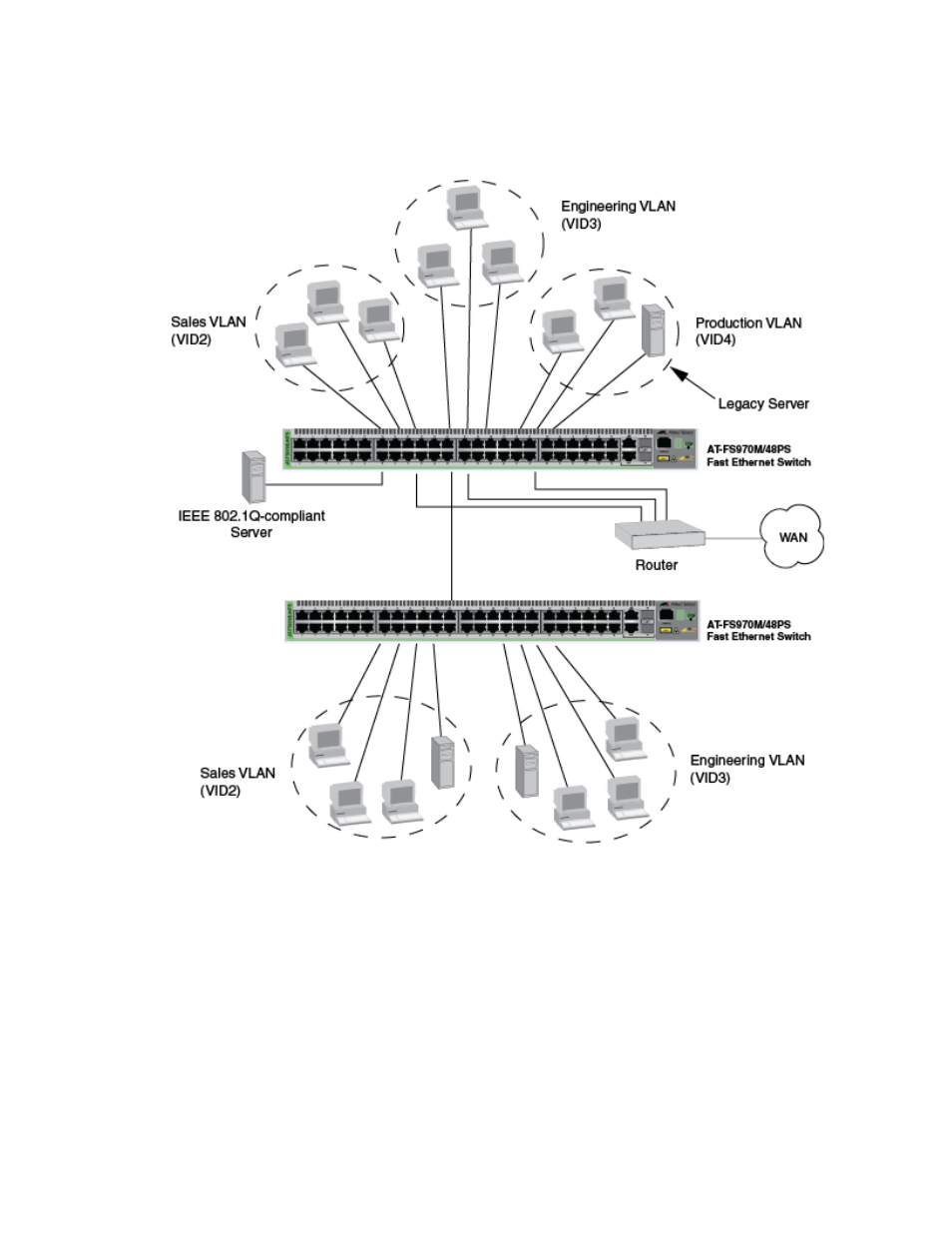

Figure 169. Example of a Tagged VLAN
