Port-based
Example 1

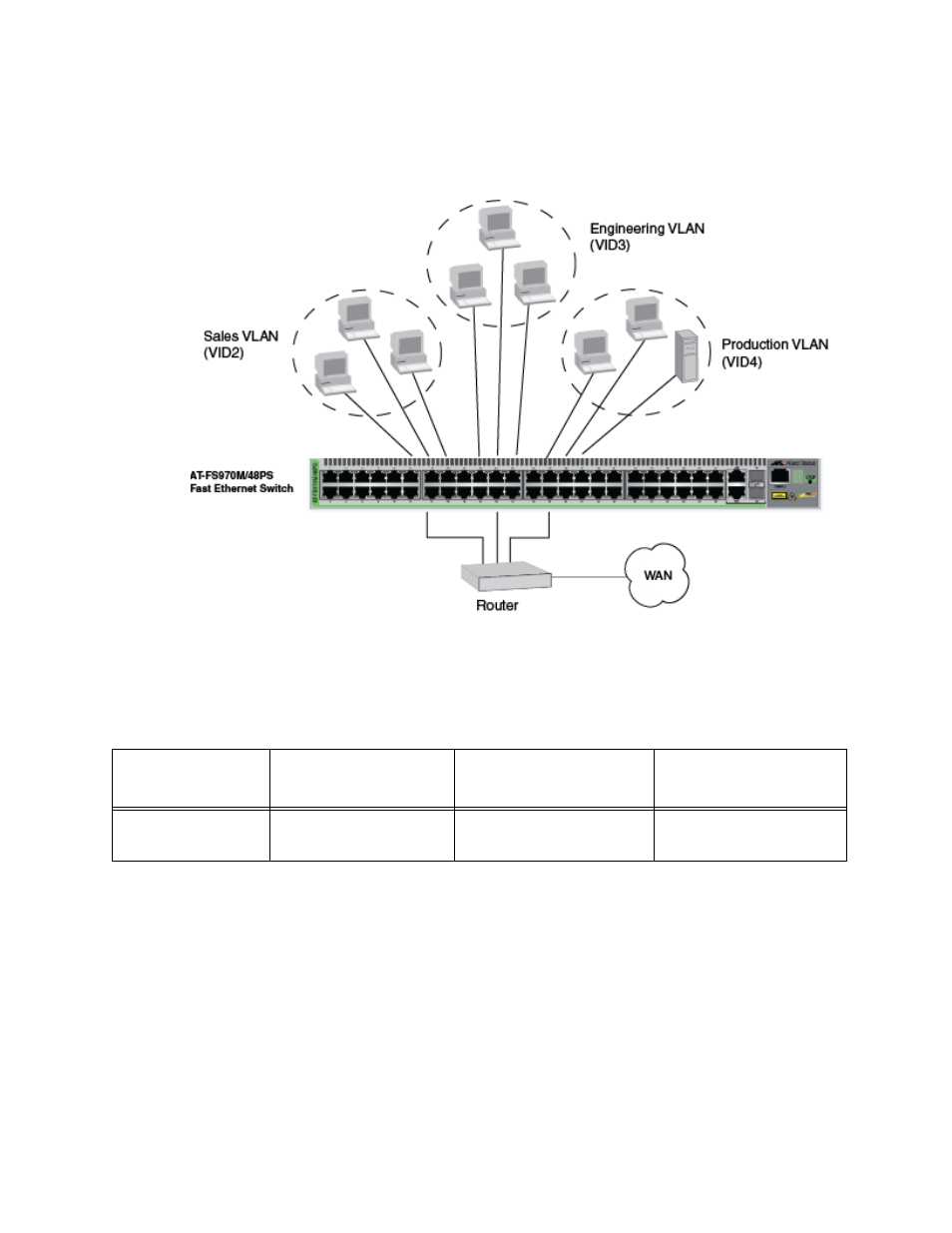

Figure 167 illustrates an example of one AT-FS970M switch with three
port-based VLANs. (The Default VLAN is not shown in the following
examples.)
Figure 167. Port-based VLAN - Example 1
The table below lists the port assignments for the Sales, Engineering, and
Production VLANs on the switch.
Each VLAN has a unique VID. You assign a VID number when you create
a VLAN.
The ports have been assigned PVID values. A port’s PVID is assigned
automatically by the switch when you create the VLANs. The PVID of a
port is the same as the VID in which the port is an untagged member.
In the example, each VLAN has one port connected to the router. The
router interconnects the various VLANs and functions as a gateway to the
WAN.
Switch Sales VLAN (VID 2) Engineering VLAN
(VID 3)
Production VLAN
(VID 4)
AT-FS970M
Switch Ports 1, 3 - 5
(PVID 2) Ports 9, 11 - 13
(PVID 3) Ports 17 - 19, 21
(PVID 4)
