Page 837
AT-FS970M Switch Command Line User’s Guide
837

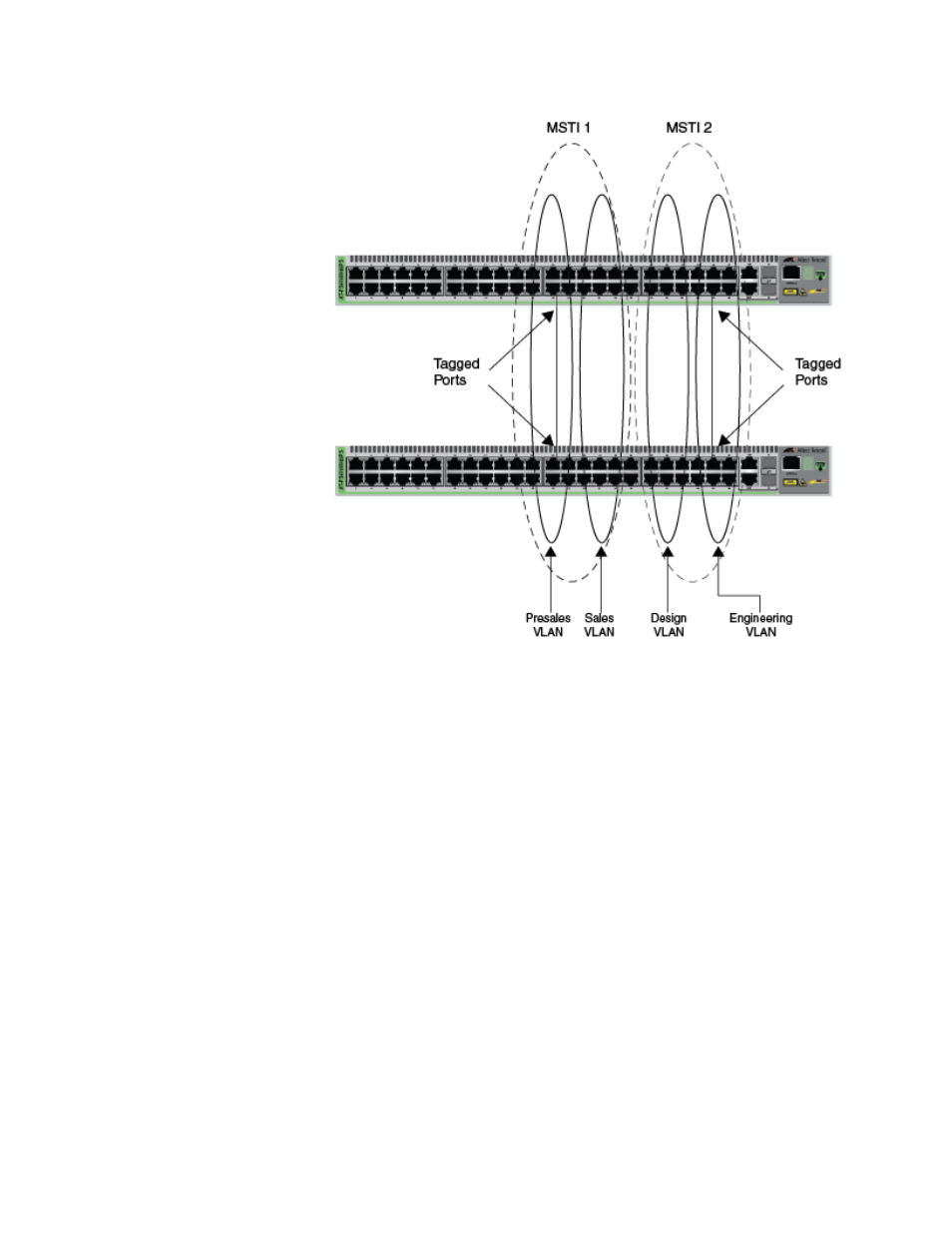

Figure 159. Multiple VLANs in an MSTI
In this example, because an MSTI contains more than one VLAN, the links
between the VLAN parts are made with tagged, not untagged, ports so
that they can carry traffic from more than one virtual LAN. Referring again
to Figure 159, the tagged link in MSTI 1 is carrying traffic for both the
Presales and Sales VLANs while the tagged link in MSTI 2 is carrying
traffic for the Design and Engineering VLANs.
