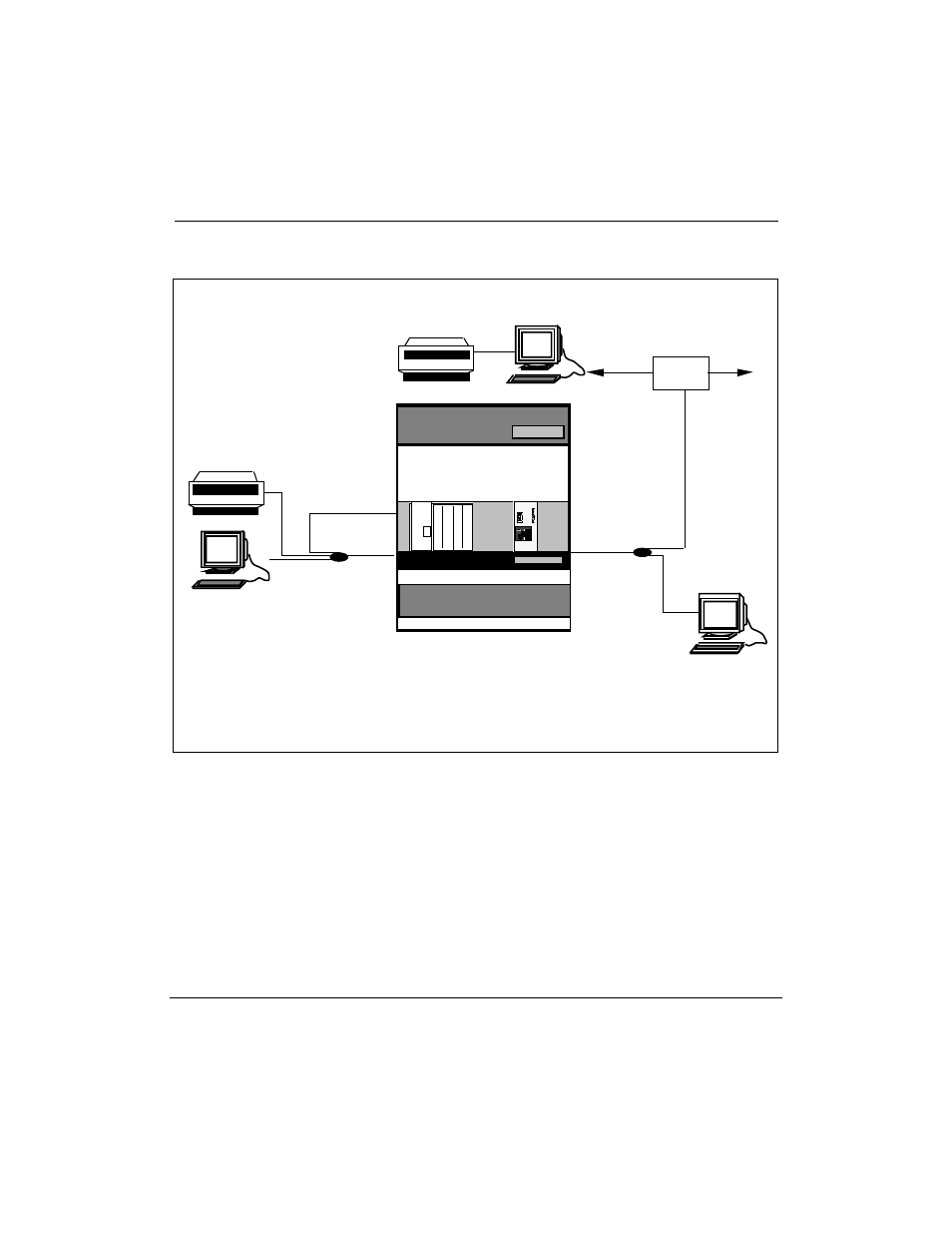

Figure 4
CCR hardware connections (IPE Module)
Terminal
LAN
Printer
Printer
PC using
Reflection 4+
AML
Maintenance
Console
Cable
NT1R03AA
Cable
NT1R03BA
Meridian 1
IPE Module installed in a Meridian 1
