254 Chapter 9: Meridian Link/CCR interface cabling
553-3202-210 Standard October 1998
Meridian Mail cabling (Application Module)
The Meridian Link application can have voice-processing capability by
connecting the Application Module to a Meridian Mail system through a
link called the Meridian Mail Link (MML).
The MML (Figure 75) connects to the Application Module at MVME712
serial port SP4. The MML connects to the Meridian Mail system at a data
port of Meridian Mail.

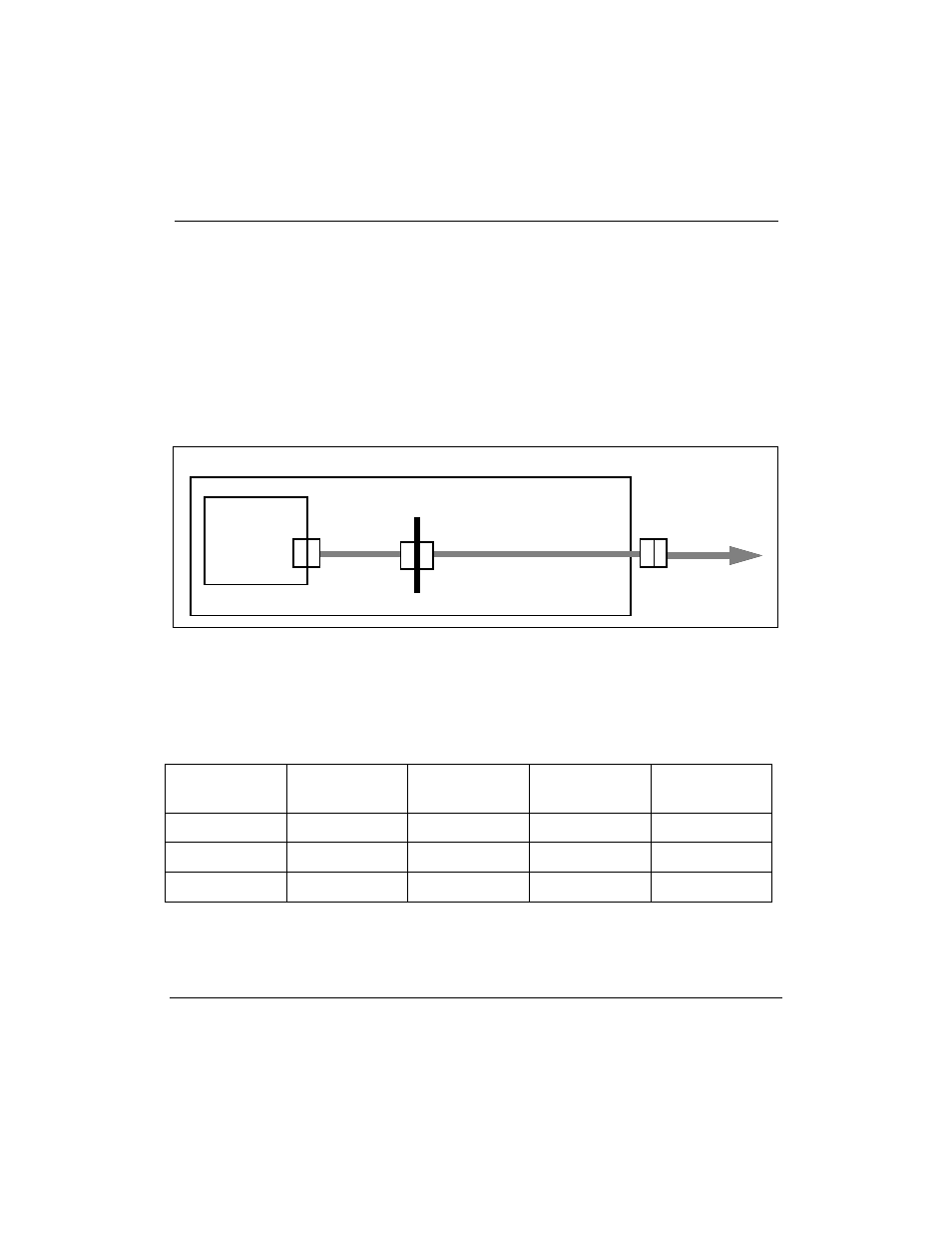

Figure 75
Meridian Mail cabling (Application Module)
Application Module
I/O panel MVME712
transition card
SP4
data port
Meridian
Mail
Meridian Mail
System
cable 1 cable 2
Table 91 shows the different cables that can be used for cable 1 and cable 2
for various combinations of MVME712 transition cards and types of I/O
panel.
Table 91
Meridian Mail cabling
Transition card I/O panel type I/O panel
connector
Cable 1
(see Figure 75)
Cable 2
(see Figure 75)
MVME712M generic I/O card 1 conn 4 NT7D58CA NT7D58BB
MVME712A/AM universal I/O Spare NT7D61DA NTND82AA
MVME712A/AM I/O subpanel J1 NT7D61DA NTND82AA
