172 Chapter 9: Meridian Link/CCR interface cabling
553-3202-210 Standard October 1998
Meridian Mail cabling (IPE Module)
The Meridian Link application can have voice-processing capability by
connecting the IPE Module to a Meridian Mail system through a link called
the Meridian Mail Link (MML).
The MML connects to the IPE Module at port 4. The MML connects to the
Meridian Mail system at a data port of Meridian Mail via an NT1R03HF
25-pin male to a 25-pin male cable (10 ft.) with a null modem adapter. For a
pinout of the NT1R03HF cable, refer to ÒExternal I/O cable pinoutsÓ in this
chapter.

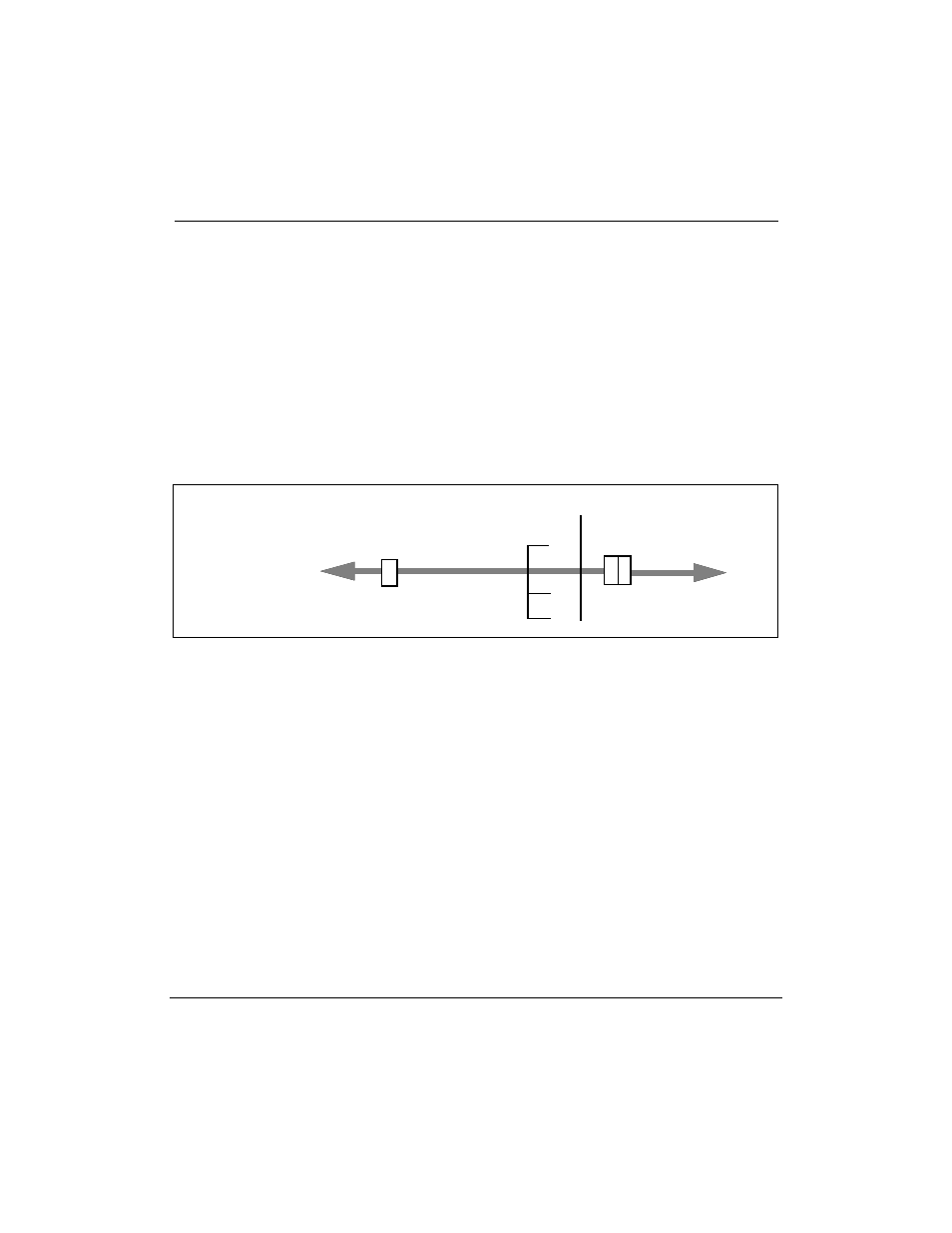

Figure 44
Meridian Mail cabling (IPE Module)
NT1R03BA
To IPE Module
connector panel
(Option 11) orI/O
panel (Options
21Ð81)
data port
Meridian
Meridian
MailSystem
2
6
8
4
octopus cable
For more information on defining MML parameters, refer to Procedure 15:
Changing Meridian Mail Link (link 2) parameters (Meridian Link only). For
information on Meridian Mail, refer to Chapter 13, ÒMeridian Mail
configuration.У
