Meridian America Link/Customer Controlled Routing - Manual (Page 193)

Chapter 9: Meridian Link/CCR interface cabling 175
Meridian Link Release 5C/CCR Release 3C Installation and Upgrade Guide

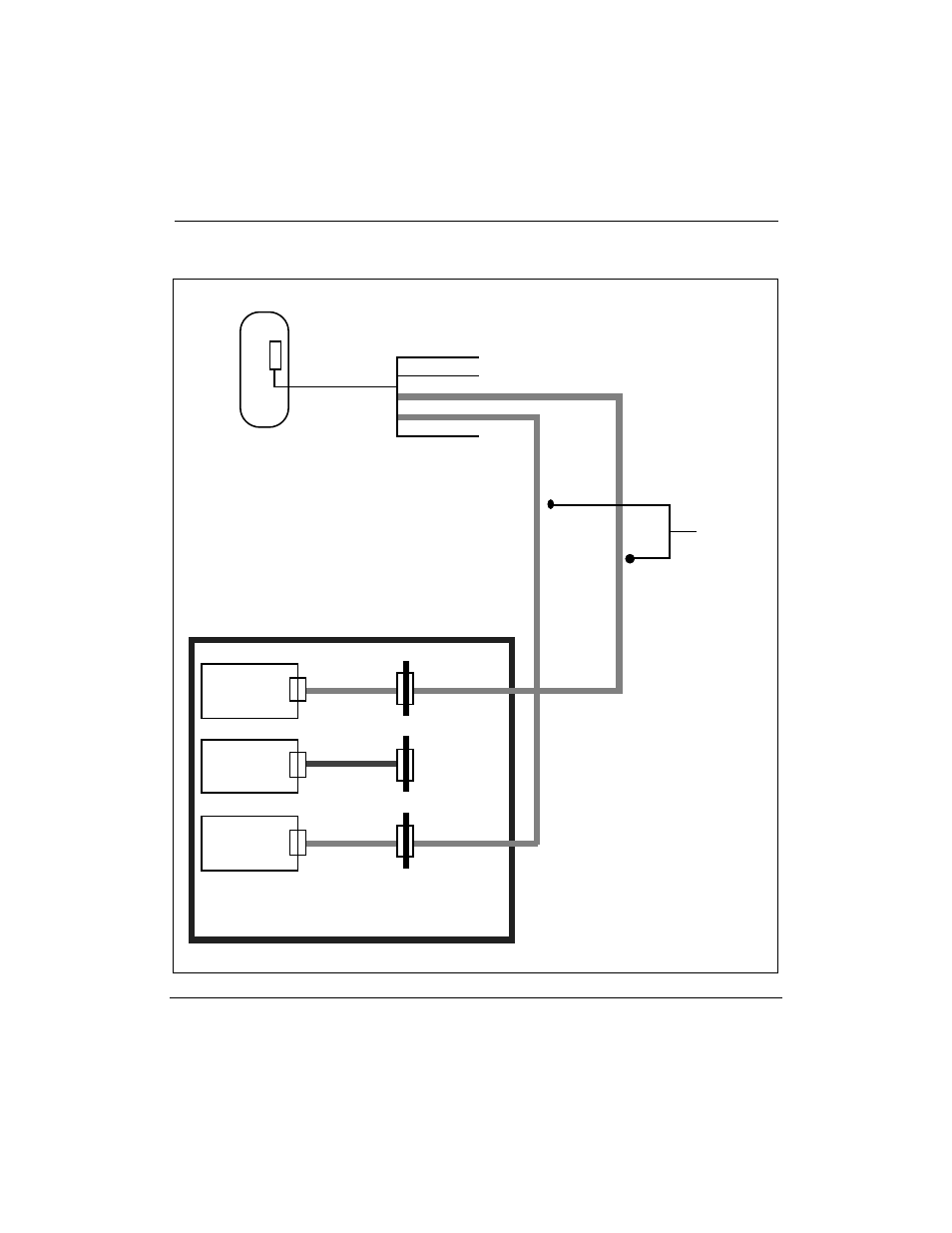

Figure 45
I/O cabling to Meridian 1 (SDI and MSDL) (Options 21Ð81 IPE Module)
Meridian 1
SDI card
(see Note)
NT8D82
QPC513
ESDI card
I/O panels
NT8D82
Note: Use the NT8D82 cable with all SDI cards except
the NT8D41 SDI Paddle Board. With the Paddle Board,
use an NT8D93A cable.
NT6D80
MSDL card
NTND27AB
Part of IPE shelf
I/O panel
Ethernet
port 1
port 3
port 5
port 7
NT1R03AA
NT7D58 to
SDI/MSDL
