210 Chapter 9: Meridian Link/CCR interface cabling
553-3202-210 Standard October 1998

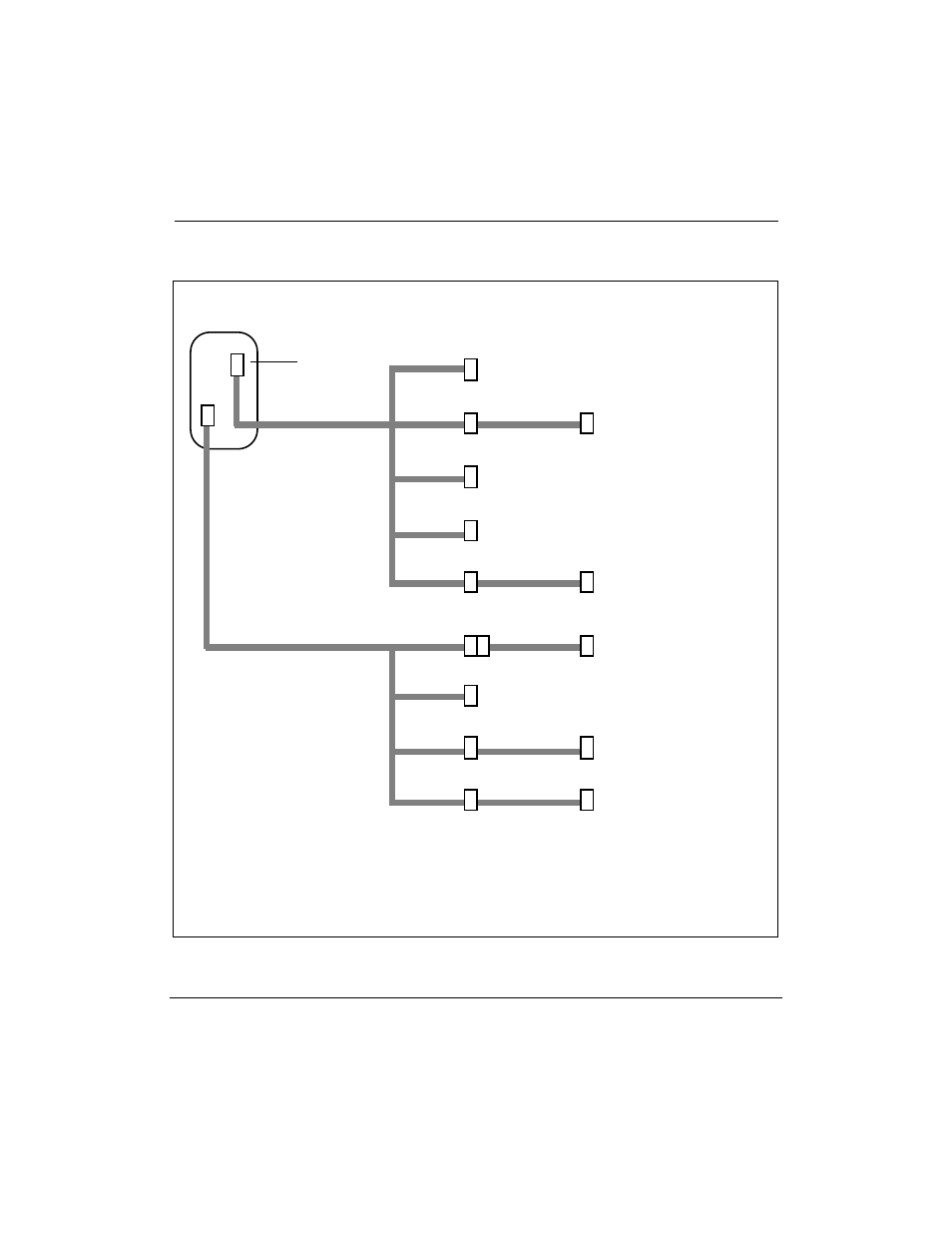

Figure 55
Options 21Ð81 system IPE Module connections
NT1R03AA
(octopus cable)
Ethernet port (to TCP/IP host link)
See Note 5
to console
Port 1
to AML
See Note 2 Port 5
to terminal or printer
(CCR) Port 7
to conshare
See Note 1 Port 3
NT1R03BA
(octopus cable)
Part of
IPE Shelf
Port 2
to external modem
Port 4 to MML (Meridian Link and co-residency)
See Note 4
Port 6
to X.25 host link
(Meridian Link and
co-residency)
to terminal or printer (CCR)
Port 8
to terminal or printer (CCR)
NT1R03HF
Note 1:
Note 2:
Note 3:
Note 4:
Note 5: For SDI cabling, refer to ÒSDI cabling (Options 21Ð81 IPE Module).Ó
For ESDI cabling, refer to ÒESDI/MSDL cabling (Options 21Ð81 IPE Module).Ó
For DCE/DTE configuration, refer to ÒInstalling the IPE Module.Ó
For MML cabling, refer to ÒMeridian Mail cabling (IPE Module).Ó
For Ethernet LAN cabling, refer to ÒInstalling Ethernet LAN support.Ó
I/O panel
See Note 3
NT1R03D
NT1R03D
