232 Chapter 9: Meridian Link/CCR interface cabling

553-3202-210 Standard October 1998

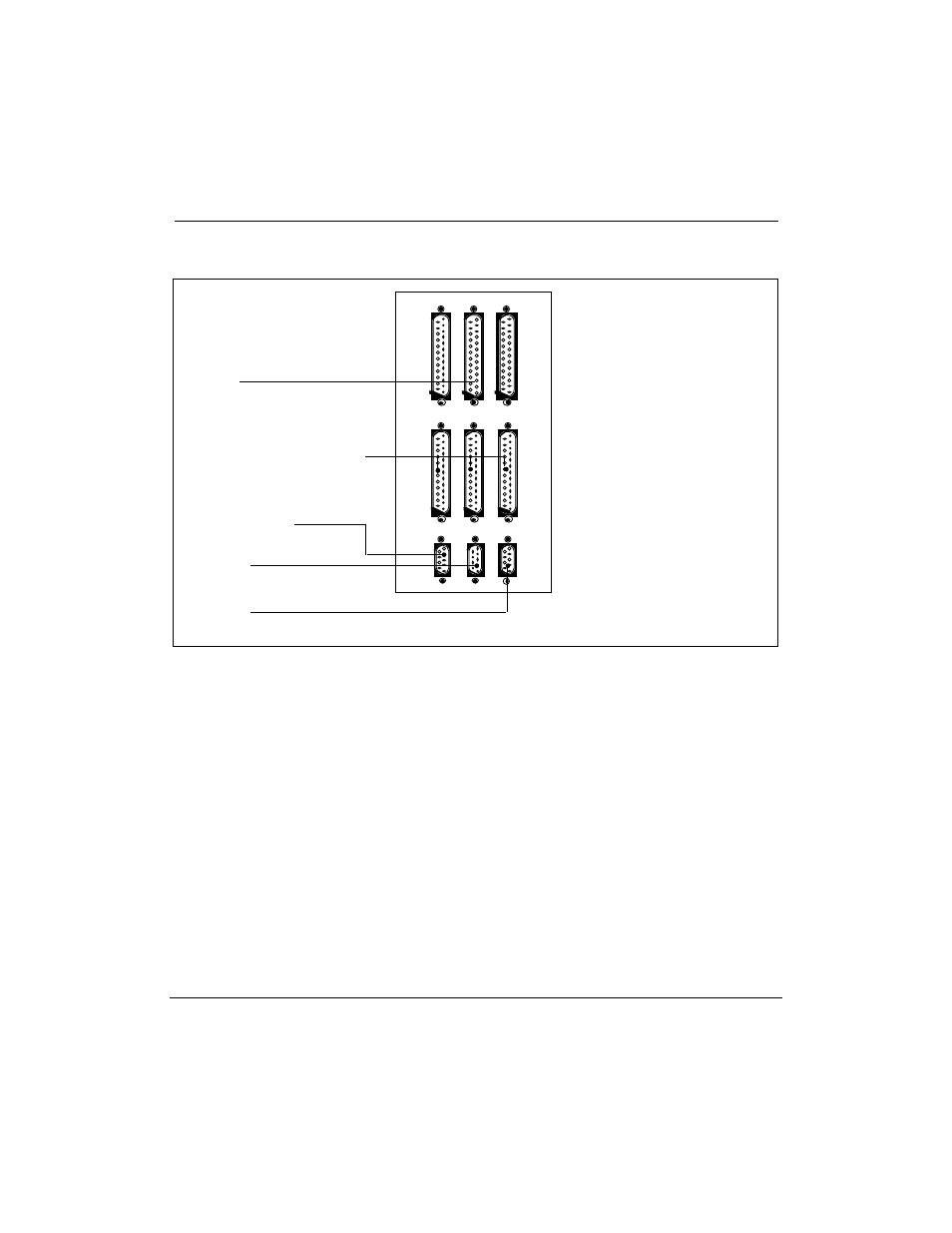

Figure 60
I/O subpanel connectors (CCR)

External modem

Console

Meridian 1 connection
(Link 0)

SDI port

Note: Connectors J1 and J3 are not used.

To terminals and/or printers
(NT8D96AE octopus cable)
