Meridian America Link/Customer Controlled Routing - Manual (Page 262)

244 Chapter 9: Meridian Link/CCR interface cabling
553-3202-210 Standard October 1998

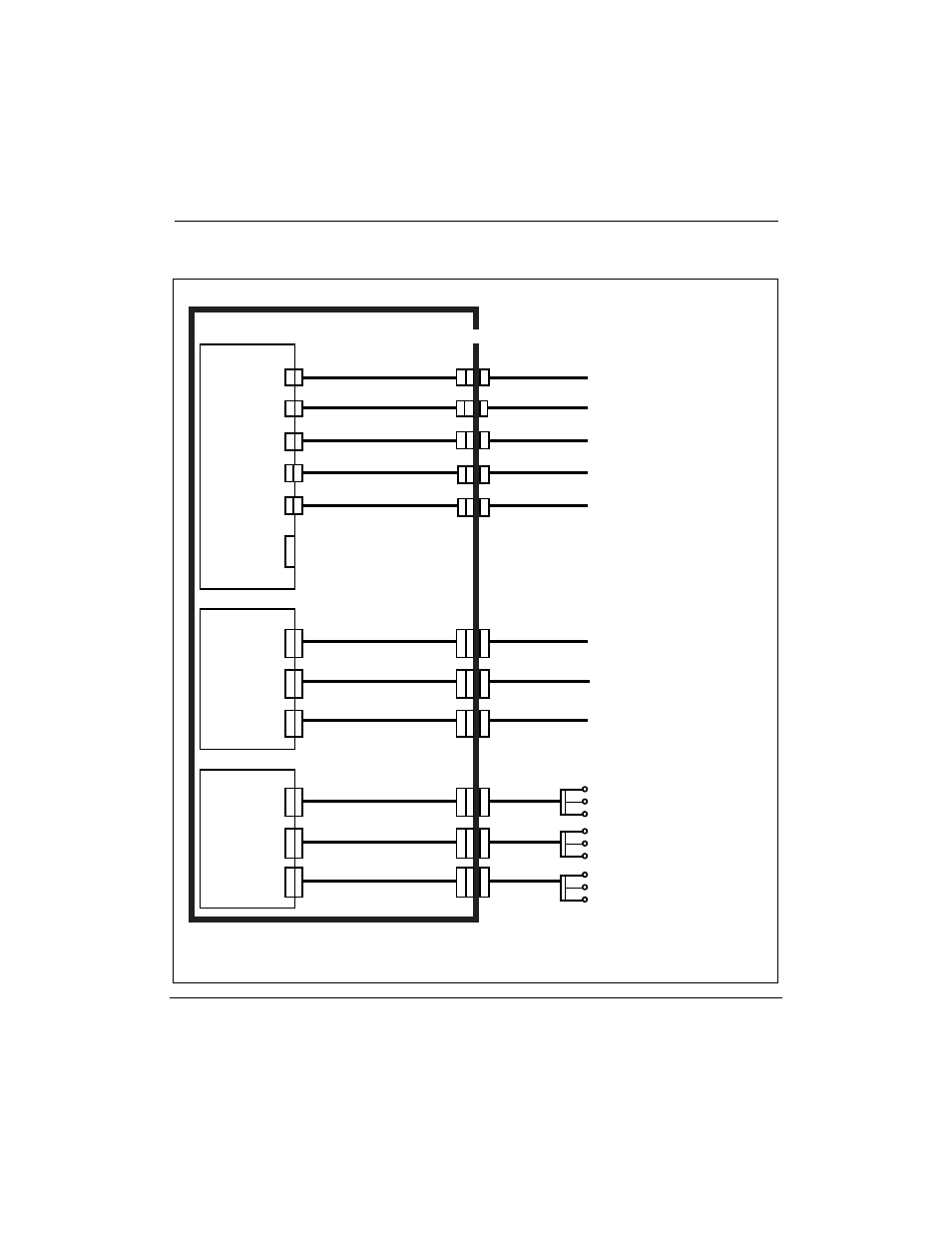

Figure 72
Application Module external cabling to and from generic I/O panel (CCR)
A (Port 4)
B (Port 5)
C (Port 6) To terminals
and/or
printers
A (Port 7)
B (Port 8)
(Not used)
A (Port 1)
B (Port 2)
C (Port 3)
NT7D47EA
Ethernet to LAN-based PC
SP1
SP2
SP3
NT7D79BA
NT7D79BA
Customer-supplied
(or NT7D61 cable)
to system console
SCSI A0379673 SCSI Terminator
MVME712M Transition card
Customer-supplied cable to
external modem (MVME712A)
NT7D79BA
SP4
NT7D58CA
(Not used by CCR)
Generic I/O panel
Application Module (INTERNAL CABLING)
(EXTERNAL CABLING)
NT7D95AA
SP5
SP3
SP1
NT7D95AA
MVME705B Transition card
NT7D95AA
SP3
SP2
SP1
NT6D51AA Transition card
NT7D95AA
NT7D95AA
NT8D96AE
NT8D96AE
NT8D96AE
card 3 conn 3
card 3 conn 2
card 3 conn 1
NT7D95AA
NT7D58 to ESDI or MSDL
card 2 conn 1
(Not used by CCR)
(Not used by CCR)
card 2 conn 2
card 2 conn 3
(see Figure 67)
Ethernet
NT7D47DA*
card 1 conn 1
card 1 conn 2
card 1 conn 3
DB15 f
card 1 conn 4
Ethernet
* Not shipped with the Application Module.
NT7D61 to SDI
(NT7D46 to SDI Paddleboard)
