176 Chapter 9: Meridian Link/CCR interface cabling
553-3202-210 Standard October 1998

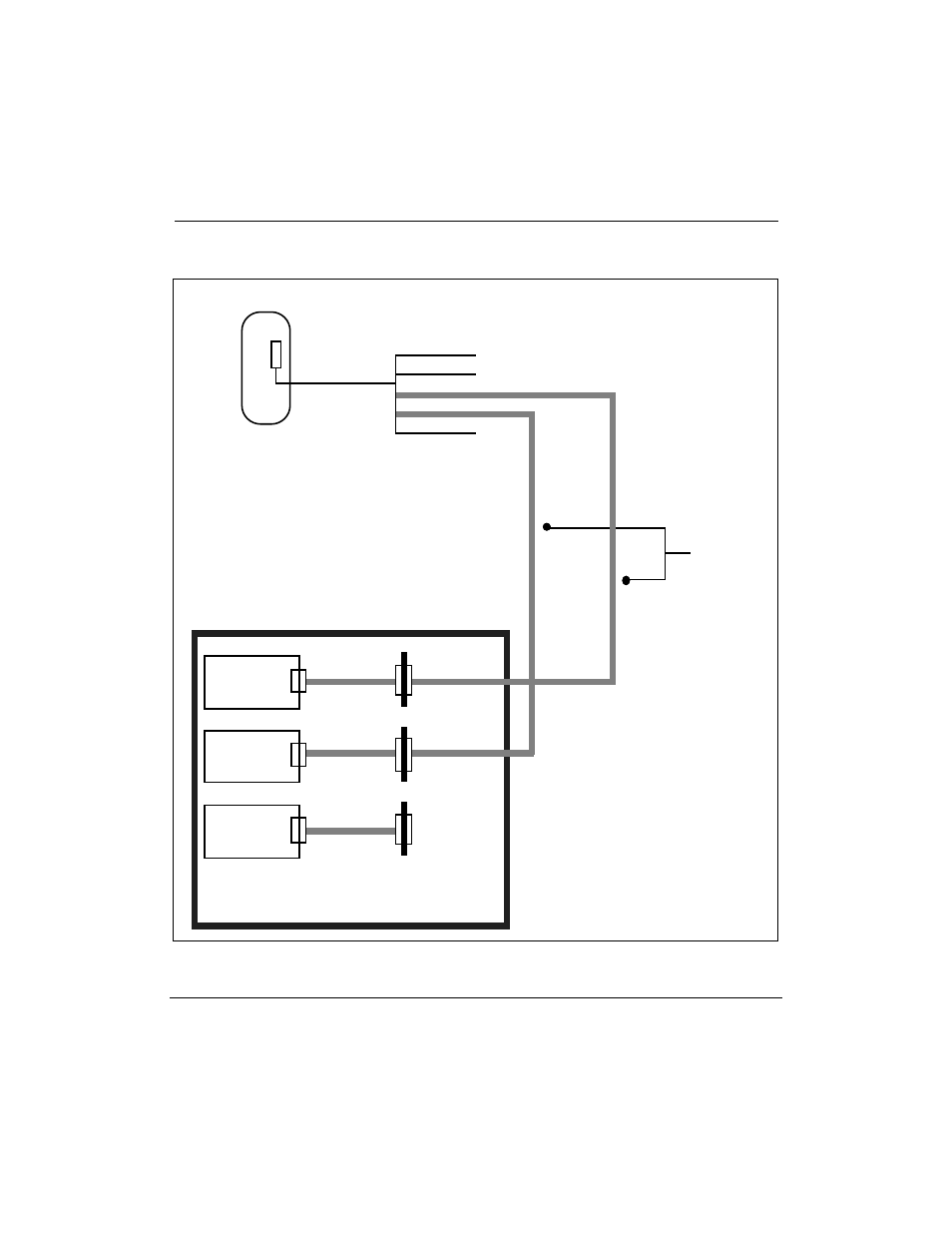

Figure 46
I/O cabling to Meridian 1 (SDI and ESDI) (Options 21Ð81 IPE Module)
NT7D58 to
SDI/ESDI
Meridian 1
SDI card
(see Note) NT8D82
QPC513
ESDI card
I/O panels
NT8D82
Note: Use the NT8D82 cable with all SDI cards except
the NT8D41 SDI Paddle Board. With the Paddle Board,
use an NT8D93A cable.
NT6D80
MSDL card NTND27AB
Part of IPE shelf
I/O panel
Ethernet
port 1
port 3
port 5
port 7
NT1R03AA
