Meridian America Link/Customer Controlled Routing User Manual
Page 167
Chapter 8: Hardware installation procedures 149
Meridian Link Release 5C/CCR Release 3C Installation and Upgrade Guide

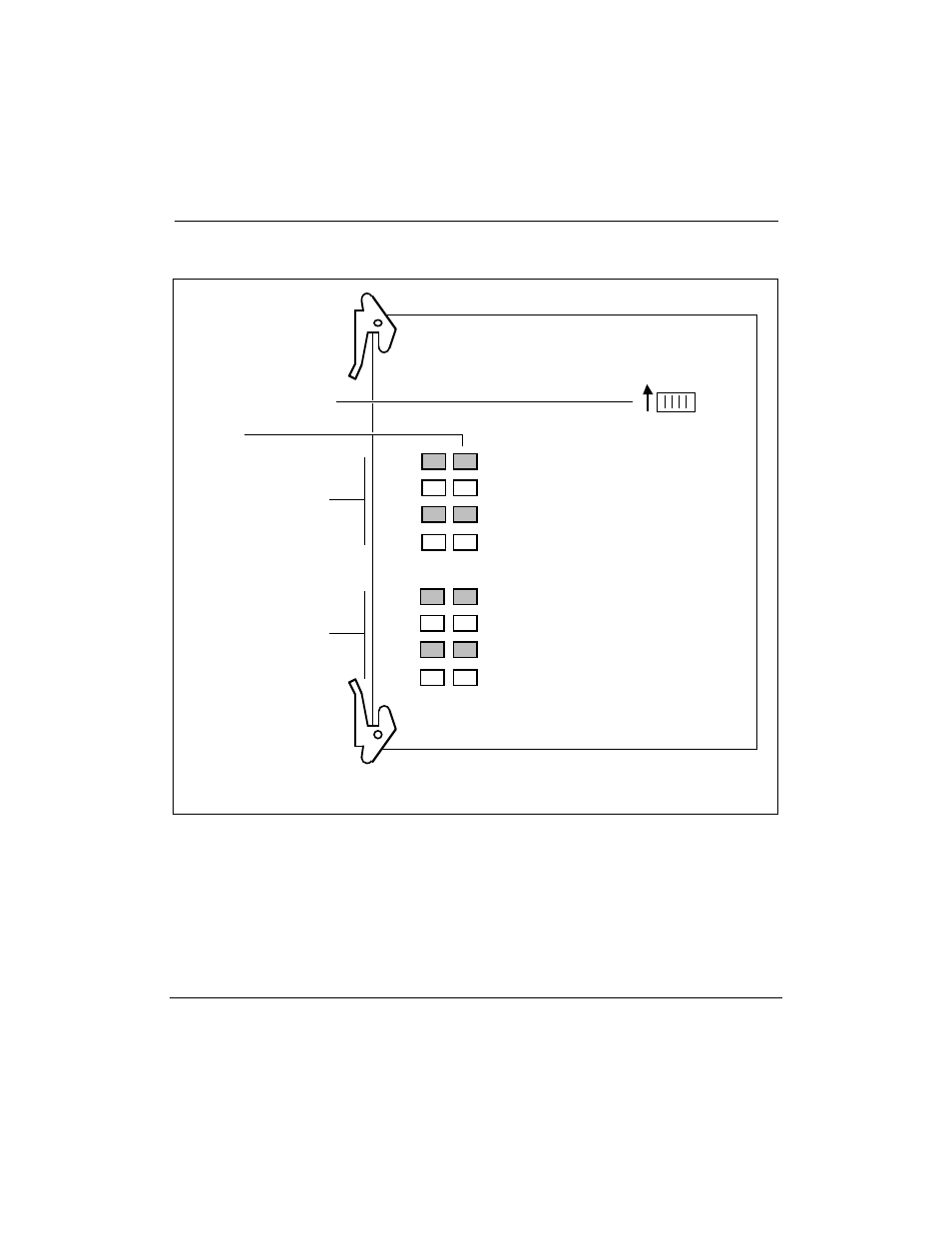

Figure 41
QPC513 ESDI card jumper and switch locations
1234
ON
Jumpers for port J1.
The port is always the
lower, even number.
Port address switch S2
RS-232
DCE
HS (RS-422)
DTE
RS-232
DCE
HS (RS-422)
DTE
RS-232
DCE
HS (RS-422)
DTE
RS-232
DCE
HS (RS-422)
DTE
Jumper
Jumpers for port J2.
The port is always the
higher, odd number.
Note 1: Place jumper plugs in sockets as shown. This selects the DCE and RS-232 options.
Note 2: This figure shows both high and low ports. Configure only the port you are going to use.
QPC513G Style B
¥
¥
