Chapter 9: Meridian Link/CCR interface cabling 171
Meridian Link Release 5C/CCR Release 3C Installation and Upgrade Guide

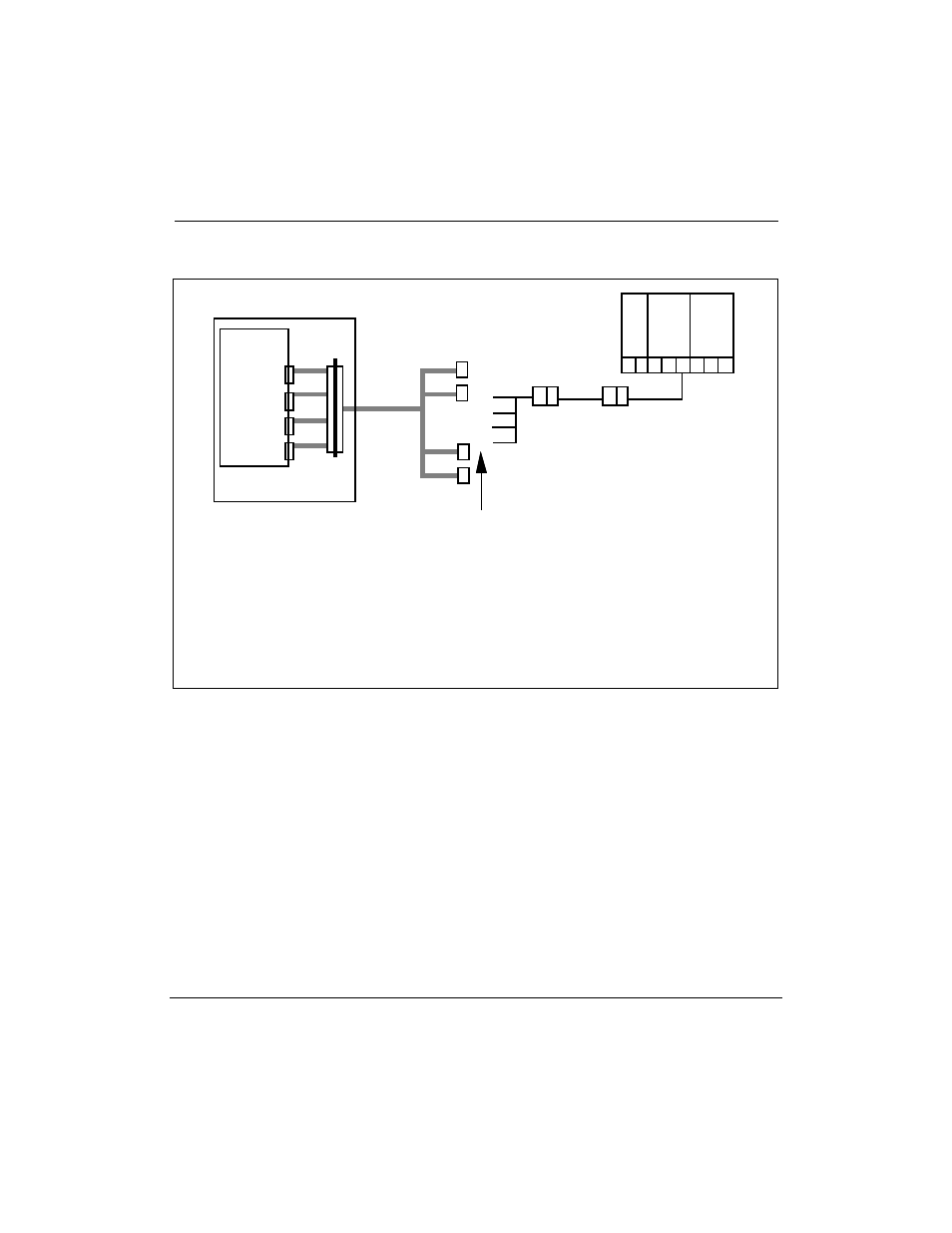

Figure 43
IPE Module Option 11 connections (Part 2)
Note 1:
Note 2:
Note 3:
It is recommended that the TDS/DTR card be
installed in position 1. The SDI/DCH card may be
installed in any other position except position 0
(for the CPU/Conf card).
Refer to the Meridian 1 Option 11 Installation
Guide (NTP 553-3011-210) for cross connections.
Use an NT1R03D extension cable if you need
additional length.
NTAK19BA
NTAK02
SDI/DCH
port 0
port 1
port 2
port 3
(4-port
cable)
J2-9
(Note 1)
Internal
bus
port 0
port 2
port 1
port 3
Meridian 1 Option 11
Connect an SDI port to port 3 for
conshare and an ESDI port to
port 5 for AML (link 0) (Note 3)
Method 3
Connector
Panel
NT1R03CA
(extension
cable)
NT1R03AA
(octopus
cable)
1
3
5
7
IPE
Module
