Figure 20 emc grounding clip on the chassis – Nortel Networks 1000M User Manual
Page 53
Main components of the Chassis system
53
•
modems or Data Communication Equipment (DCE) for remote access
to the system
•
on-site Data Terminating Equipment (DTE) or TTY terminal for accessing
the system
•
connecting blocks for the cross-connect terminal
•
transformers and centralized power supplies for items such as digit
displays on telephones
•
optional equipment such as music sources, RAN machines, paging
equipment, and CDR devices
•
NT1R20 Off-Premise Station Analog Line Card. Each card has eight
ports. Each of the units on the card can be configured to be operated as
an OPS or in an On-Premise (ONS) configuration
•
additional Modem Eliminator (NULL Modem without hardware
handshaking). The A0601397 converter may be required to interface
the DTE to the system.
•
industry-standard Ethernet Media Access Unit (MAU)
•
NTTK43 EMC grounding clip is required, for EMC compliance, on the
fan baffle on the lower right-hand side of chassis using 100BaseT
connections. Refer to

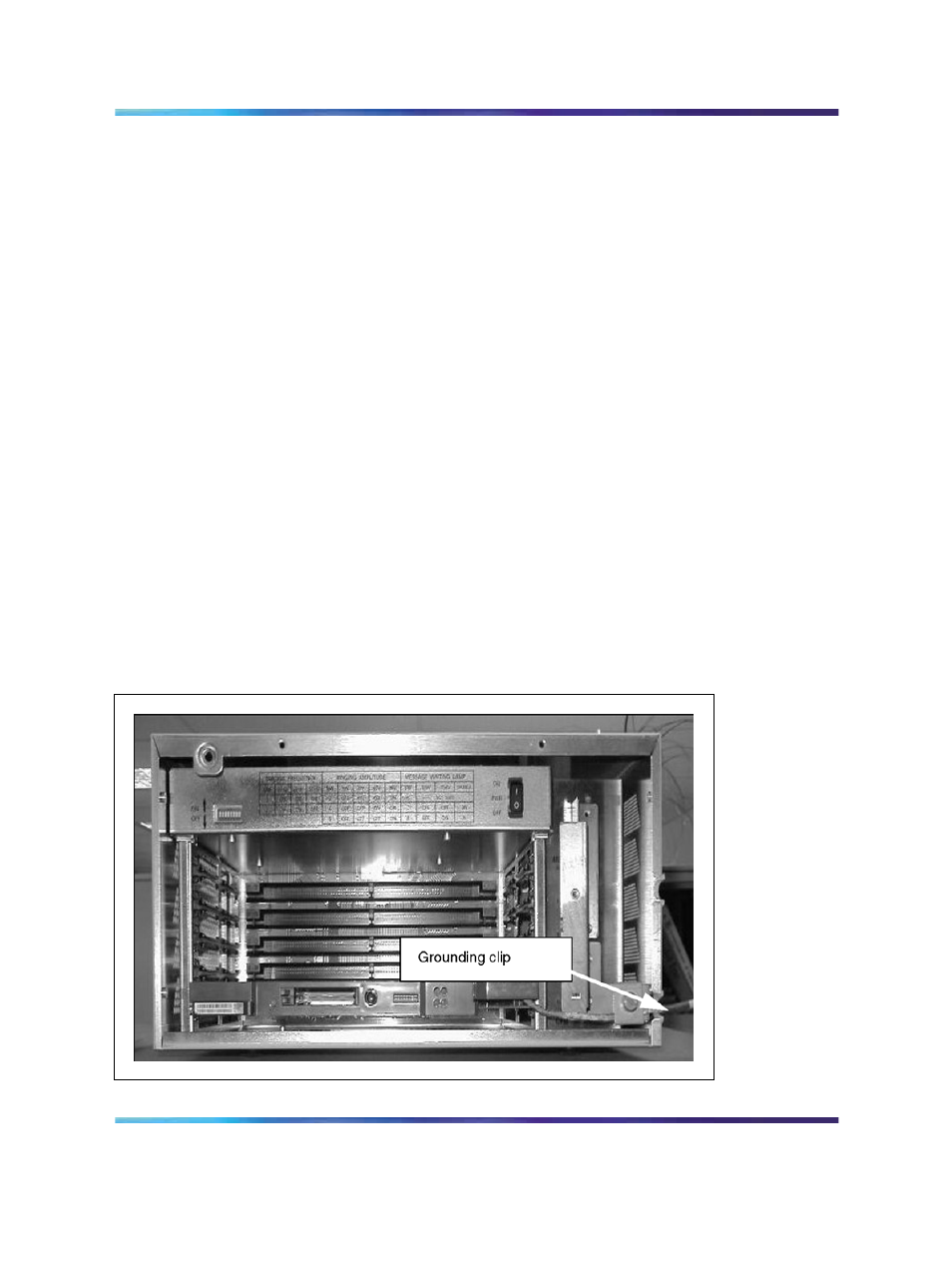

Figure 20 "EMC grounding clip on the chassis"
Figure 20
EMC grounding clip on the chassis
