Page 227
Connecting the cables
227

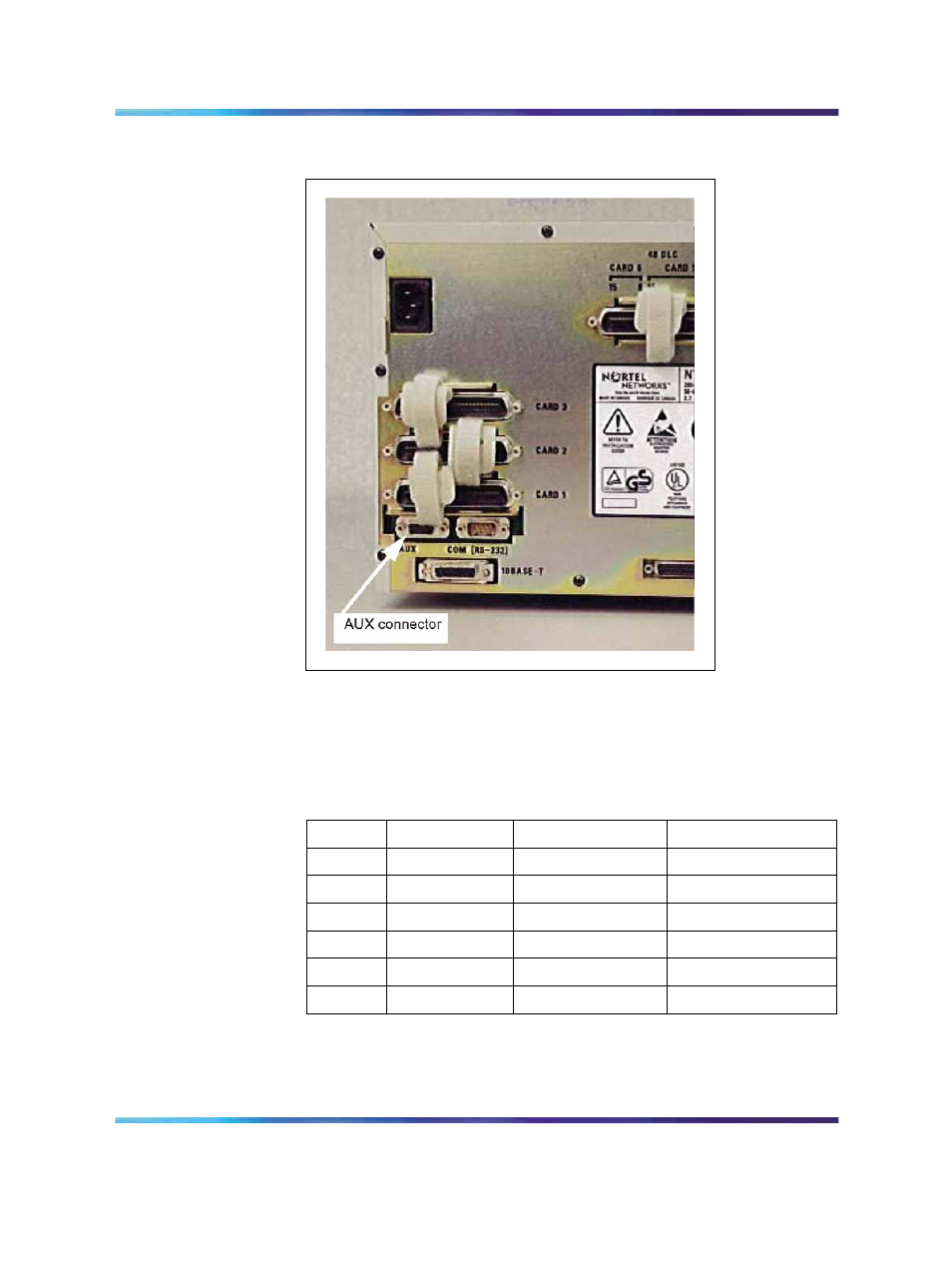

Figure 108
AUX cable connector
Terminate the AUX cable at the cross connect terminal, according
to
Table 30 "AUX cable terminations for the Chassis system" (page
Table 30
AUX cable terminations for the Chassis system
Color
Wire number
Designation
Connection
W-BL
1
BRTN
to QUA6-J1 1R
BL-W
2
BRTN
to QUA6-J1 2R
O-W
3
-48V AUX (250mA)
to QUA6-J1 25T, 25R
W-O
4
PFTS
to QUA6-J1 2T
G-W
5
Not used
Not used
W-G
6
Not used
Not used
6
For installations in Germany, complete the form shown in
"Cross connections record" (page 228)
for each card slot.
