Page 114
114
Mounting the chassis

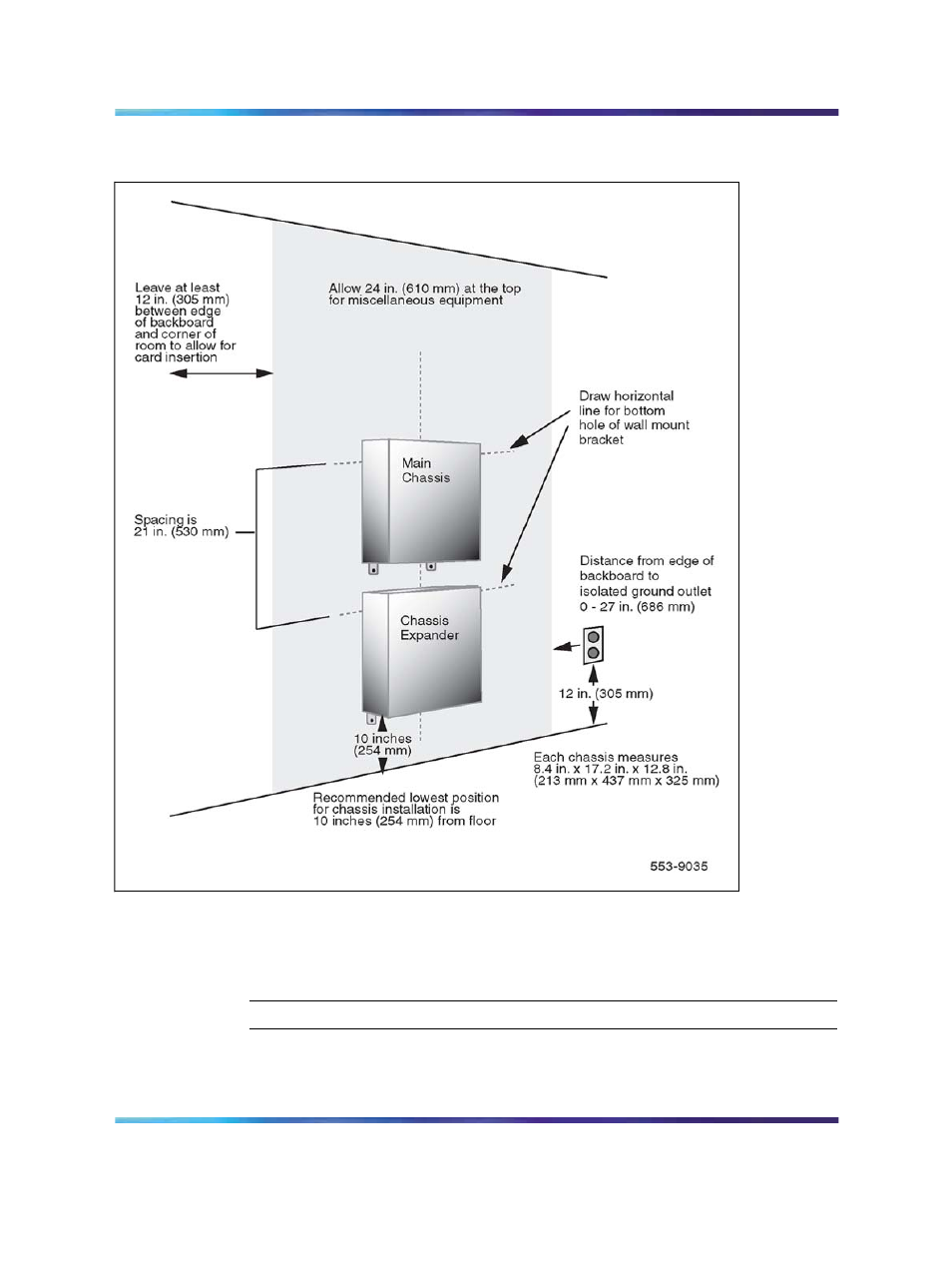

Figure 46
Typical layout for installing the chassis on a wall in a vertical position
Note: Leave space for the cross-connect terminal.
Procedure 9
Installing the chassis on a wall in a vertical position
Step
Action
1
Draw the vertical center line of the chassis on the plywood
backboard. Allow for clearance on the left and right of the chassis
Nortel Communication Server 1000
Communication Server 1000M and Meridian 1 Small System Installation and Commissioning
NN43011-310
01.04
Standard
Release 5.0
13 May 2008
Copyright © 2008, Nortel Networks
.
