196 Installing optional circuit cards

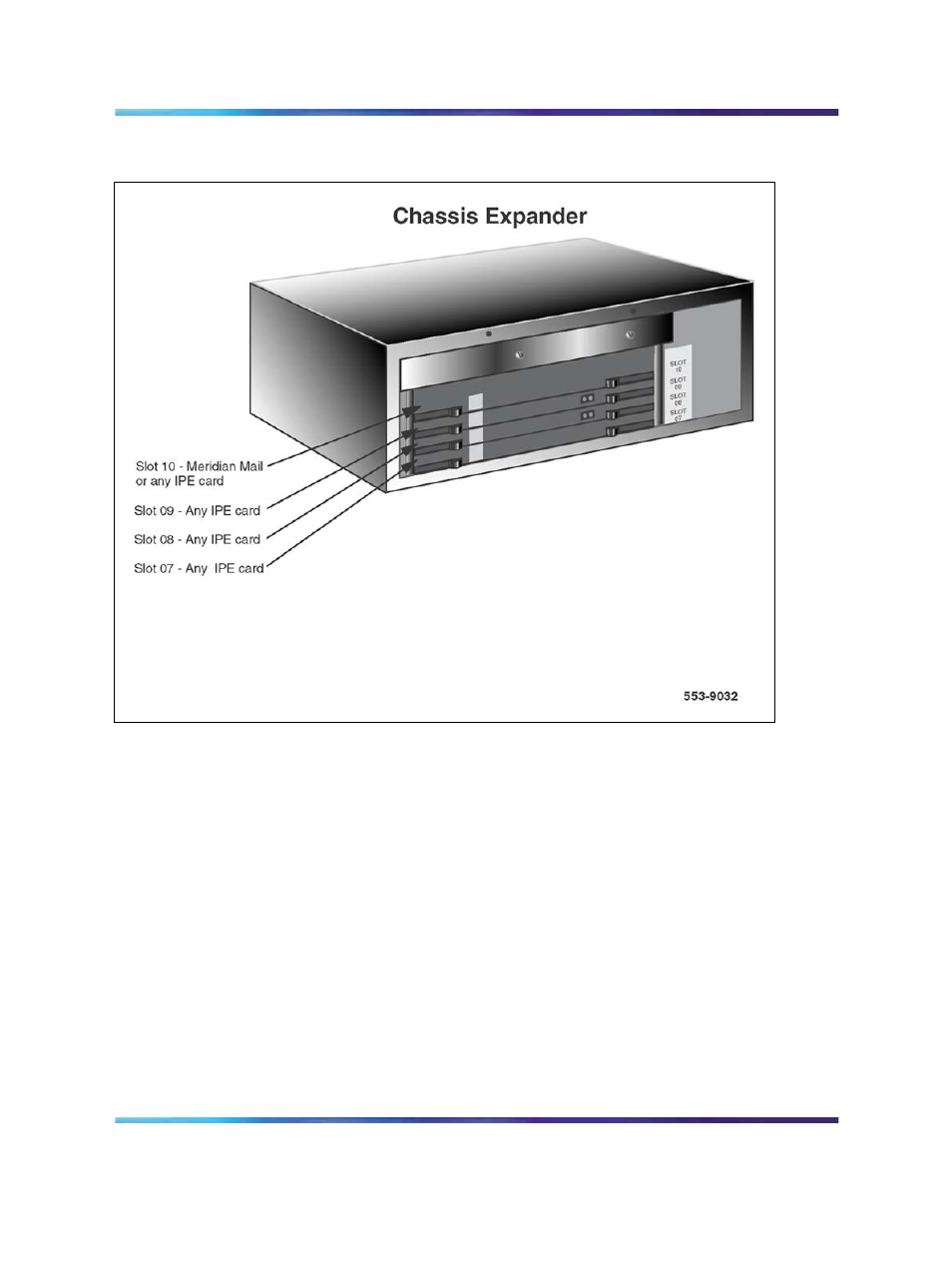

Figure 94
Circuit card assignments in the chassis expander
Note 1: See the card slot assignment table in the equipment layout
chapter of Communication Server 1000M and Meridian 1 Small System
Planning and Engineering (NN43011-220) for the cards that you can
insert in the chassis expander.
Note 2: To configure Meridian Mail, you must place the Meridian Mail
card in slot 10 of the chassis expander. The size of slot 10 is double that
of the other slots in the chassis. Slot 10 supports Meridian Mail and
other application cards that require a double slot.
Circuit cards
A circuit card displaying a symbol of a switch on its faceplate is equipped
with option switches or strapping plugs or both. Other circuit cards, such
as the NTDK20 SSC card, are capable of mounting daughterboards and
other add-on devices. For information on installing the NTDK20 card, refer
to
"Installing fiber expansion" (page 163) or "Installing IP expansion" (page
179) .
