Mounting in a 480 mm (19 in.) rack/equipment cabinet
109

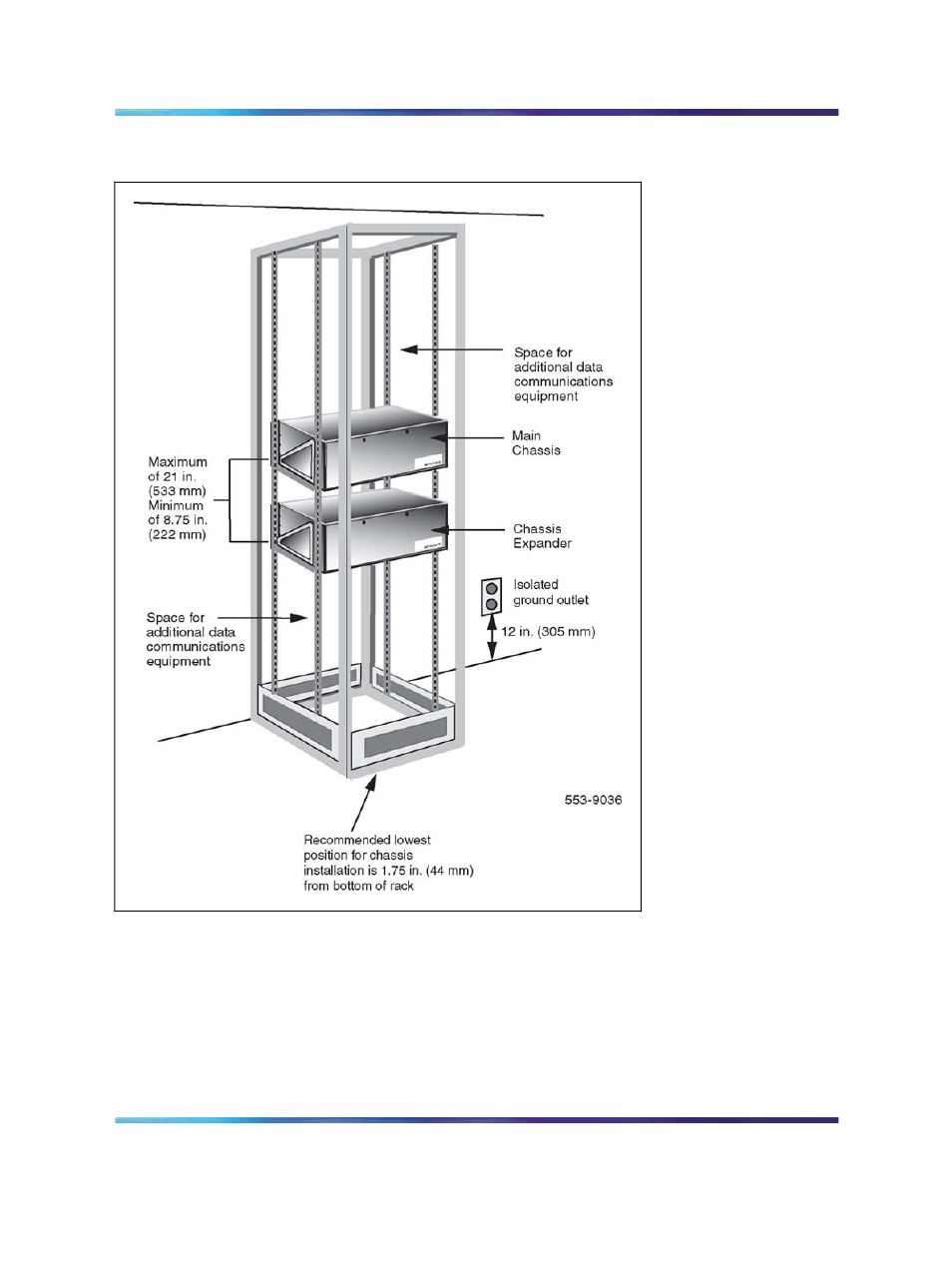

Figure 42
Typical layout for installing the chassis in a rack/equipment cabinet
Note 1: Leave wall space for the cross-connect terminal.
Note 2: The rack/equipment cabinet does not have to be right against
the wall. You can position the rack/equipment cabinet so that you have
access to both the front and back.
