Page 139
Power supplies
139
Switch settings
The power supplies are equipped with a series of switches which must be
set before the units are installed in the cabinet. Refer to
and NTDK72 power supply switch settings" (page 139)

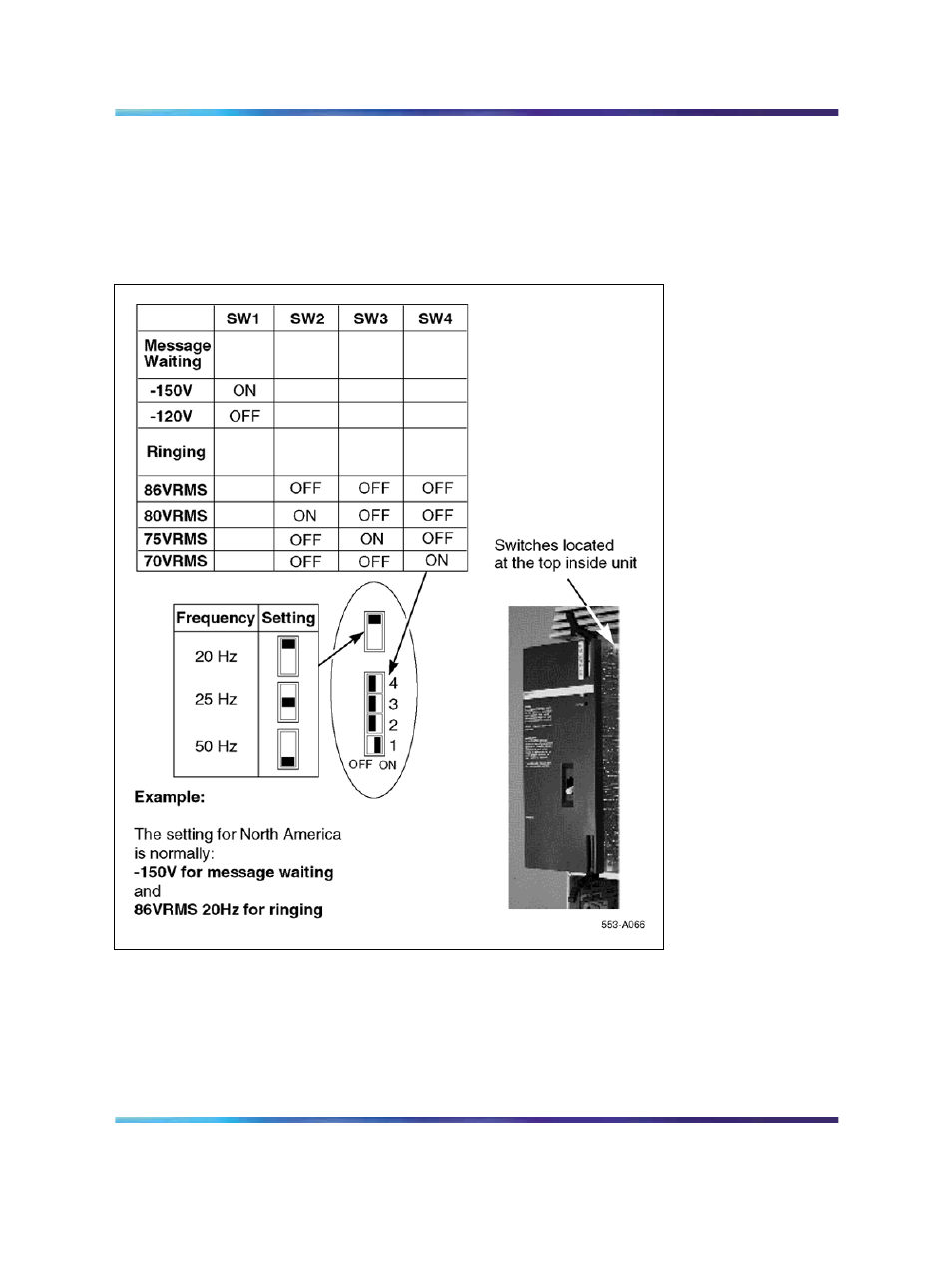

Figure 60
NTDK70 and NTDK72 power supply switch settings
AC power supply installation
AC power requirements
The AC-powered version requires a non-switched dedicated power outlet
installed within 1.8 m (6 ft) of each cabinet, with:
•
one non-switched dedicated outlet per cabinet with:
Nortel Communication Server 1000
Communication Server 1000M and Meridian 1 Small System Installation and Commissioning
NN43011-310
01.04
Standard
Release 5.0
13 May 2008
Copyright © 2008, Nortel Networks
.
