Installing the NTDK20 SSC card on the Main Cabinet or Chassis
167
Note 2: If using glass fiber-optic cable, see
"Installing glass fiber-optic cable" (page 172)
.
5
Press firmly on the standoffs to ensure that the daughterboards are
secured to the SSC card.
6
Route the fiber cable through the Cable Routing Guide on the SSC
card.
7
Insert the SSC card into slot 0 of the Main Cabinet or Chassis.
8
Route the fiber cable through the Cable Routing Guide under the
main cabinet.
Note: Be sure to wrap the cable a minimum of one complete
loop around the Cable Routing Guide to allow extra cable for
removing the SSC card later.
—End—

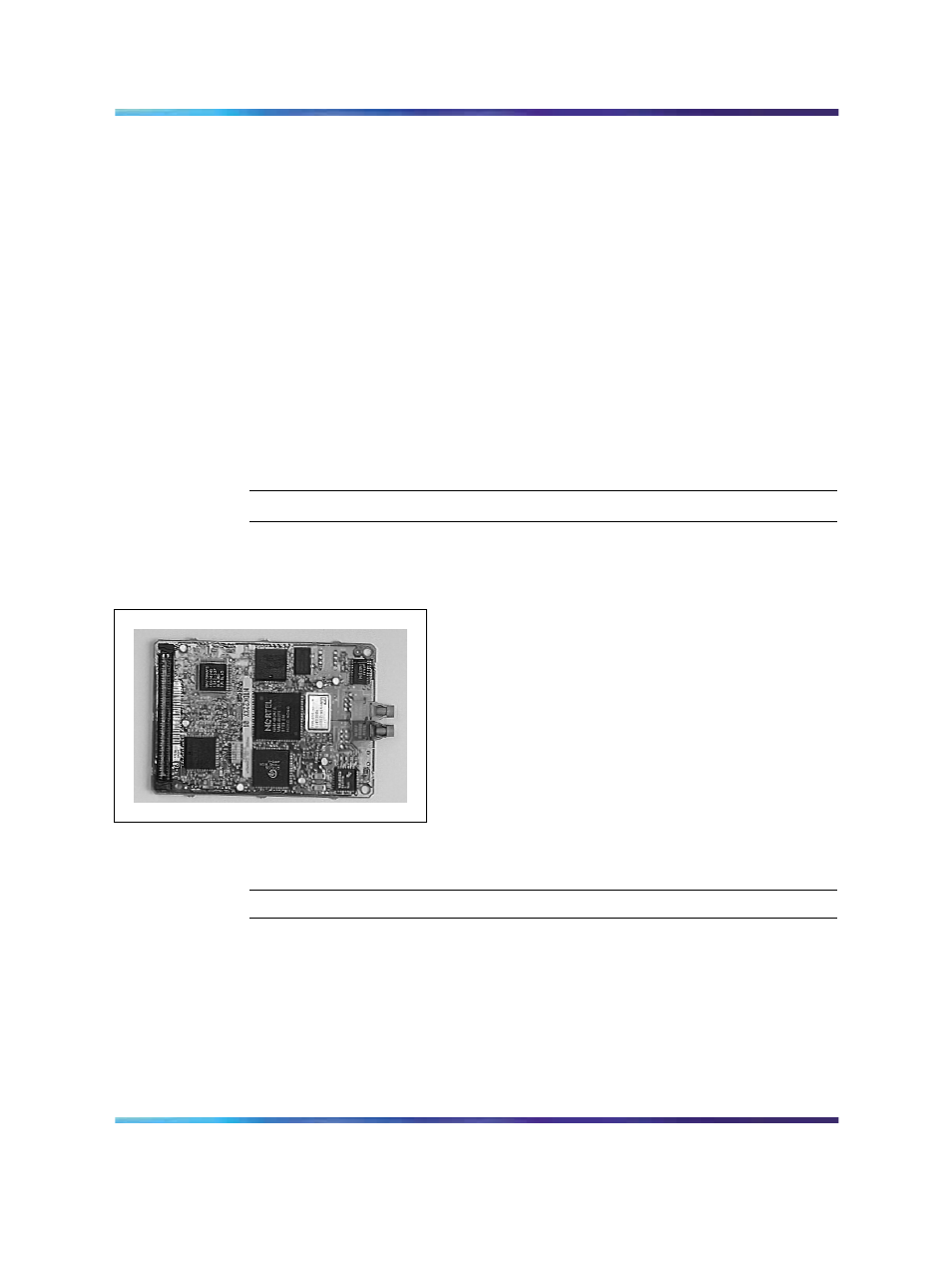

Figure 75
NTDK22 single-port Fiber Expansion daughterboard
Procedure 22
Installing the dual-port Fiber Expansion daughterboards on the SSC card
Step
Action
1
Put on the antistatic wrist strap.
2
Place the SSC card on a clean, flat, ESD-dissipated surface.
3
Install the Fiber Expansion daughterboard for Expansion
Cabinets/Chassis 1 and 3 on the connector as shown in
"Cabinet or chassis assignments for dual-port daughterboards"
(page 169)
(the upper connector).
