Page 169

Installing the NTDK20 SSC card on the Main Cabinet or Chassis

169

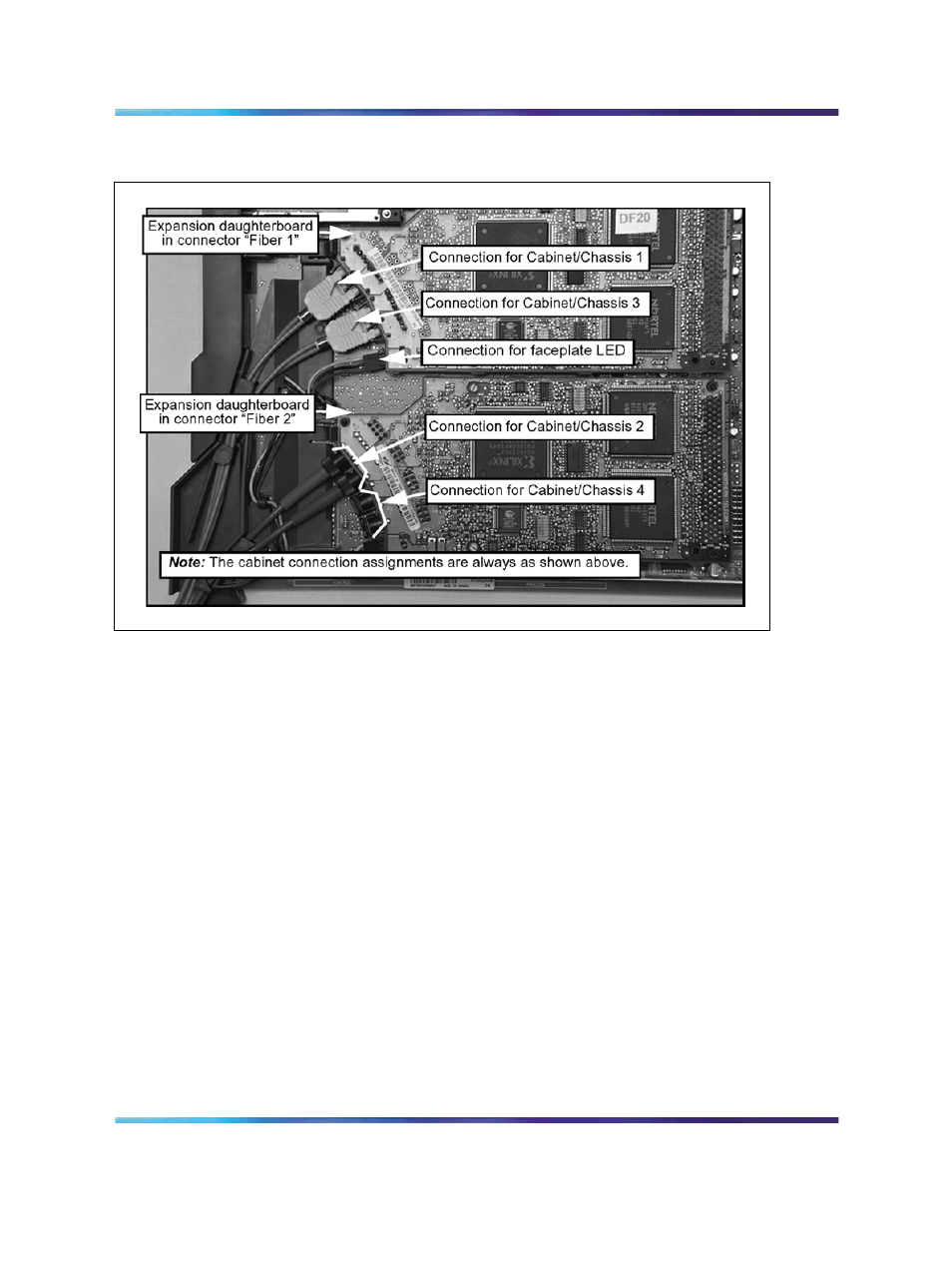

Figure 77
Cabinet or chassis assignments for dual-port daughterboards

Installing fiber expansion daughterboard cables

An A0632902 10 m plastic fiber-optic cable is used to connect the Main
Cabinet or Chassis to an Expansion Cabinet or Chassis located within 10 m
(33 ft) when using short-haul fiber daughterboards.

A glass fiber-optic cable, supplied and installed by a local facilities provider,
can be used to connect an expansion cabinet located up to 3 km (1.8 mi)
from the main cabinet when using long-haul fiber daughterboards.

Do not staple or twist fiber-optic cable. Do not bend it beyond a 35 mm
(1.5 in.) bend radius (90û soft bend).
