Mounting in a 480 mm (19 in.) rack/equipment cabinet

111

To determine the front of the bracket, locate the "L". This "L" must be
at the top of the bracket and must face to the front of the chassis.

Attach the right ear bracket (marked with an "R") to the holes on the
right side of the chassis.
Use two #8-32 machine screws. Position the ear bracket so that
the four holes on the bracket flange are nearer to the back of the
chassis. To determine the front of the bracket, locate the "R". This
"R" must be at the top of the bracket and must face to the front of the
chassis. See

Figure 44 "Right ear bracket installed on the chassis"

(page 111)

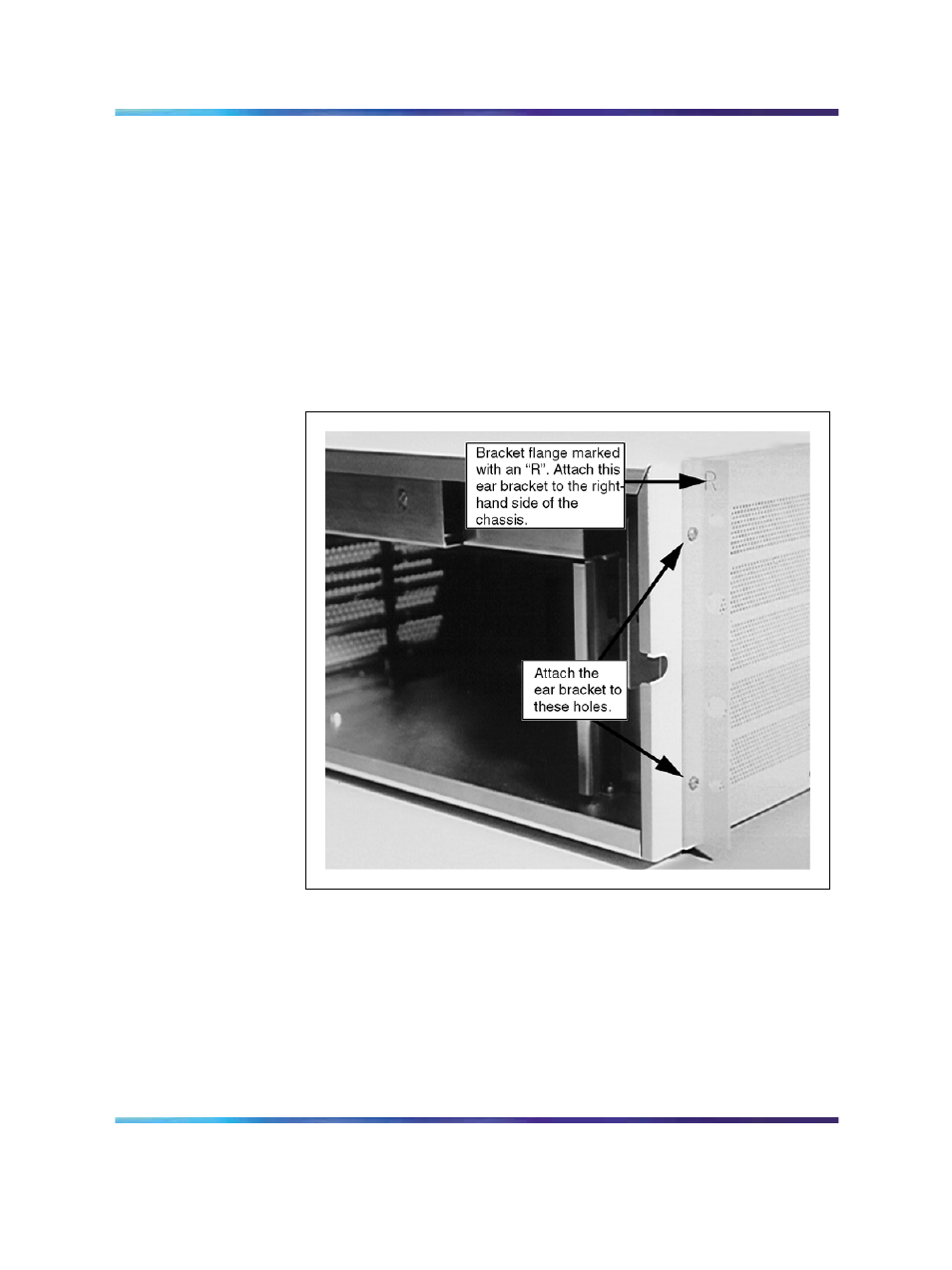

Figure 44
Right ear bracket installed on the chassis

Place the chassis on the chassis guide brackets.
Carefully slide the chassis into the rack/equipment cabinet until
the ear brackets come to rest against the rack/equipment cabinet
support.

Use the four remaining #12-24 self-tapping screws to fasten the
chassis to the rack/equipment cabinet supports (two screws on each
side). Make sure that the back of the chassis is on the chassis guide
