208 Installing optional circuit cards
designated connector on the daughterboard. Once inserted, lock
the connector in place by turning it a half turn clockwise.
5 Insert the NTDK20 SSC card in the CPU slot (slot 0) of the chassis.
—End—

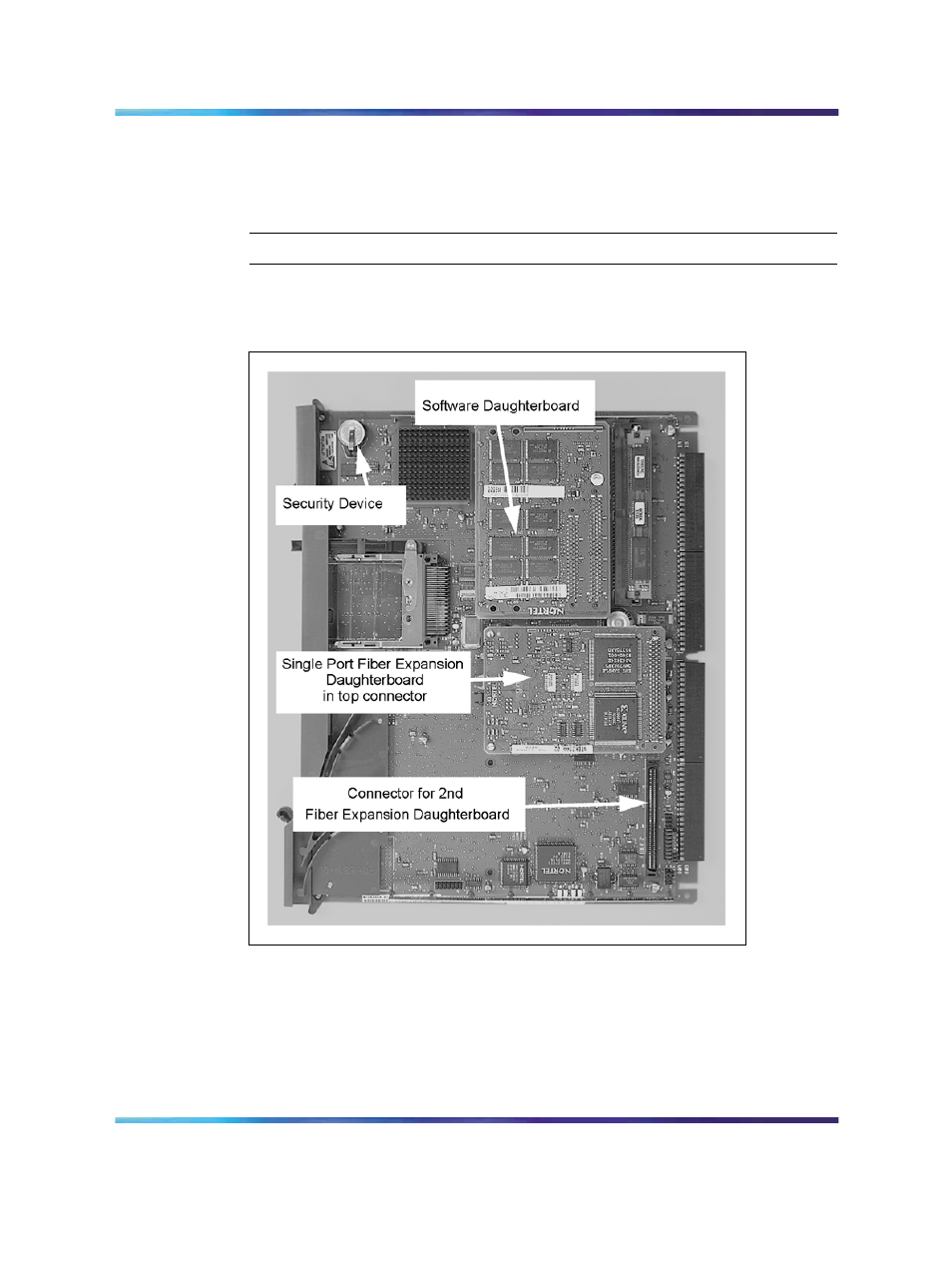

Figure 98
Fiber Expansion Daughterboards on the NTDK20 SSC card
Nortel Communication Server 1000
Communication Server 1000M and Meridian 1 Small System Installation and Commissioning
NN43011-310 01.04 Standard
Release 5.0 13 May 2008
Copyright © 2008, Nortel Networks
.
