Power supplies 145

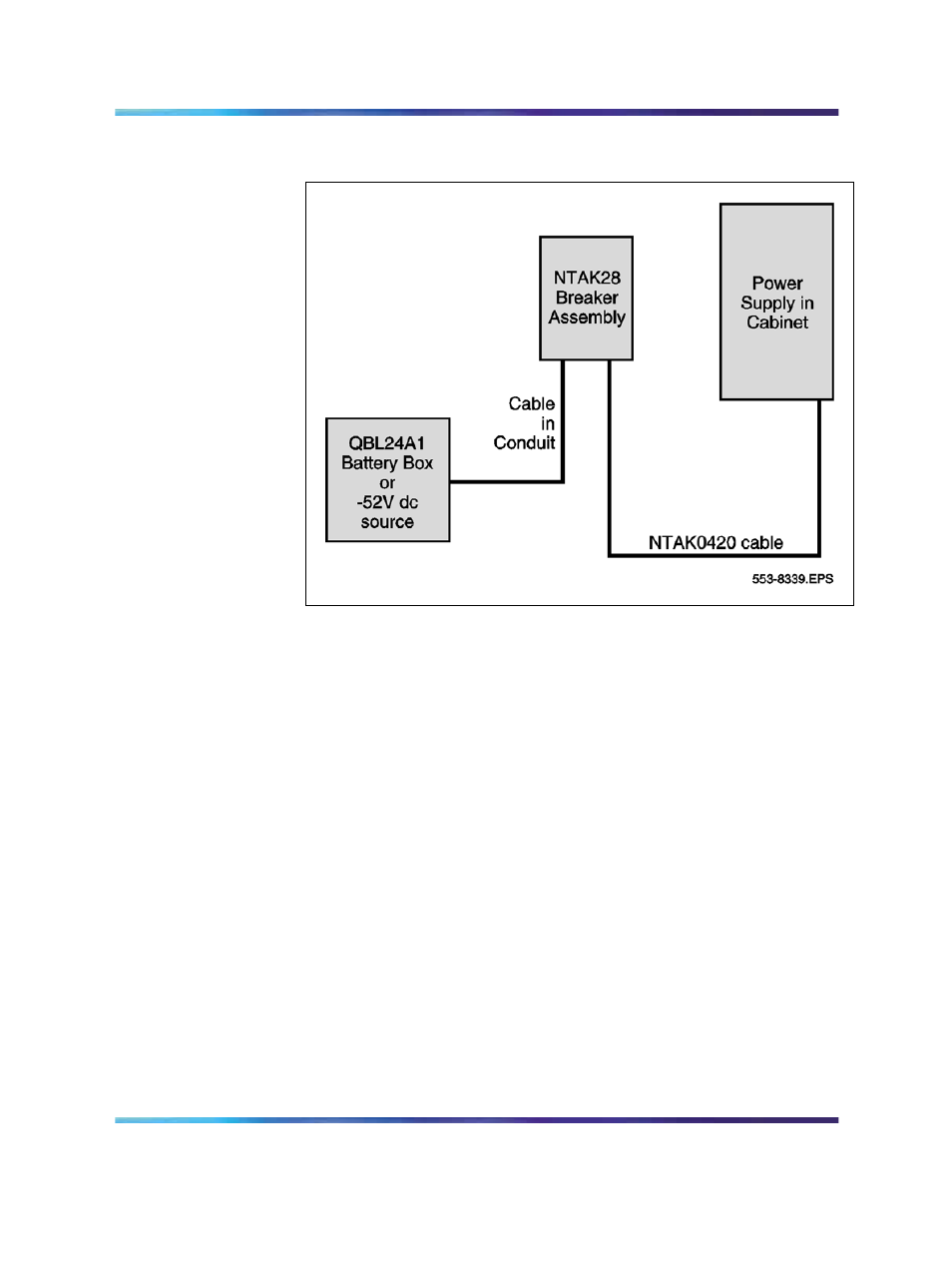

Figure 64
NTAK28 Breaker Assembly location
8 Set the breakers on the NTAK28 Breaker Assembly and on the
NTDK72 power supply to OFF.
9 Connect the other end of the DC power cable (NTAK0420 cable) to
the connector on the DC breaker assembly.
10 Connect the NTAK28 Breaker Assembly to a rectifier or other DC
power source as shown in
Figure 65 "Power connection at the
NTAK28 breaker assembly" (page 146) .
