Page 42
42
Chassis system equipment

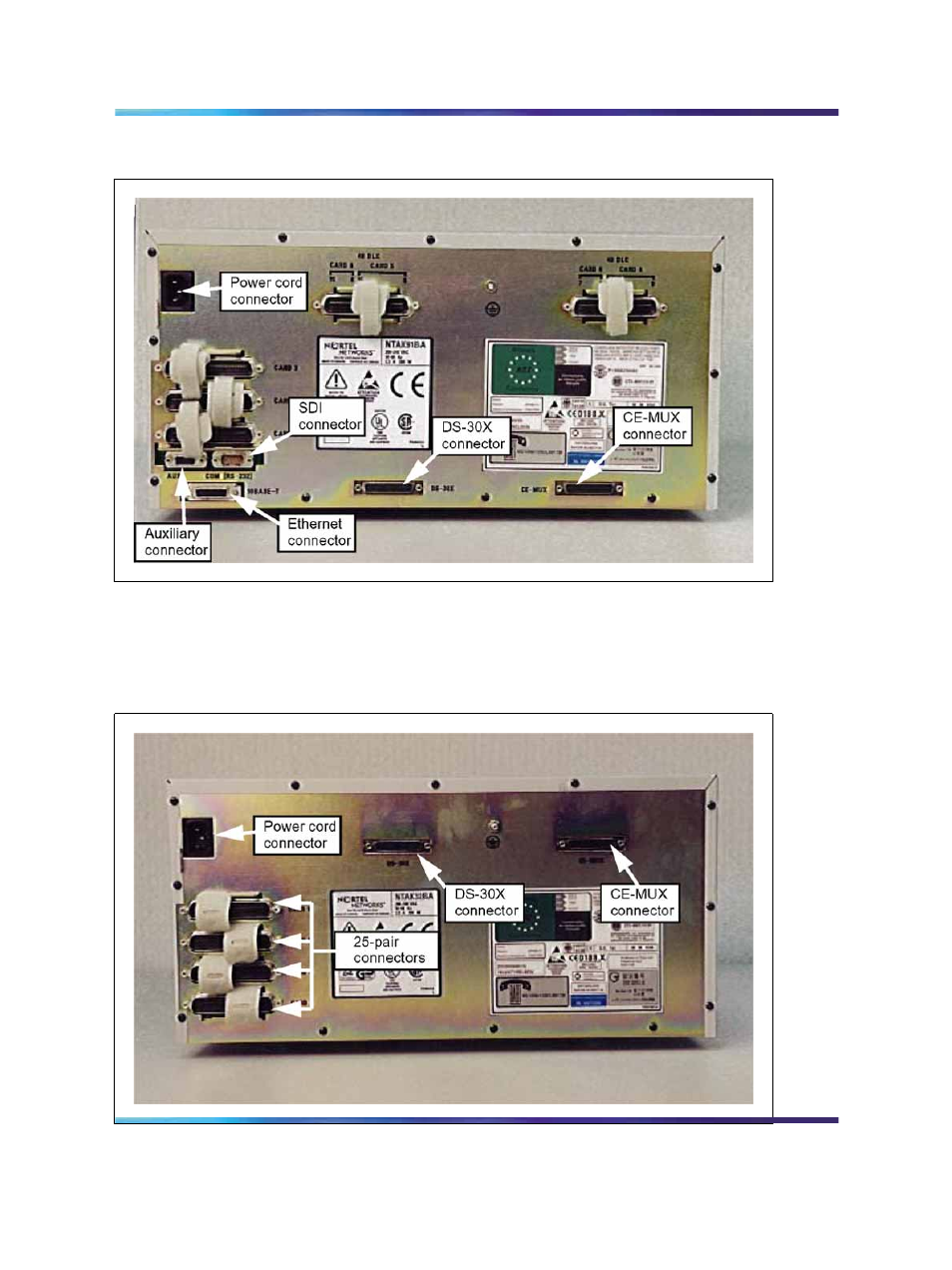

Figure 17
Connectors on the back of the chassis
Figure 18 "Connectors on the back of the chassis expander" (page
42)
shows the connectors on the back of the chassis expander.
Figure 18
Connectors on the back of the chassis expander
Nortel Communication Server 1000
Communication Server 1000M and Meridian 1 Small System Installation and Commissioning
NN43011-310
01.04
Standard
Release 5.0
13 May 2008
Copyright © 2008, Nortel Networks
.
