174 Installing fiber expansion

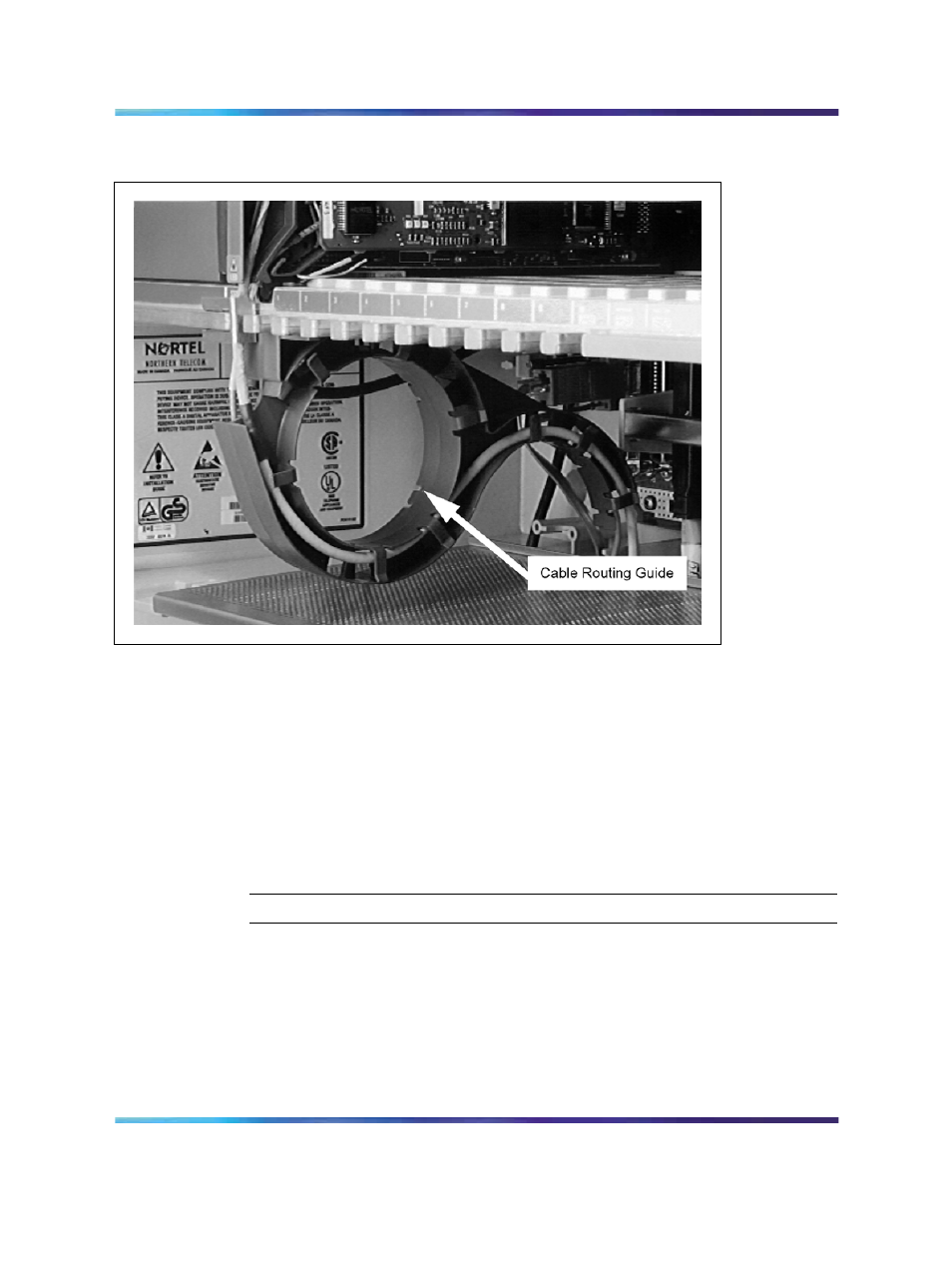

Figure 81
Cable Routing Guide under main cabinet
Installing Fiber Receiver cards on expansion cabinets and chassis
Fiber Expansion Cabinets or Chassis require a Fiber Receiver card. See
Table 22 "Fiber Expansion daughterboards and Fiber Receiver cards" (page
166)
for the Fiber Receiver cards and their corresponding Fiber Expansion
daughterboards.
This section describes the steps necessary to connect the cables and install
the Fiber Receiver card on the Expansion Cabinet or Chassis.
Procedure 25
Installing the Fiber Receiver card
Step Action
1 Put on the antistatic wrist strap.
2 Place the Fiber Receiver card on a clean, flat, ESD-dissipated
surface.
3 Remove the protective plugs from the connectors on the Fiber
Receiver card.
4 Install the fiber-optic cable:
