168 Installing fiber expansion
4 Install the Fiber Expansion daughterboard for Expansion
Cabinets/Chassis 2 and 4 on the connector as shown in
Figure 77
"Cabinet or chassis assignments for dual-port daughterboards"
(page 169)
(the lower connector).
5 Connect the two faceplate LED cables to the 3-pin header on the two
daughterboards. See
Figure 77 "Cabinet or chassis assignments for
dual-port daughterboards" (page 169) .
6 Press firmly on the standoffs to ensure that the cards are secured
to the SSC.
7 Route the cables through the SSC cable router on the SSC card.
Refer to
Figure 79 "Fiber-optic cable connection" (page 172) .
8 Insert the SSC card into slot 0 of the Main Cabinet or Chassis.
9 Route the fiber cable through the Cable Routing Guide under the
main cabinet.
Note 1: Be sure to wrap the cable a minimum of one complete
loop around the Cable Routing Guide to allow extra cable for
removing the SSC card later.
Note 2: When both Fiber and IP Expansion daughterboards
coexist in a system, configure the Fiber Expansion daughterboard
as expansions 1 and 3 and the IP Expansion daughterboard
as expansions 2 and 4.
—End—

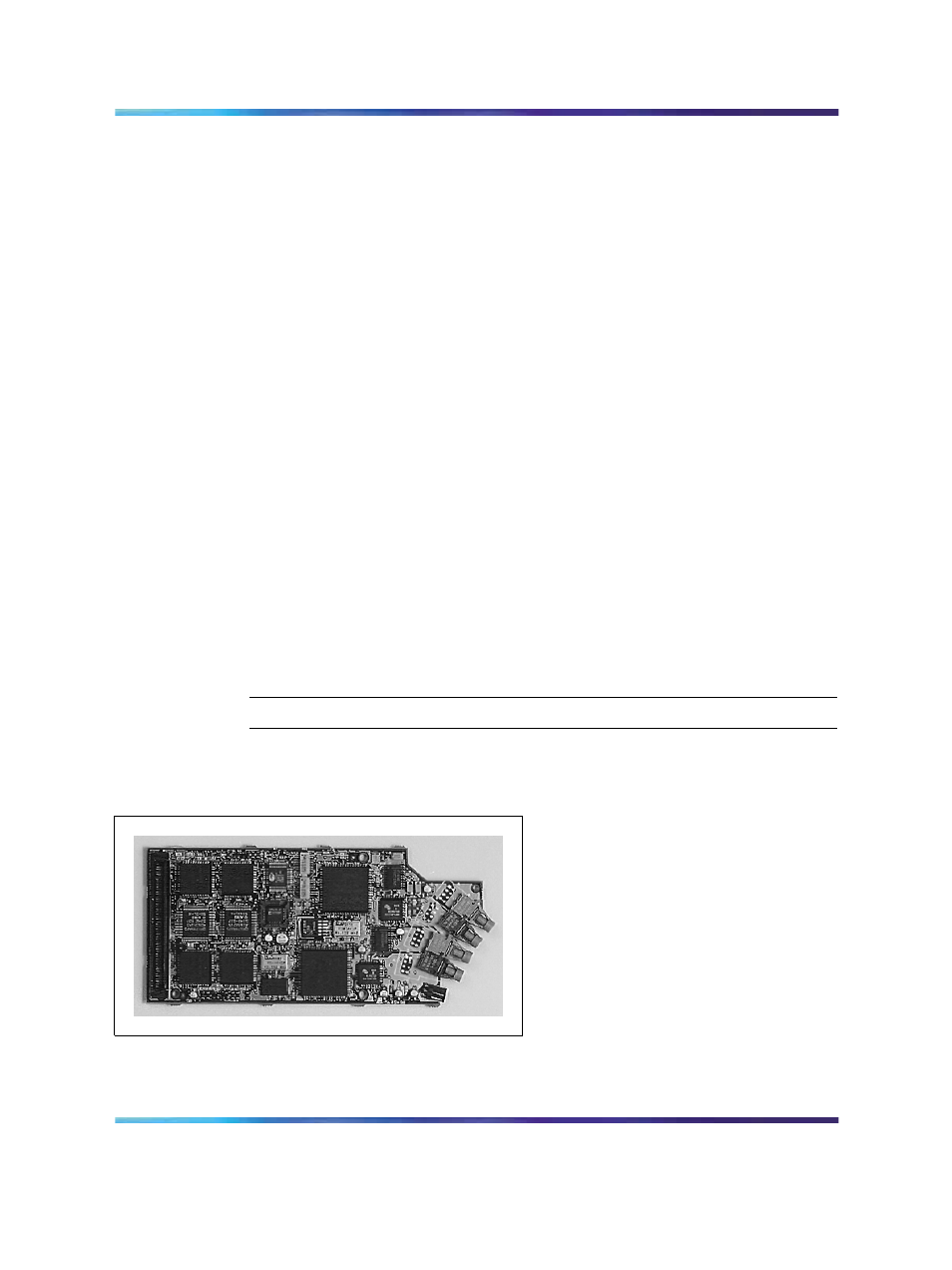

Figure 76
NTDK84 dual-port Fiber Expansion daughterboard, 10 m (33 ft)
Nortel Communication Server 1000
Communication Server 1000M and Meridian 1 Small System Installation and Commissioning
NN43011-310 01.04 Standard
Release 5.0 13 May 2008
