Main components of the Chassis system
41

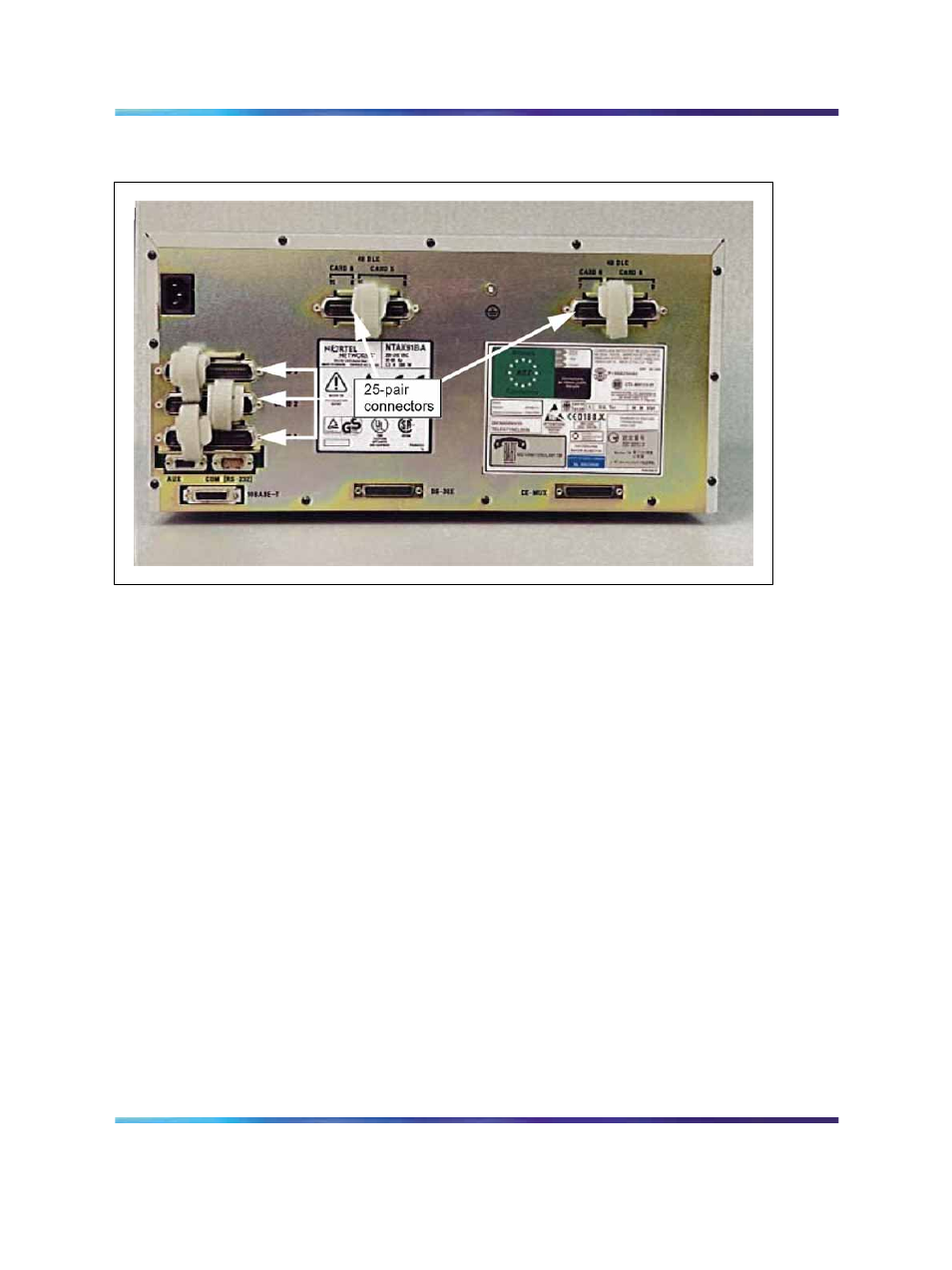

Figure 16
25-pair cable connectors on the back of the chassis
The Auxiliary (AUX), Serial Data Interface (SDI), and Ethernet connectors
are on the back left-hand side of the chassis. See
the back of the chassis" (page 42)
.
The AUX port connects auxiliary equipment, such as a Power Failure
Transfer Unit (PFTU), to the Chassis system. The SDI connector in the
chassis interfaces three SDI ports using a three-port SDI cable. The
Ethernet connector in the chassis provides a 10 Mbit Ethernet network
interface. The Ethernet network interface accepts an industry-standard
Media Access Unit (MAU). Insert the Cat5 Ethernet cable into this MAU.
The back of the chassis also contains connectors for connecting the
chassis and the chassis expander. These connectors are for the DS-30X
and CE-MUX connections. See
Figure 17 "Connectors on the back of the
.
The power connector is at the back of the chassis on the upper left-hand
side. See
Figure 17 "Connectors on the back of the chassis" (page 42)
Secure the power cord with a cable tie.
