Installing and connecting cross-connect terminals

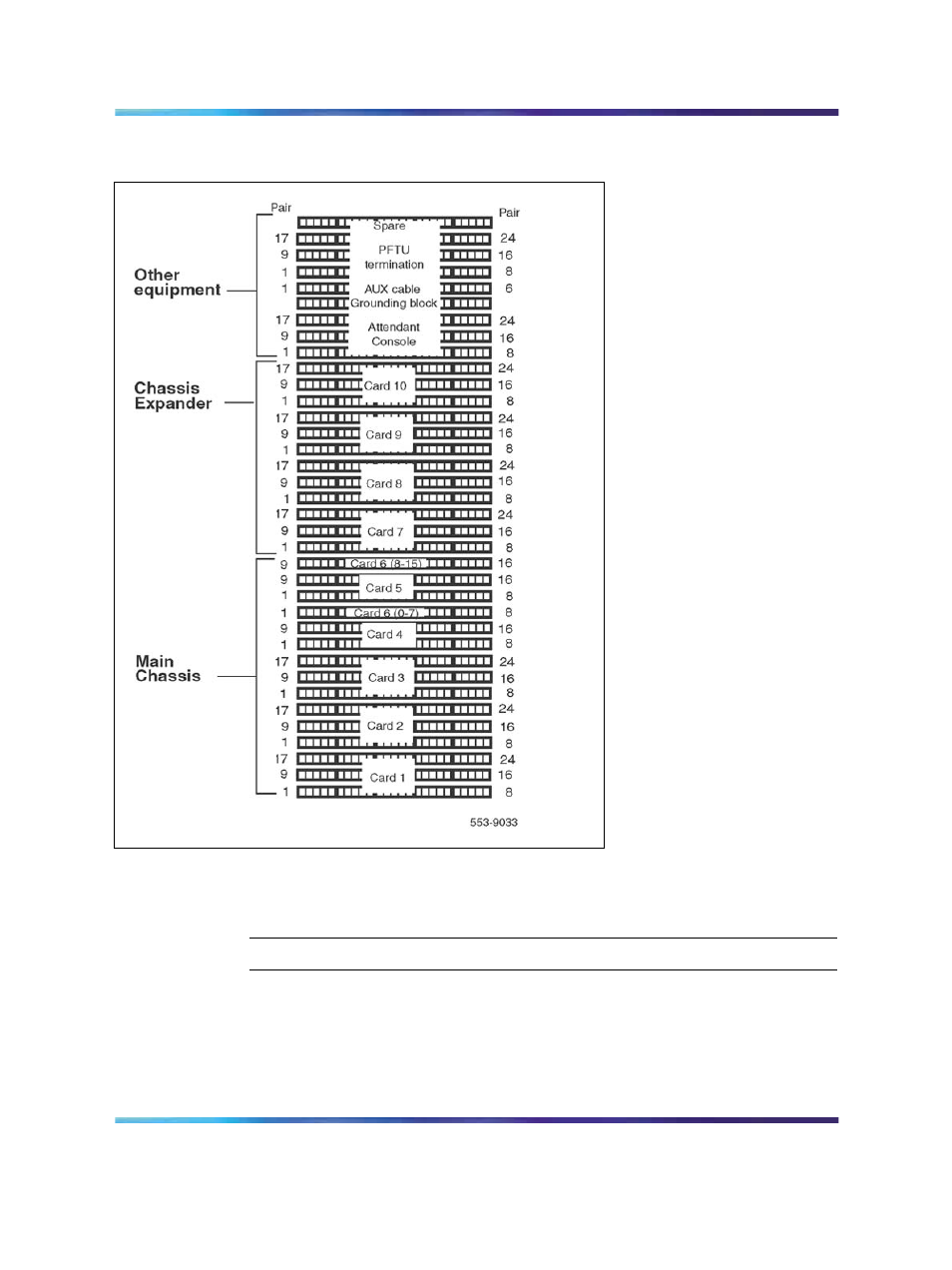

Figure 105
Typical Krone cross-connect terminal layout for the Chassis system

Note: One 25-pair cable contains Card 4 and Card 6 (units 0–7).
Another 25-pair cable contains Card 5 and Card 6 (units 8–15).

—End—
