AlliedView™-EMS 4.0.3 Device Management Guide Page 436 of 468
LED State Description
DUP
Green
Orange
The port is operating in full-duplex mode.
The port is operating in half-duplex mode.
LT Green Link Test is enabled
SML Green Smart Missing Link is enabled
ML Green Missing Link is enabled
OAMB Green OAM Bypass is enabled
OAMV Green OAM Visible is enabled
LCDS Green Line Card Dip Switch is enabled
Note - The Module Name parameter always displays 'yyyyyyyy' as its default value when
not yet configured.
Note - AT-CV5M01: The current firmware version does not allow the Port Mode
parameter of FX type of ports to be configured. Attempting to configure this parameter
other than its current Port Mode value will result in the error message: "noSuchName."

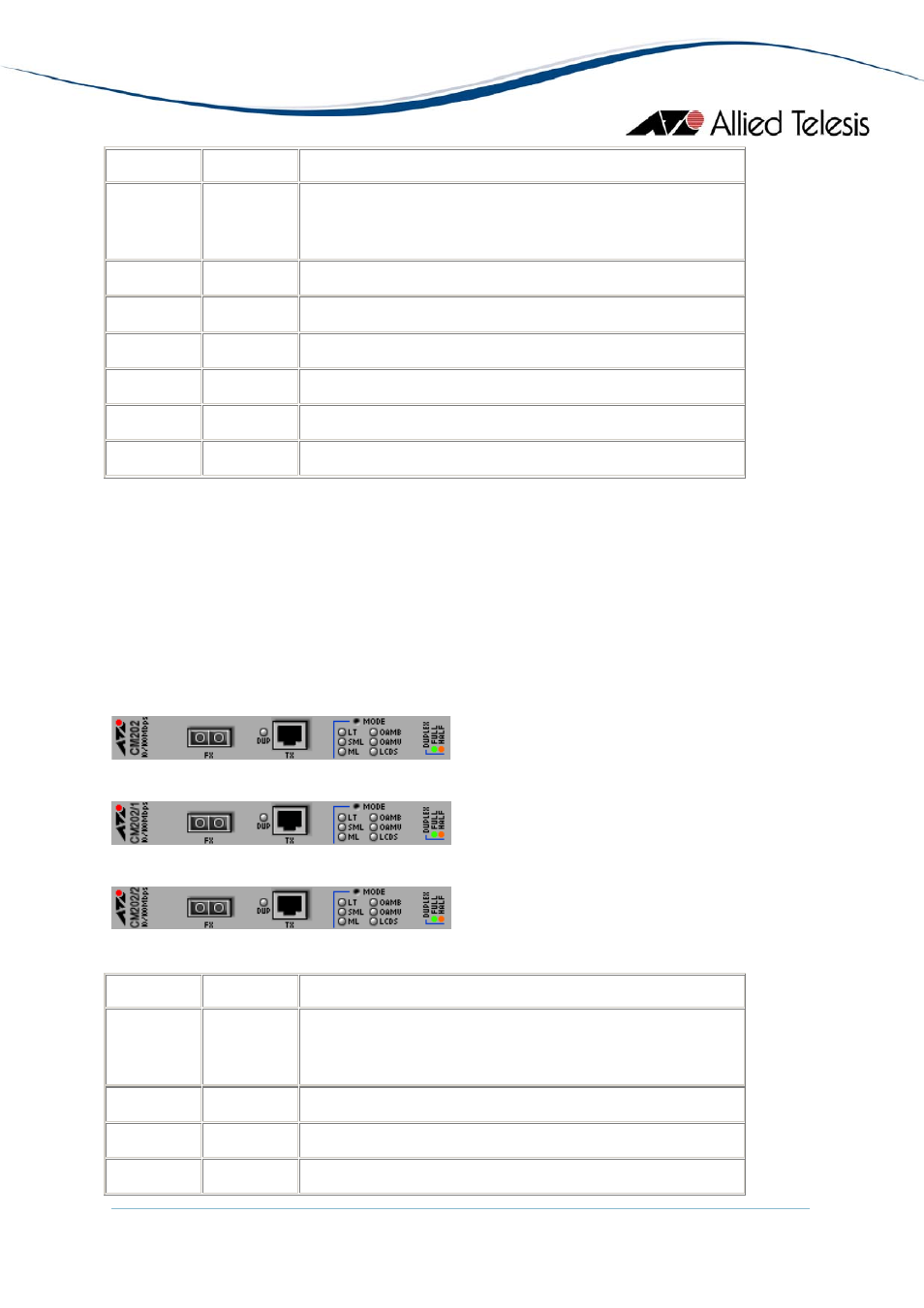

AT-CM202 and AT-CM202/x
AT-CM202: 10/100TX to 100FX (SC, 2km, MM)
AT-CM202/1: 10/100TX to 100FX (SC, 15km, MM)
AT-CM202/2: 10/100TX to 100FX (SC, 40km, MM)
LED State Description
DUP
Green
Orange
The port is operating in full-duplex mode.
The port is operating in half-duplex mode.
LT Green Link Test is enabled
SML Green Smart Missing Link is enabled
ML Green Missing Link is enabled
