AlliedView™-EMS 4.0.3 Device Management Guide

Page 10 of 468

Port

Right clicking on a port opens a pull-down menu specific to the device. Selecting

a menu item opens another window and lets you view and edit MIB information

related to the port. You can also access the same menu from the menu bar.


RS-232 Terminal Port

Right clicking on an RS-232 port opens a pull-down menu and lets you choose how

to log into the agent. Depending on the managed device, choose Telnet or WEB

Browser.


Reset Button

Right clicking on a reset button opens a pull-down menu with an option that allows

you to reset the device. (Not available on some devices.)

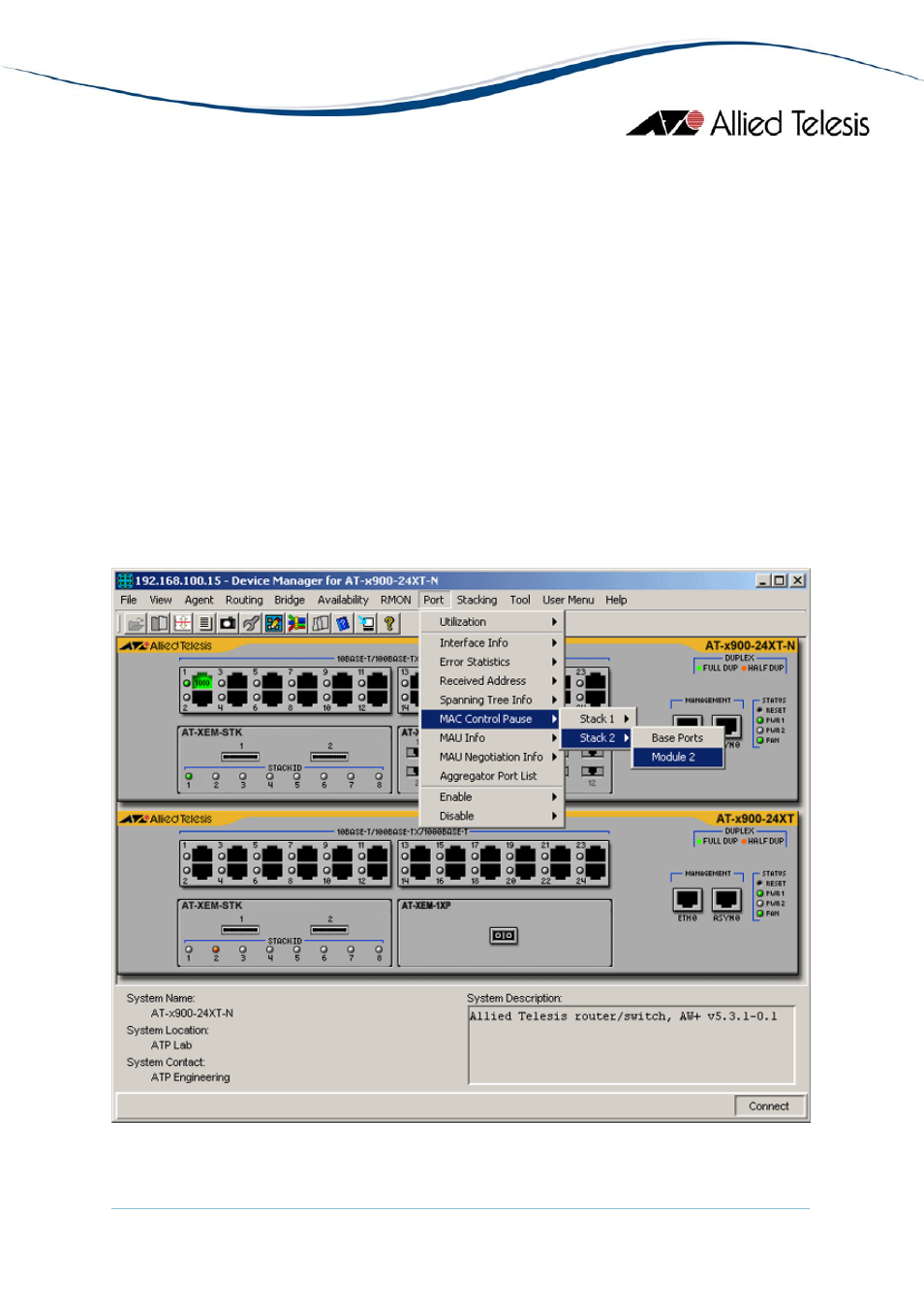

Menu for stacked devices

If the target is a stacked device, some menus have extra sub items to specify a single device

in the stack.

Module submenu
