AlliedView™-EMS 4.0.3 Device Management Guide

Page 315 of 468

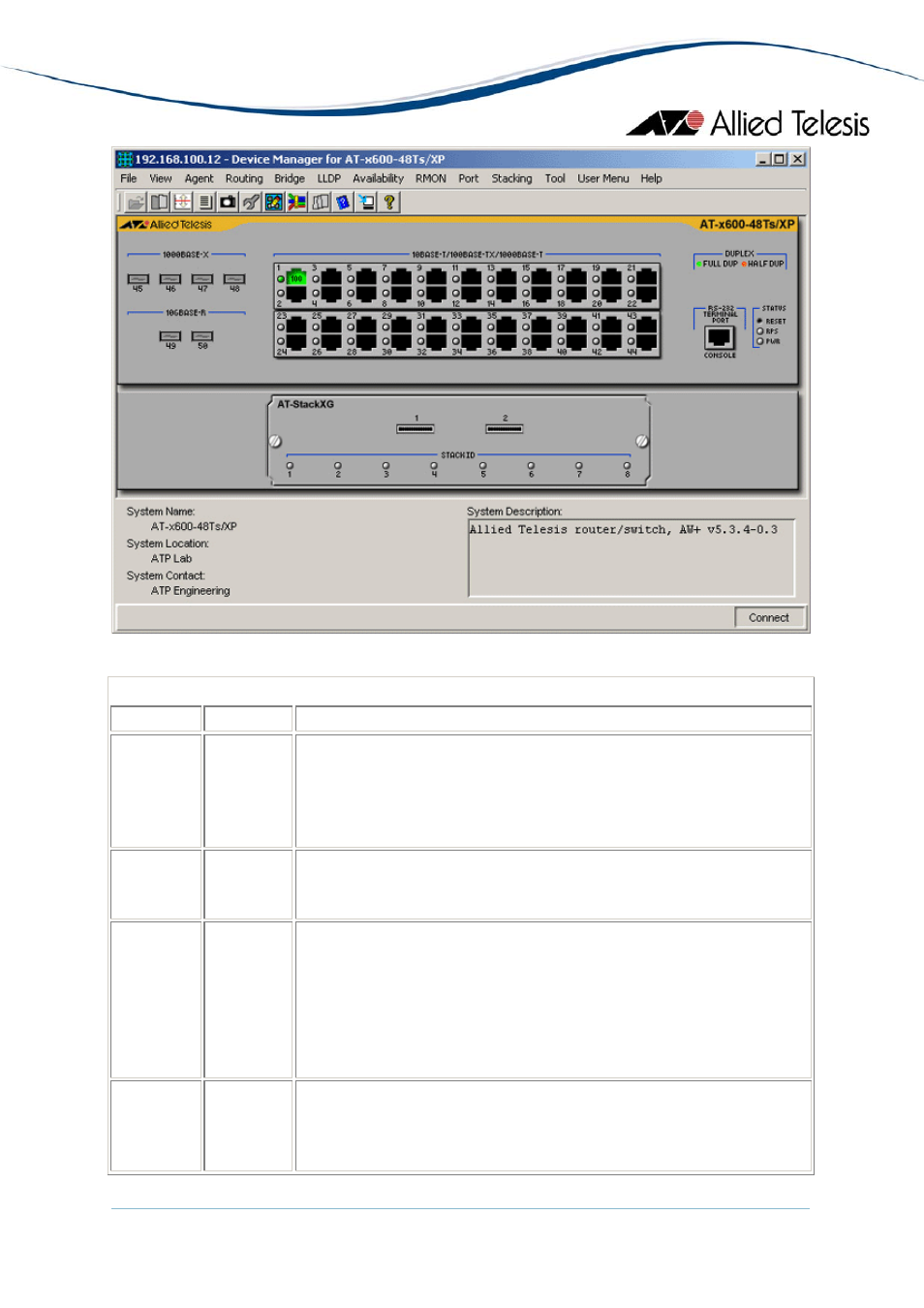

AT-x600-48Ts/XP

Device Manager LEDs for the AT-x600 Series

LED

State

Description

PWR Green

Gray

The Power Supply Unit (PSU) is installed and functioning in the

PSU bay.

The Power Supply Unit (PSU) is either not installed or not

functioning in the PSU bay.

DUPLEX Green

Orange

The port is operating at full duplex.

The port is operating at half duplex.

RPS Green

Gray

Orange

An optional redundant power supply is connected to the switch

and is turned on.

There is no redundant power supply connected to the switch.

An optional redundant power supply is connected to the switch

but is turned off.

STACK ID Green

Gray

The stacked unit is either the Stacking Master or the Backup

Master.
