MAESTRO Installation and Service Manual 83
Rack Space, Cooling, and Power Requirements
Rack Space, Cooling, and Power Requirements
For mechanical, environmental, and electrical specifications, see
Appendix A-Specifications.
Cabling Requirements

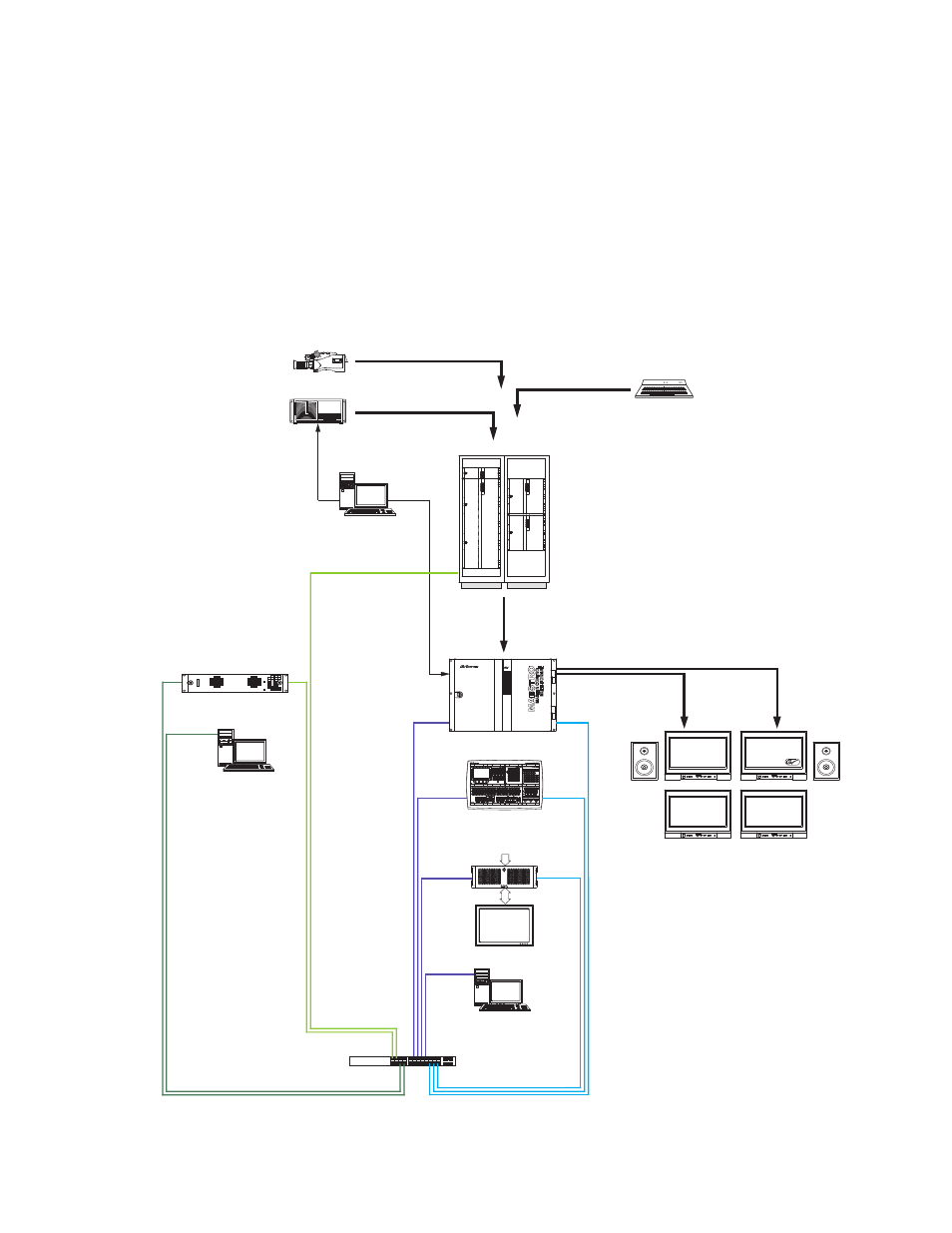

Figure 31. Single-channel HD Maestro, Encore Controller, and Concerto Router
Graphics
Generator
Maestro
Control LAN
Automation computer using
Maestro automation protocol
PHILIP S
Video and audio sources
Encore-controlled video and audio router
A/B video and audio
Key/Mix video and audio
Serial
Video server
Studio
Key and fill signals
Maestro Frame
Hardware Control Panel
Maestro Touch Screen
Pst & Pgm video
(optional)
Video & data
Encore Server
Maestro
Facility LAN
Encore EN2
(Control) LAN
Encore EN1
(Facility) LAN
Deployment PC
Encore Control System
Switch w/4 VLANs
Pst Pst
Video and audio
Pgm Pgm
CF1 CF1 8384_00 CF2 CF2
