MAESTRO — Installation and Service Manual 383

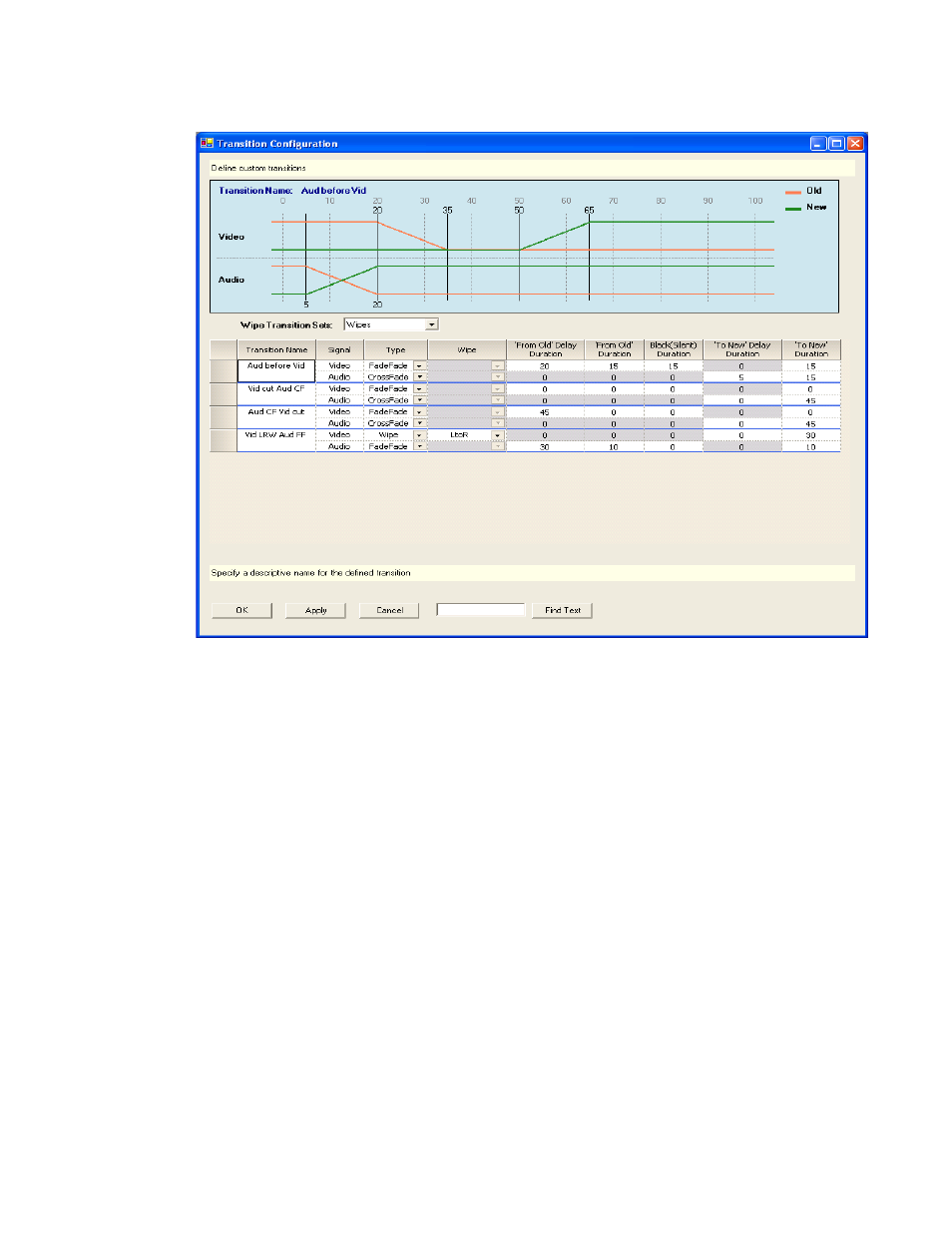

Figure 278. Transition Configuration Table
Wipe Transition Sets Drop-Down List
A wipe set may be selected for use in video signal transitions if one or more
wipe transition sets have been defined. The defined sets are displayed in
the drop-down list box under the graphical display area.
Transition Name
Enter a descriptive name in this field that defines the actions performed by
the named transition. In the example highlighted in
Figure 278 , the name
of the first transition is “Aud before Vid.” This transition will switch the
audio from the old source to the new source before beginning the video
transition.
Signal
The transition parameters for video and audio signals are defined sepa-
rately. Video parameters are defined in the upper section of each transition
definition. Audio parameters are defined in the lower section.
