MAESTRO Installation and Service Manual 219
6th Step: Input-based Sets
Source Name
Select the Mnemonic of the input that is to be indexed from the drop-down
list. This name was defined in the input Set (
Figure 102 ).
Automation Source Number
Enter an index number for the source (The rage is 1-65535). The automation
source number must match the index number assigned to the same source
in the automation system.
Quick Pick
This screen uses a table to assign Input Set sources to the five Quick-Pick
buttons on the control panel.
The set is assigned to a channel using the Channel Setup table, which is
described in the
Channel Setup section.
Dependencies
The Input set Mnemonics under the Input section must be defined to con-
tinue with this step.

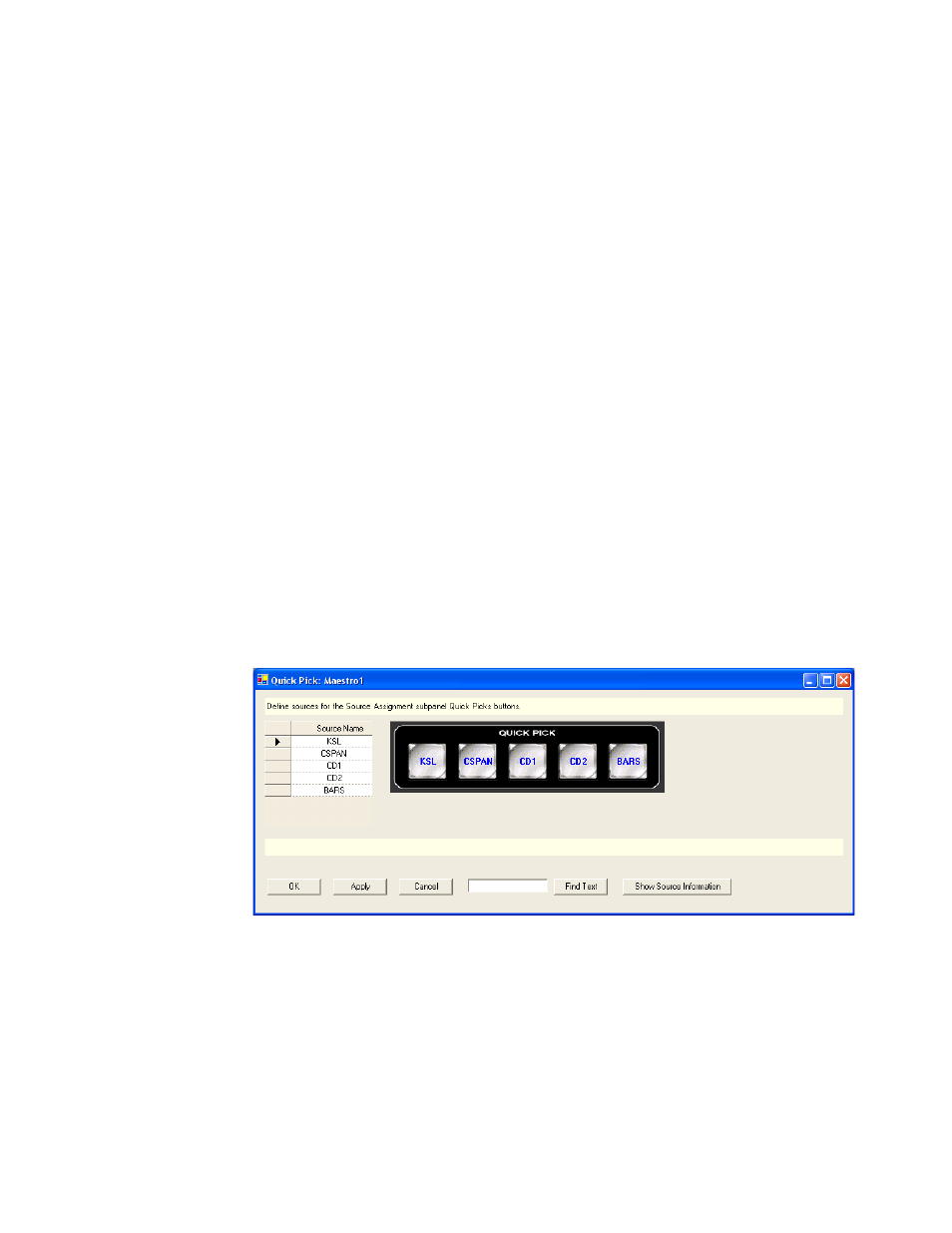

Figure 121. Quick Pick Table (Example)
Source Name
Select an input Mnemonic for each Quick-Pick button (from page 191 ).
Note Quick Pick selections should be commonly used sources which are not Fixed
Assignment sources in the Button Definition Set.
