MAESTRO — Installation and Service Manual
373
DVE Board Installation
Special attention must be made to avoid damaging the R1 resistor while
installing the DVE board. The R1 resistor is located close to the mounting
screw for the DVE board. If the resistor is damaged, the board will not start.

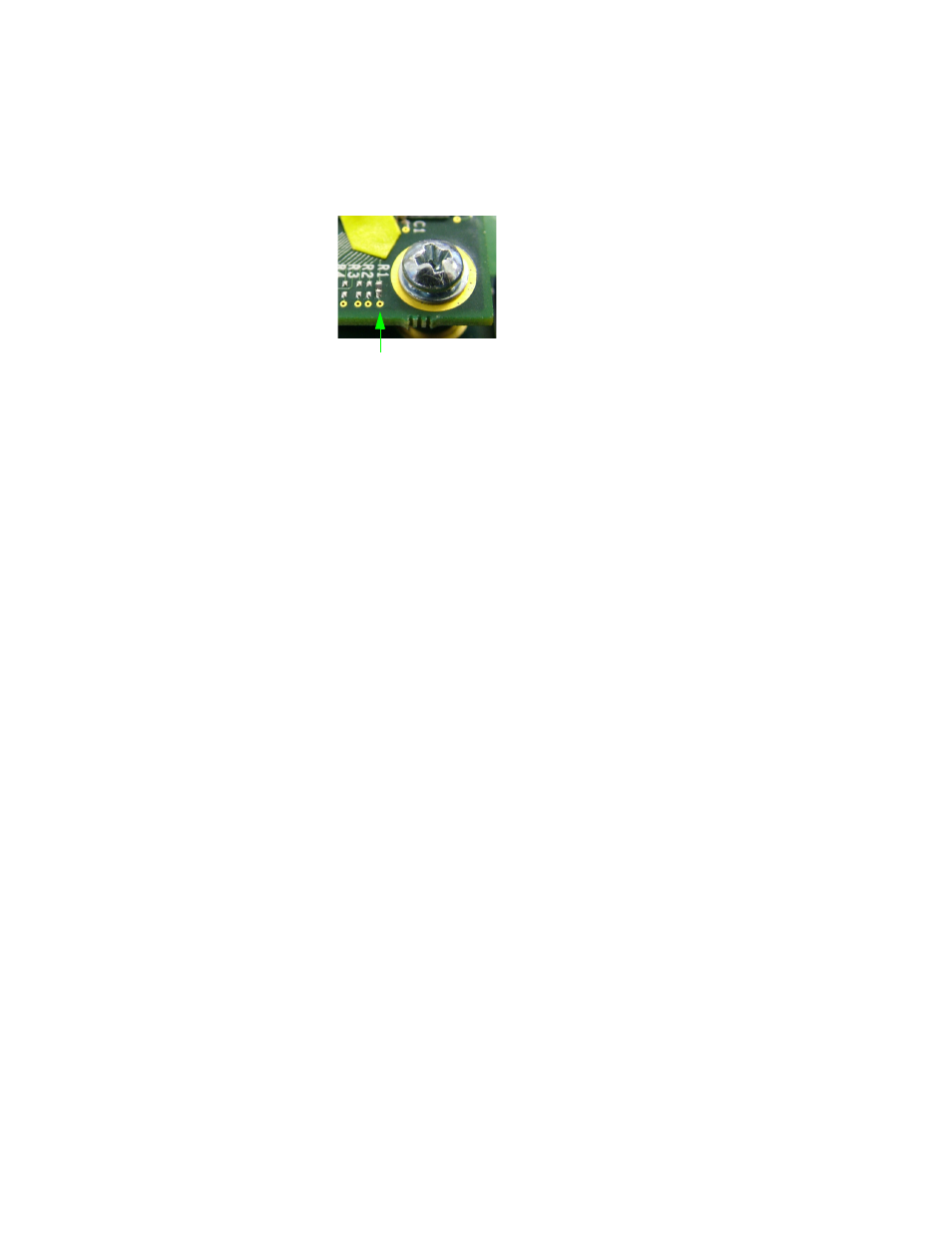

Figure 269. R1 Resitor Location
R1 Resitor Location
