352 MAESTRO — Installation and Service Manual
Section 10 — Channel Branding Configuration

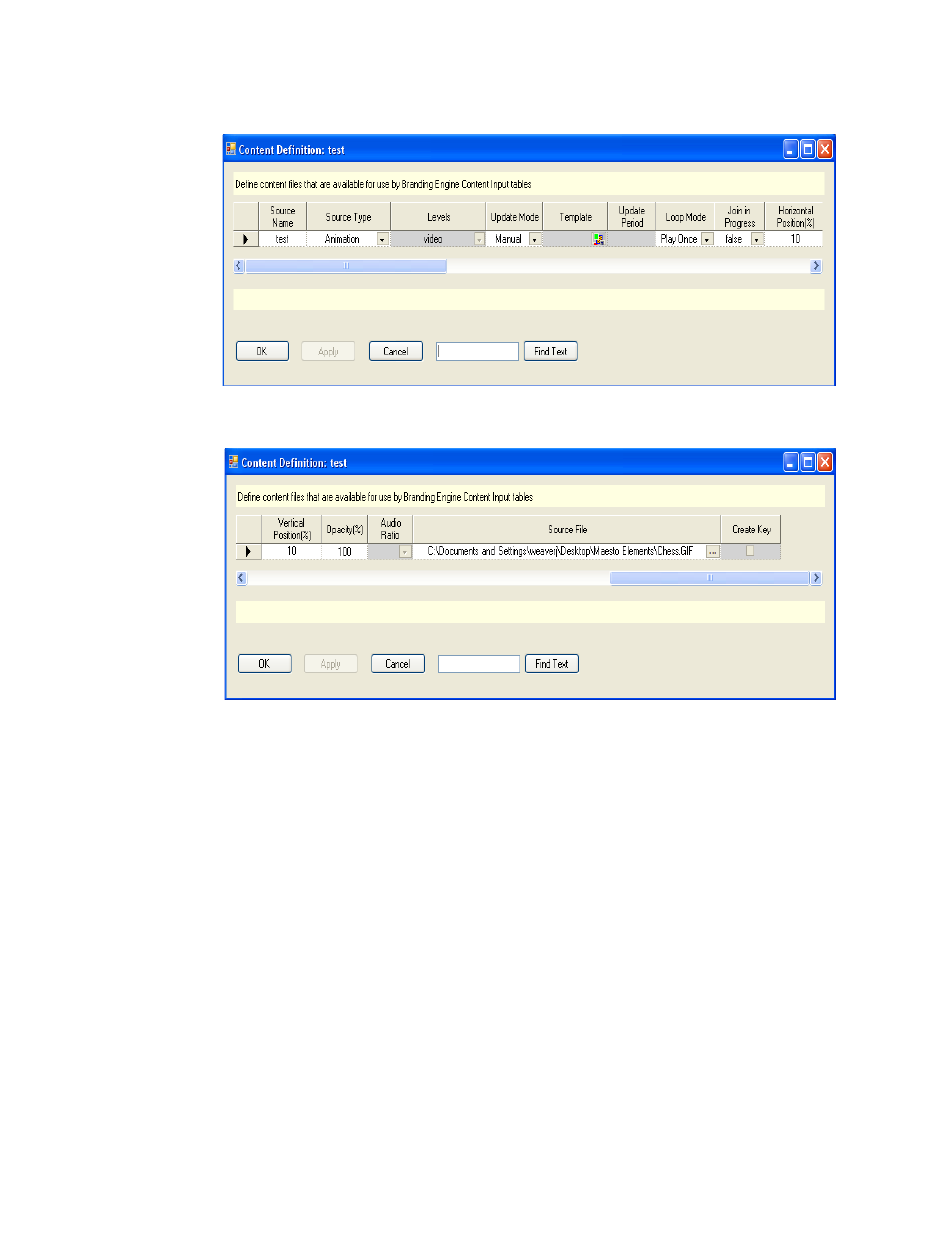

Figure 248. Branding Content Definition Table - Part 1
Figure 249. Branding Content Definition Table - Part 2
Note The original images must be in the proper resolution, size and aspect ratio for
the intended usage in either an SD or HD channel. Maestro does not do any
resizing or aspect ratio conversion.
When defining branding content, the following information is entered in
the Content Definition tables.
Source Name
Identifies the branding element. This name will appear in the Input table
source selection drop-down list.
