MAESTRO — Installation and Service Manual 389
vated by automation. Figure 282 shows the assignment of transition asso-
ciation numbers 10-13 to the four custom transitions in the above examples.
Note The standard transitions (Cross-Fade, Fade-Cut, Cut-Fade and Fade-Fade)
have static transition association numbers (0-3) which may not be changed
or reassigned to configured transitions. The standard transitions and their
association numbers are grayed out and cannot be changed.

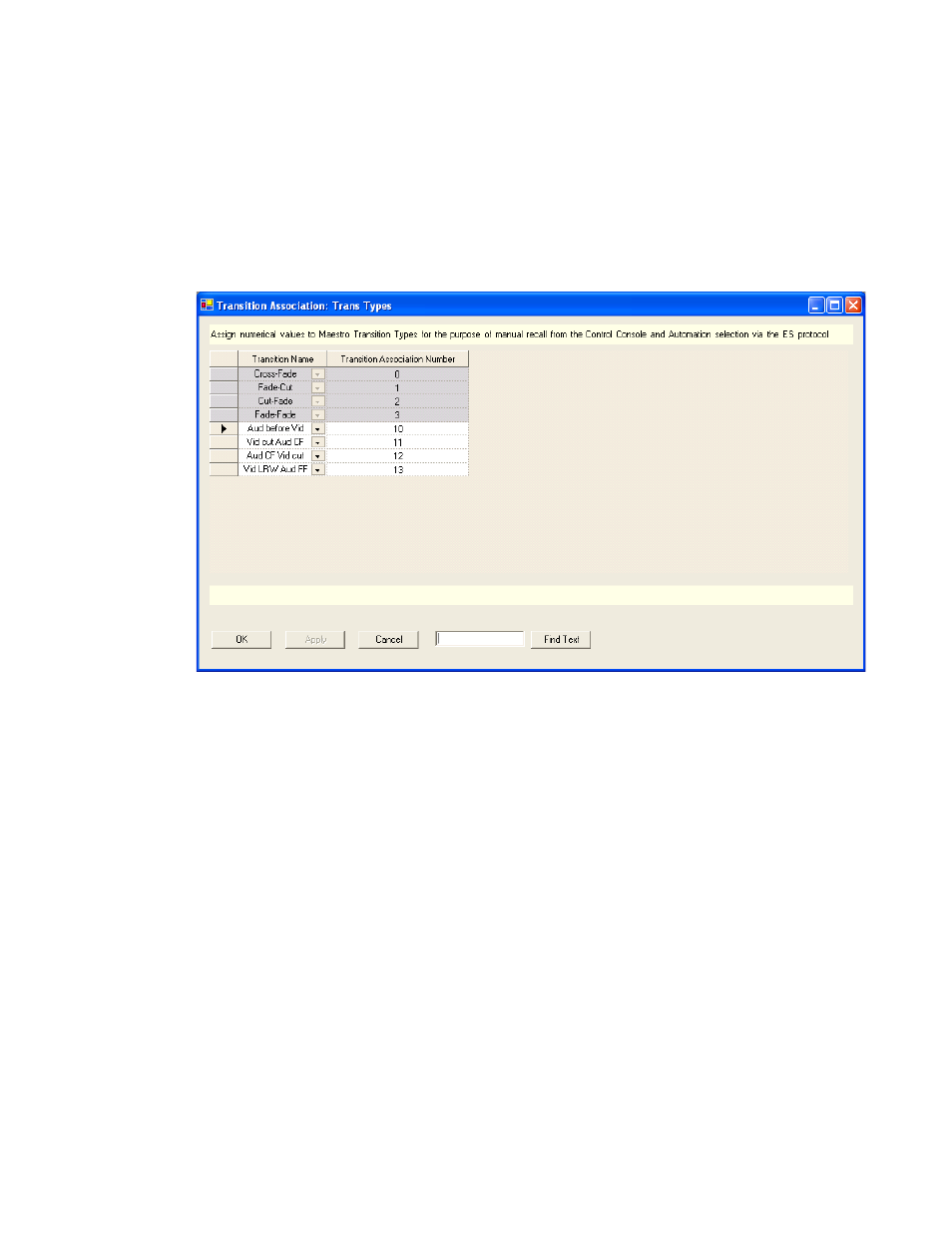

Figure 282. Transition Association Table
In order to make configured transitions available for user activation from
the control panel, the preferred Transition Association Set for each channel
must be selected in the Channel Setup table.
Note It is possible to define multiple Transition Association Sets. A particular con-
figured transition may be included in more than one Transition Association
Set. If this is the case, it is possible that the same configured transition may
have a different Transition Association Number in each set in which it is
included. For example, the configured transition “Aud before Vid” may be
number 10 in the “Trans Types” set, as seen in
Figure 282 , and number 99 in
another set.
VBI PassThrough
You can decide which Vertical Blanking Interval (VBI) lines should pass
through to Maestro output and which should be blocked. These configura-
tions are Video Standard dependent.
