Section 1 — System Overview
Hardware Control Panel
The Maestro hardware control panels are available in two standard ver-
sions: the MAE-4X2STD-CP (shown in
Figure 7 ) and the MAE-5X2STD-CP.
The MAE-5X2STD-CP provides space for a second MAE-KEY-CP Keyer
Control Sub Panel (described below) or other optional sub panels which
may be added at a later time.

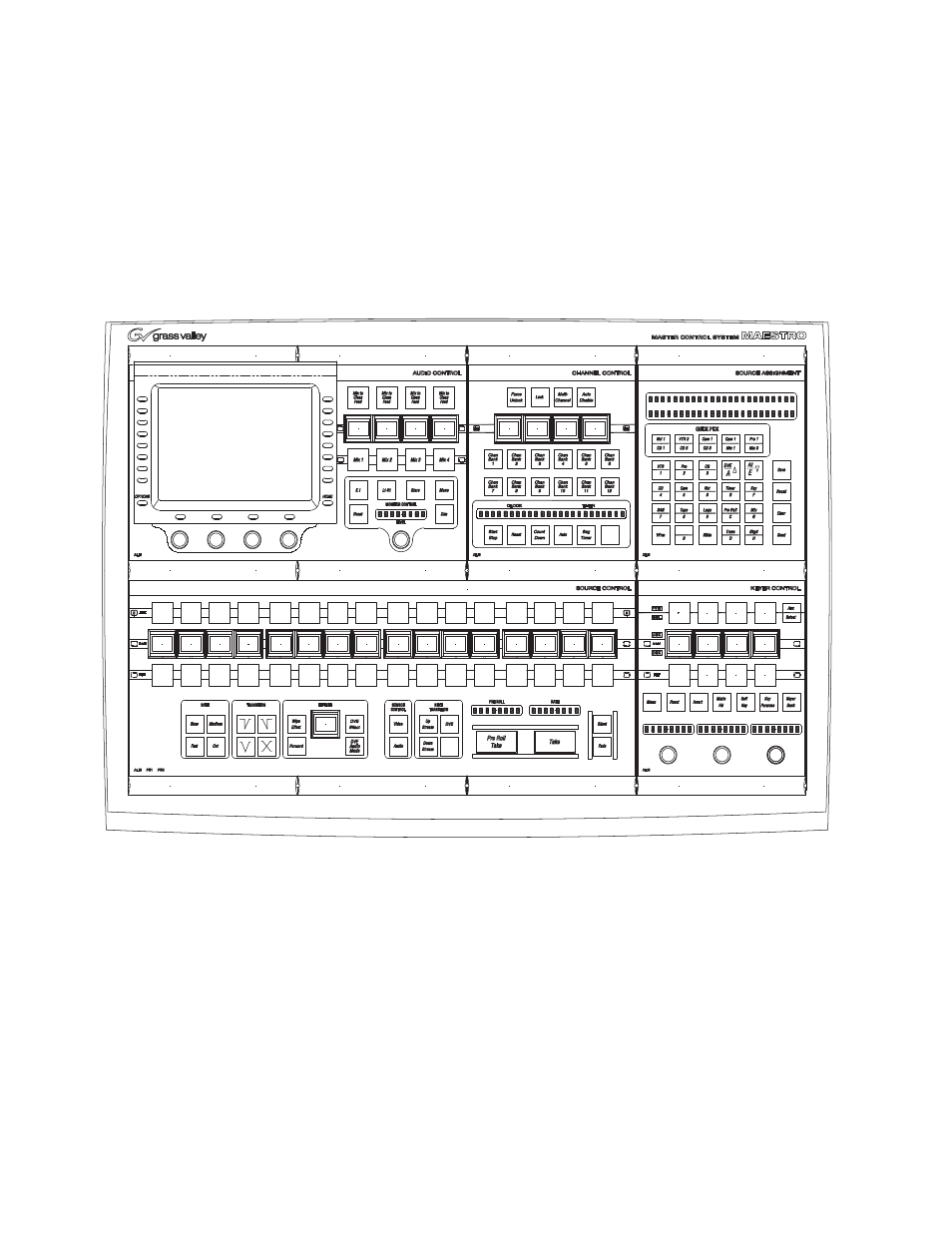

Figure 7. MAE-4X2STD-CP Hardware Control Panel
The hardware control panel can be used to select video and audio sources
for live transmission. The panel can be used for manual intervention in
systems that are normally controlled by an automation computer or as the
primary on-air control device.
Machine control commands must currently be provided by the facility
router control system (Encore, Jupiter, etc.) or by the automation computer.
Each sub panel is described in the following sections.
